OFM 195 - Manual

L
8x22 mm Screw
3 Units
K
6x30mm Screw
4 Units
P
10.5x24mm Plastic Washer
4 Units
M
8x18mm Washer
3 Units
N
6x16mm Washer
4 Units
O
6.5x18mm Washer
6 Units
I
6x20mm Screw
4 Units
J
6x25mm Screw
4 Units
A
Chair Back
1 Unit
B
Chair Seat
1 Unit
C
Seat Mechanism
1 Unit
D
Chair Base
1 Unit
E
Chair Arm
2 Units
F
Casters
5 Units
G
Gas Lift
1 Unit
H
Telescopic Bellows
1 Unit
Q
Allen Wrench
1 Unit
Assembly Notes:
During assembly, hand tighten screw only when all screws
are in place, you may then tighten all screws completely.
CAUTION:
1. Do not use this chair as a step ladder.
2. Check for loose screws and tighten them every 6 months.
Model 195
Ergonomic Management Chair
WEIGHT CAPACITY: 250 lbs.

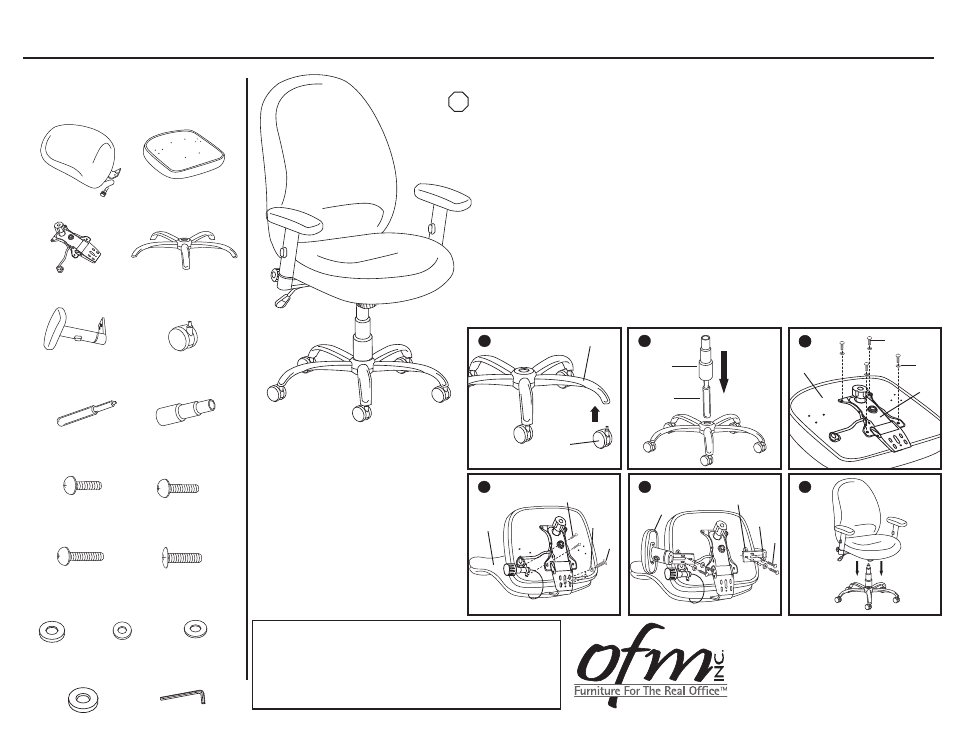

Parts Listing
STOP
Assembly Instructions
Tools Needed: Phillips Head Screwdriver
Please read all instructions before assembly.
Step 1: Insert Casters (F) into 5-star Chair Base (D).
Step 2: Insert Gas Lift (G) into Chair Base (D), and cover with Telescopic Bellows (H).
Step 3: Attach Seat Mechanism (C) to bottom of Chair Seat (B) using 6x20mm Screw (I)
and 6x16mm Washer (N). Tighten using Allen Wrench (Q).
Step 4: Attach Chair Back (A) to Chair Seat (B) using 8x22mm Screws (L) and
8x18mm Washer (M). Tighten using Allen Wrench (Q). Attach lumbar knob on
Chair Back (A) to bottom of Chair Seat (B) using 6x25mm Screw (J).
Step 5: Attach Chair Arms (E) to bottom of Chair Seat (B) by placing 10.5x24mm
Plastic Washer (P) between the Chair Seat and the Chair Arms (Two on each side
under the holes closest to the side of the chair). Then insert 6x30mm Screws (K)
through 6.5x18mm Washers (O) and into the holes on the Chair Arm (E).
Tighten using Allen Wrench (Q).
Step 6: Place Chair Seat (B) onto top of Gas Lift (G) and press down firmly on chair to secure.
919-362-4765 (fax)
www.ofminc.com
161 Tradition Trail Holly Springs, NC, 27540
800-520-7471 (voice)
919- 303-6389 (voice)
[email protected]
03.29.2010
1
F
D 2
G
H
3 I
N B
C
3
6 4
J
A
M
L
5
K
O
E
P
