OFM 611 User Manual

Model 611, Ergonomic manager’s chair, Assembly instructions

background image

D

A

Chair Back

1 Unit

B

Chair Seat

1 Unit

C

Chair Base

1 Unit

D

Casters

5 Units

E

Gas Lift

1 Unit

F

Telescopic Bellows

1 Unit

G

Seat Mechanism

1 Unit

H

Chair Arms

2 Units

I

6x25mm Screw

10 Units

J

8x20mm Screw

4 Units

Assembly Notes:

During assembly, hand tighten screw only when all screws

are in place, you may then tighten all screws completely.
CAUTION:

1. Do not use this chair as a step ladder.

2. Check for loose screws and tighten them every 6 months.

Model 611

Ergonomic Manager’s Chair

WEIGHT CAPACITY: 250 lbs.

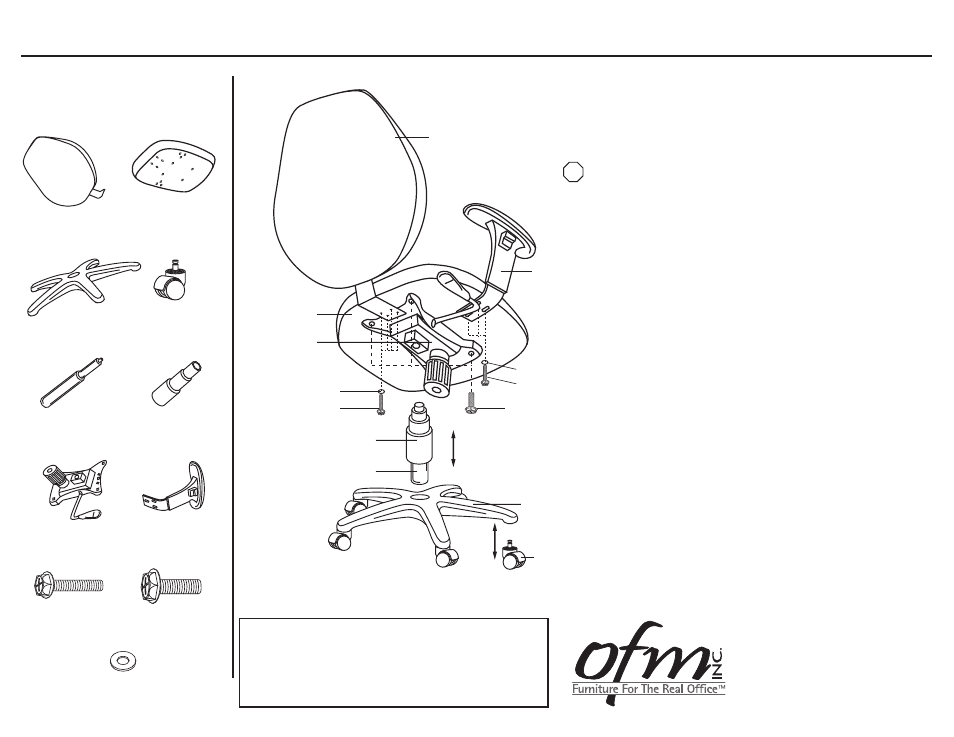

Parts Listing

STOP

Assembly Instructions

Tools Needed: Phillips Head Screwdriver

Please read all instructions before assembly.
Step 1: Insert Casters (D) into Chair Base (C).
Step 2: Insert Gas Lift (E) into the hole in the center of the

Chair Base (C) and cover with Telescopic Bellows (F).

Step 3: Place Chair Seat (B) upside-down on a level, non-

abrasive surface. Place Seat Mechanism (G) on Chair

Seat (B) and align the holes in the Mechanism (G) with the

holes in the Chair Seat (B).

Step 4: Insert 8x20mm Screws (J) through the holes in the Seat

Mechanism (G) and into the Chair Seat (B).

Step 5: Attach Chair Back (A) to Chair Seat (B) using Washers (K)

and 6x25mm Screws (I).

Step 6: Attach Chair Arms (H) to Chair Seat (B) using Washers (K)

and 6x25mm Screws (I).

Step 7: Carefully place Chair Seat (B) with attached Seat

Mechanism (G) onto the Gas Lift (E)

, aligning the hole in

the Seat Mechanism (G) with the Gas Lift (E).

Step 8: Carefully sit on chair to make sure the Gas Lift (E) is

properly inserted into the Base (C). Operate the gas lift

lever on the Seat Mechanism (G) to be sure unit is working.

919-362-4765 (fax)
www.ofminc.com

161 Tradition Trail Holly Springs, NC, 27540
800-520-7471 (voice)
919- 303-6389 (voice)
[email protected]

06.18.2010

K

Washer

10 Units

C

K

I

J

I

K

F

E

A

B

G

H
