Model oro200, Executive big & tall conference chair, Assembly instructions

background image

Product Web Page & Video

Assembly Notes:

During assembly, hand tighten screws only. When all screws

are in place, you may then tighten all screws completely.
CAUTION:

1. Do not use this chair as a step ladder.

2. Check for loose screws and tighten them every 6 months.

Model ORO200

Executive Big & Tall Conference Chair

WEIGHT CAPACITY: 400 lbs.

Parts Listing

919-362-4765 (fax)
www.ofminc.com

161 Tradition Trail, Holly Springs, NC, 27540
800-520-7471 (voice)
919-303-6389 (voice)
[email protected]

05.29.2013

G

Gas Lift

1 Unit

H

Telescopic Bellows

1 Unit

I

0.75” Screws

8 Units

J

1.25” Screws

4 Units

Allen Wrench

1 Unit

K

Arm Caps

8 Units

L

F

Seat Mechanism

1 Unit

E

Chair Arms

2 Units

STOP

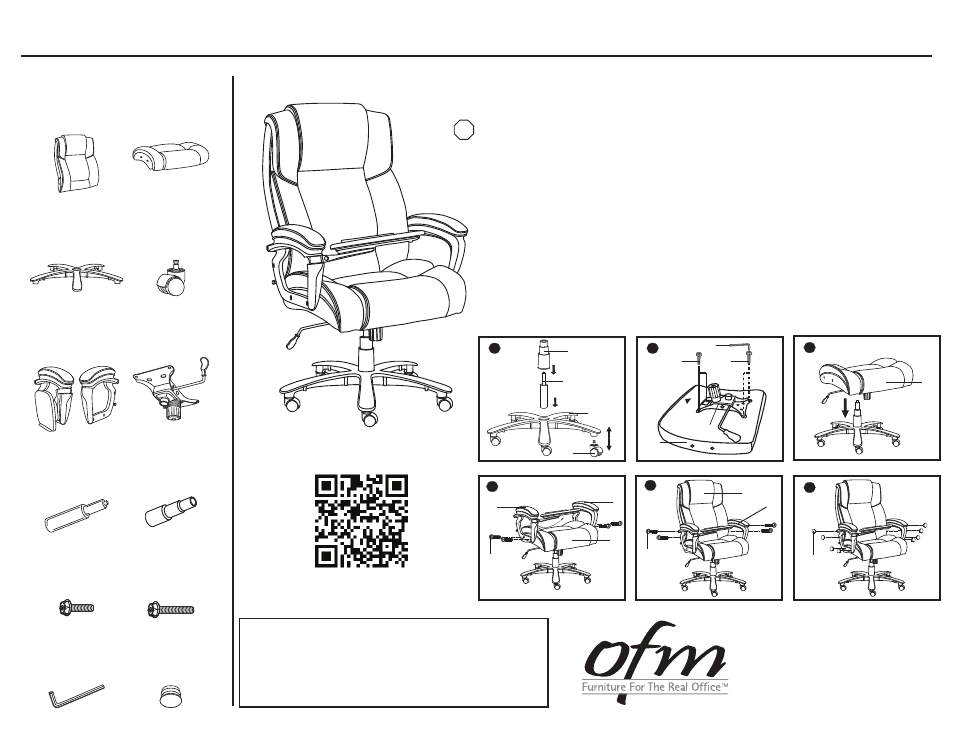

Assembly Instructions

Tools Needed: Allen Wrench - included

Please read all instructions before assembly.
Step 1: Insert Casters (D) into Chair Base (C). Insert Gas Lift (G) into Chair

Base (C) and cover with Telescopic Bellows (H).

Step 2: Attach Seat Mechanism (F) to the Chair Seat (B) with .75” Screws (I) at

back of seat and 1.25” Screws (J) at front of seat, using the Allen

Wrench (K) that is provided. Tension control knob should face front.

Step 3: Attach Chair Seat (B) to Chair Base (C) by inserting the top of the Gas Lift (G)

into the center hole of the Seat Mechanism (F), and press down firmly to secure.

Step 4: Attach Chair Arms (E) to Chair Seat (B) using .75” Screws (I) and Allen Wrench (K).

The tablet arm goes on the right side.

Step 5: Attach Chair Back (A) to Chair Arms (E) using .75” Screws (I) and Allen Wrench (K).
Step 6: Cover screw holes with Arm Caps (L).

D

Casters

5 Units

C

Chair Base

1 Unit

B

Chair Seat

1 Unit

A

Chair Back

1 Unit

4

B

E

I

6

A

5

L

E

I

E

1

H

G

2

B

3

J

J

K

B

F

D

C

front
