OFM 66510 - Manual

A
Table Top
1 Unit
E
10x35mm Screw
2 Units
B
Side Panel Legs
2 Units
C
Privacy Panel
1 Unit
D
Corner Leg Bracket
2 Units
H
Allen Wrench
1 Unit
I
Phillips Head Screw Bit
1 Unit
F
6x16mm Screw
4 Units
G
5x10mm Screw
4 Units
Assembly Notes:
During assembly, hand tighten screws only. When all screws
are in place, you may then tighten all screws completely.
CAUTION:
1. Do not use this table as a step ladder.
2. Check for loose screws and tighten them every 6 months.
Model 66510
Mesa Series Training Table
Parts Listing
919-362-4765 (fax)
www.ofminc.com
161 Tradition Trail Holly Springs, NC, 27540
800-520-7471 (voice)
919-303-6389 (voice)
[email protected]
01.15.2014
STOP

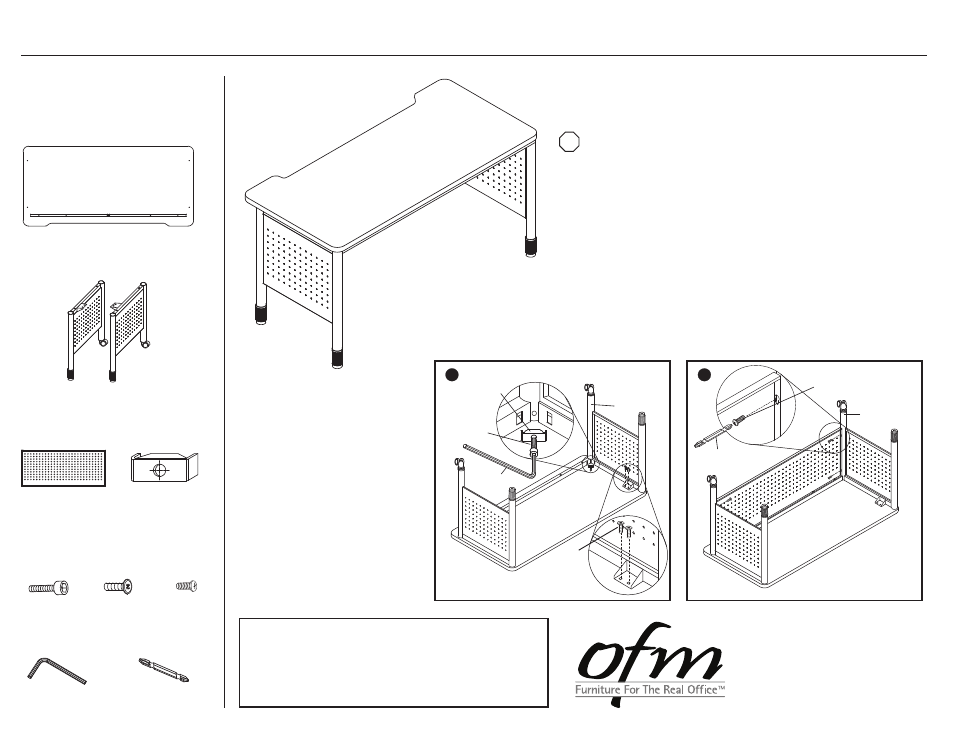

Assembly Instructions
Tools Needed: Phillips Head Screwdriver
Please read all instructions before assembly.
Assembly will require 2 people.
Step 1: Align Side Panel Legs (B) with the support rail on the underside
of the Table Top (A). Place Corner Leg Bracket (D) in holes on
support rail, and insert 10x35mm Screw (E) through bracket and
into legs. Tighten using Allen Wrench (H). Align holes on Side
Panel Leg bracket with holes on the underside of the Table
Top (A). Insert 6x16mm Screws (F) through bracket and into
top, and secure using Phillips Head Screw Bit (I).
Step 2: Attach Privacy Panel (C) to Side Panel Legs (B) by inserting
5x10mm Screws (G) through sides of Privacy Panel (C) and
into side of Side Panel Legs (B).
1
F
A
E
B
D
H
2
A
B
C
G
I
