Assembly Notes:

During assembly, hand tighten screws. Only when all screws

are in place, you may then tighten all screws completely.
CAUTION:

1. Do not use this chair as a step ladder.

2. Check for loose screws and tighten them every 6 months.

12.16.2014

Parts Listing

Base Chair included - 1 Unit

3090

Armless 90 Degree Lounge Chair Leg Installation & Ganging Instructions

919-362-4765 (fax)

[email protected]

161 Tradition Trail, Holly Springs, NC, 27540
www.ofmfurniture.com
800-520-7471 (voice)
919-303-6389 (voice)

STOP

Assembly Instructions

Tools Needed: Allen Wrench (provided), Screw Driver

Note: The front leg is rounded.

The back leg is angled.

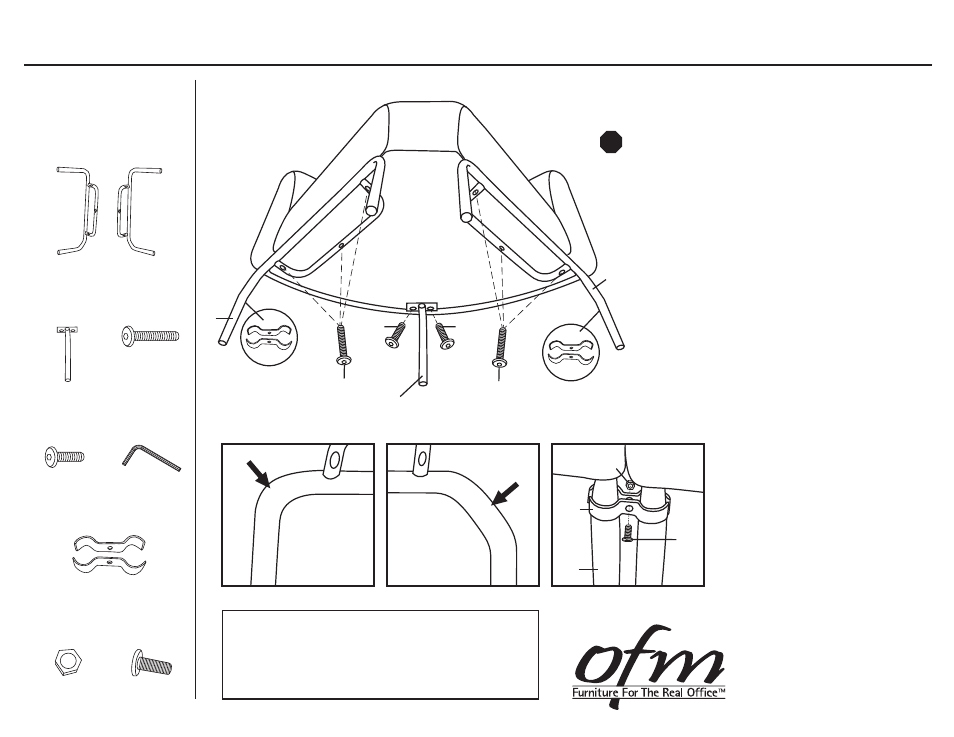

Step 1: Remove pre-inserted Screws (C) and (D) from the

bottom of the Chair.

Step 2: Align the holes in the Legs (A) with the corresponding

holes in the bottom of the chair. Attach by

inserting 8x50mm Screws (C) through Legs (A) and

into the Chair using an Allen Wrench (E).

Note: Make sure angled leg is to the back of

the chair.

Step 3: Attach Center Support Leg (B) to the bottom

of the Chair by aligning the holes in Center

Support Leg (B) with the corresponding holes

in the Chair. Insert 8x25mm Screws (D) through

Center Support Leg (B) and into the Chair using

an Allen Wrench (E).

Step 4: If applicable, attach Ganging Bracket (F)

to Legs (A) using Ganging Bracket Screw (H)

and Ganging Bracket Nut (G). Tighten

using Screw Driver.

A

F

Ganging Brackets

2 Sets

E

Allen Wrench

1 Unit

H

Ganging Bracket

Screw

2 Units

G

Ganging Bracket

Nut

2 Units

D

8x25mm Screw

2 Units

A

Legs

2 Units

Front

Leg is

Rounded

Back

Leg is

Angled

C

C

F

A

F

G

H

B

Center Support Leg

1 Unit

B

F

A

C

8x50mm Screw

6 Units

D

D
