7
Item Part Number Name Quantity
P02B 106602 UC5 NETWORK 12 PIN PLUG (A-KEY) 2
P03 105882 UC5 NETWORK 6 PIN PLUG 5
P04 106027 UC5 NETWORK 2 PIN RECEPTACLE (PLUGGED) 2
V01 44963D VALVE BLOCK ASSEMBLY 2 STATION CC/LS PROP DT 4 BOLT 1

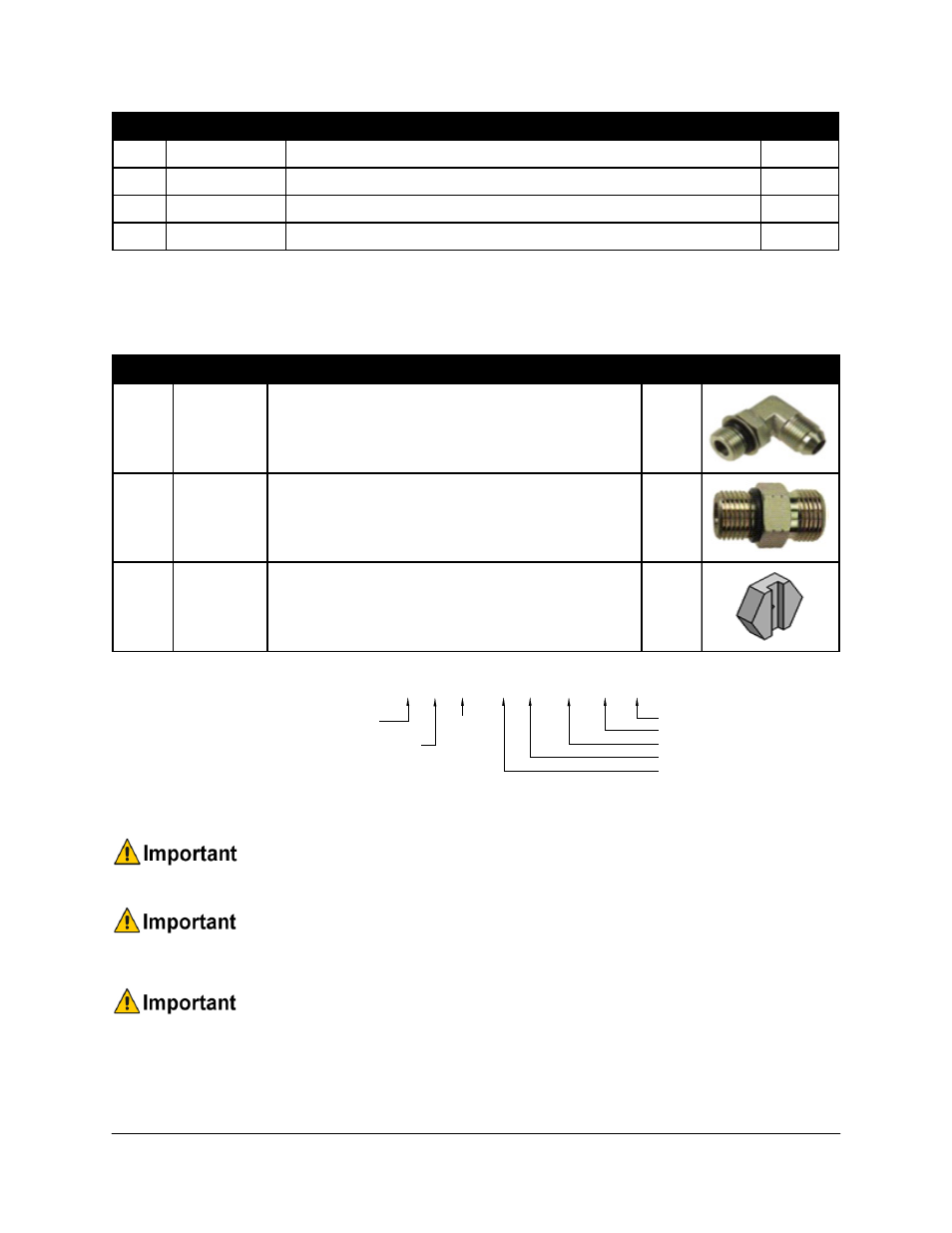

4.4 Hydraulic Fitting Kit Details (P/N: 44865-15)
Item Part Number Name Quantity Picture
F04 103071 MALE 90 DEGREE ADAPTER - 8MB 6MJ90 2
F05 103312 MALE ADAPTER - 6MB-6MJ 6
F08 44928 ORIFICE INSERT .026 IN ONE WAY 2
6 M B - 6 M OR X 90
SIZE IN
1/16
TH'S
GENDER: MALE
OR FEMALE
90 ° ANGLE
SWIVEL
TYPE
GENDER
SIZE
TYPE:
B - ORB
J - JIC
OR - FLAT
FACE
P - PIPE
Fitting Name
Example:
Do not use high speed power tools/drills when installing hardware.
The use of dielectric grease is not recommended on any NORAC electrical
connections.
To ensure all stainless steel hardware does not gall or seize apply a light coating of
the supplied Permatex Anti-seize grease to all threaded parts upon installation.
Permatex Anti-seize lubricant is preferred, but other similar anti-seize products
may be used.
