10.3 HPZ / HAZ Valve Block Mounting

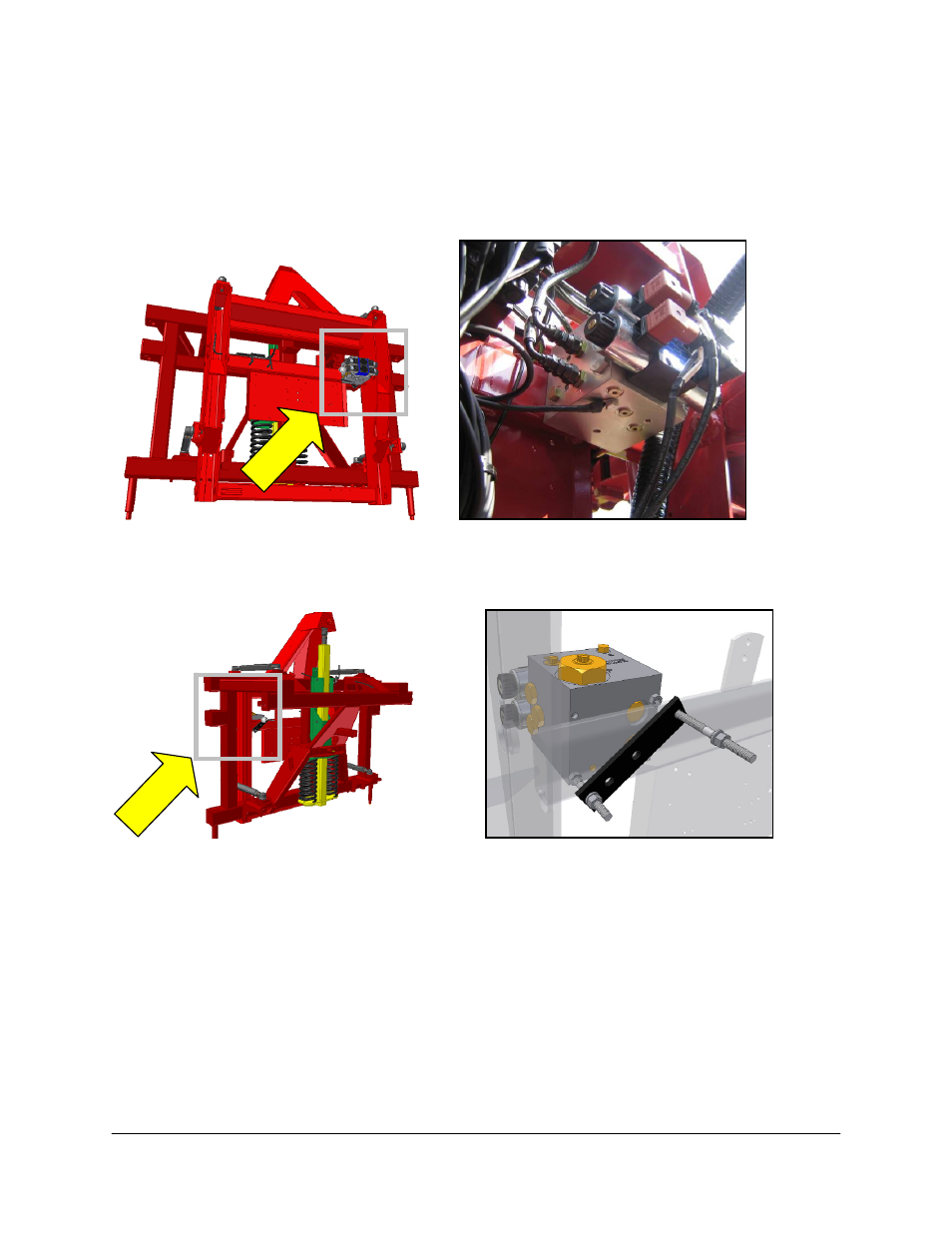

Mount the Valve block using the mounting plate and hardware as illustrated. Suggested
mounting location on the HPZ / HAZ center-part is shown in Figure 31.
Figure 31: Valve Mounting on HPZ / HAZ
Figure 32: Mounting Valve Block with Mounting Bracket and Hardware
