5. Unfold the sprayer over a flat, unobstructed area (i.e. no power lines…etc.).
6. Ensure all boom-fold operations are functional (place a check mark in boxes below).
7. Bring engine to field-operational RPM and record below.
8. Record the time (seconds) it takes for a full stroke for all boom functions. To ensure
repeatable measurements, take the average of 3 trials.
9. Not all sprayers will have the functions listed below in Figure 5.
Ensure the boom has sufficient travel so it does not contact the ground during
these tests.

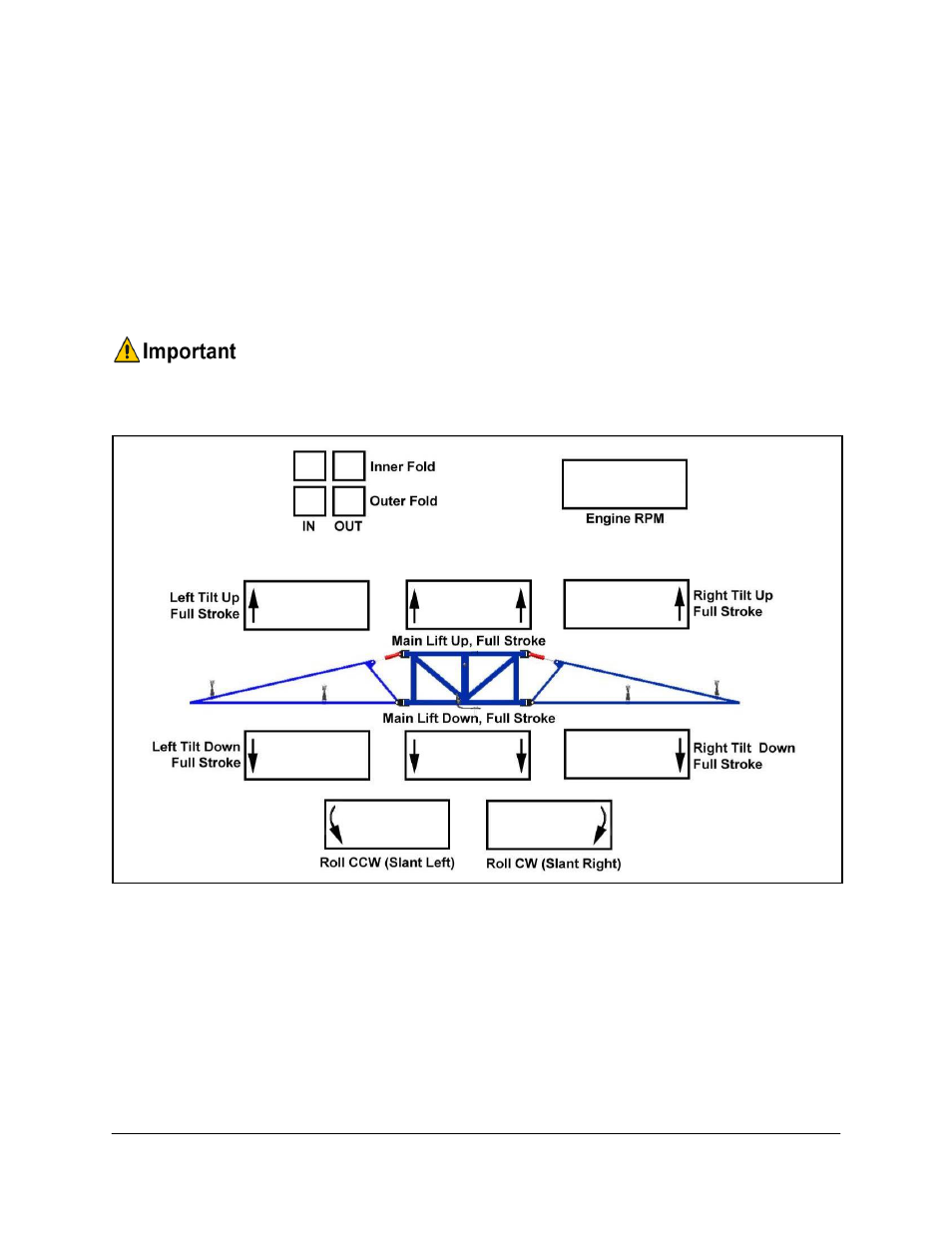

Figure 5: Pre-Install Boom Speeds
