4.6.2 Valve Mounting
1. Mount the NORAC valve (V01) on the

sprayer using the valve mounting
bracket (B10).

2. Screw the short side of the threaded

rods into the bottom of the valve block
at least 3/8". The valve mounting holes
are drilled and tapped 3/8 NC-1" deep.

3. Tighten the Hex nuts to hold the rods.

4. Put the mounting bracket on the other

side of the tube and tighten with the
spring washers and the Hex nuts.

5. Cut excess off the rods, if necessary.

If using bolts, the bolts should

thread into the valve block at
least 3/8". The valve mounting
holes are drilled and tapped 3/8
NC-1" deep. The rule of thumb

for bolt length is 1-1/2" longer
than the tube size.

You must ensure no hydraulic

components will interfere with

any sprayer parts or be pulled
tight at any time.

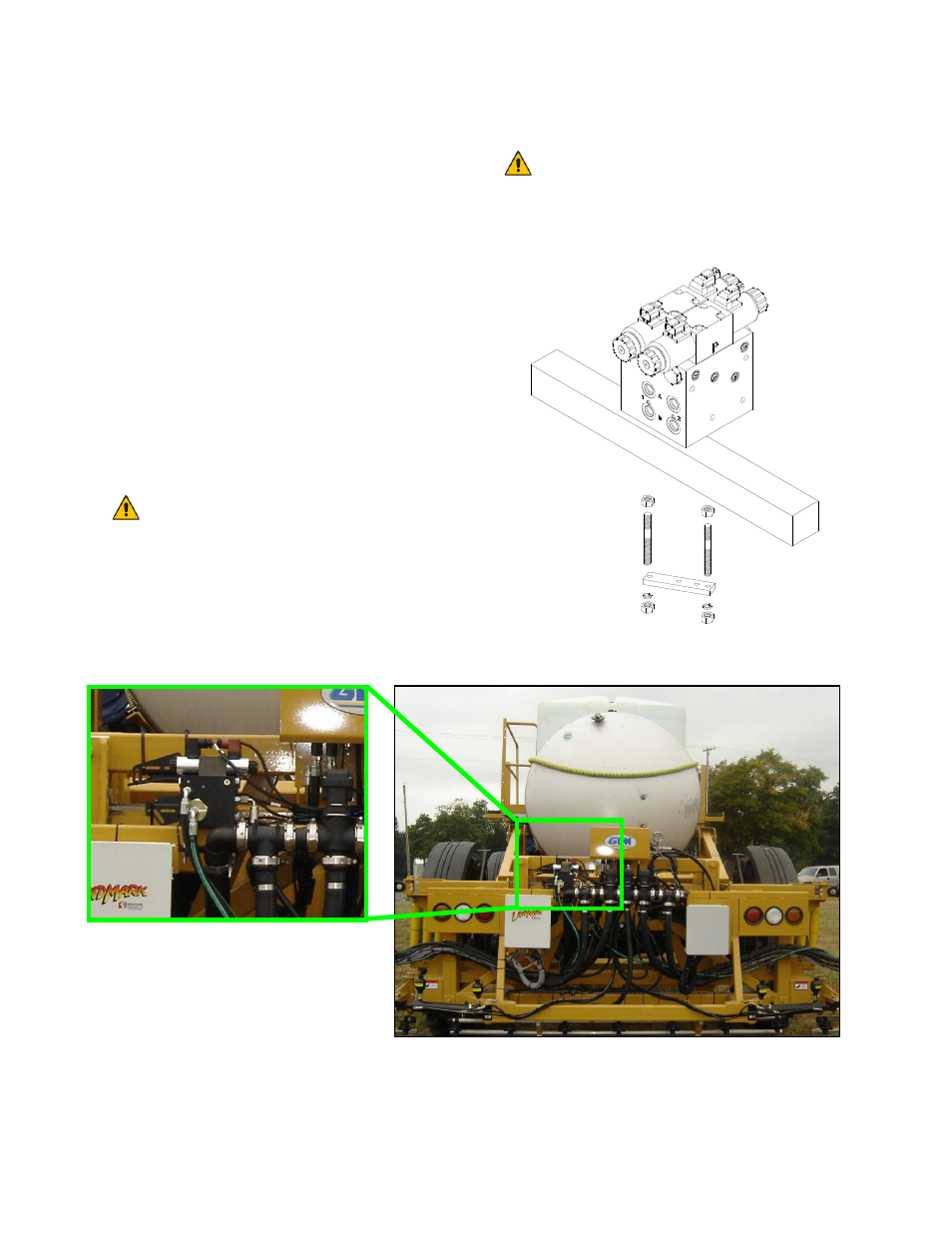

Figure 22: Valve Mounting Location

Figure 23: Example Mounting of Valve on GVM Prowler
