20

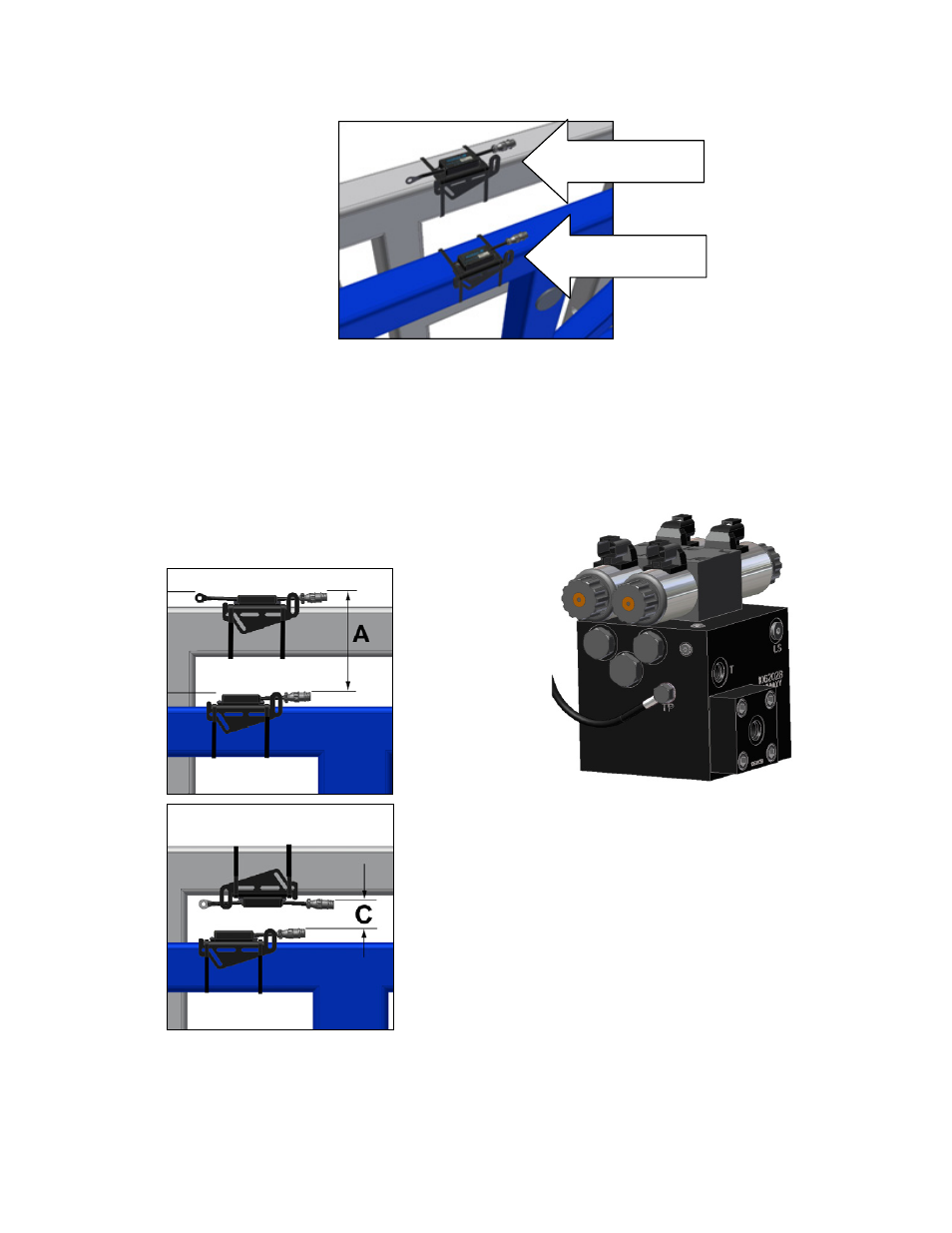

Figure 22: Boom and Chassis Roll Sensors Correctly Mounted
4.8 I NVERTED R OLL S ENSOR
M
OUNTING
If desired, the Roll sensor may be mounted
inverted, so long as the connector exits
towards the right-hand boom. Inverted
mounting may be used to optimize the
mounting criteria explained in Section 4.7.
4.9 T EMPERATURE PROBE
Fasten the temperature probe (E03) to the
UC4 valve block using the included 3/8x1/2”
bolt as illustrated in Figure 23.
Figure 23: UC4+ Valve Block with
Temperature Probe Installed
Figure 24: Inverted Roll Sensor
Mounting may be Applicable for
Optimal Performance
E04
E03
