16
4.6.1 Boom Frame Roll Sensor Mounting
1. Use the supplied hardware to mount the
boom frame roll sensor (E04) as shown in
Figure 17.
When mounting the boom frame roll sensor
follow these guidelines:
a) To prevent bending the bracket, ensure
bolts are placed as close together as
possible (minimize C in Figure 17).
b) Be sure to use the roll sensor without
the temperature probe (E04).
c) When the boom is centered (not rolled
over) the roll sensor should be level
with respect to the sprayer chassis.
d) It is best to mount the roll sensor to
the left hand trapeze link (when looking
from the rear of the sprayer).
e) The roll sensor AMP (circular)
connector MUST exit towards the
right hand wing (when looking from
the rear of the sprayer).

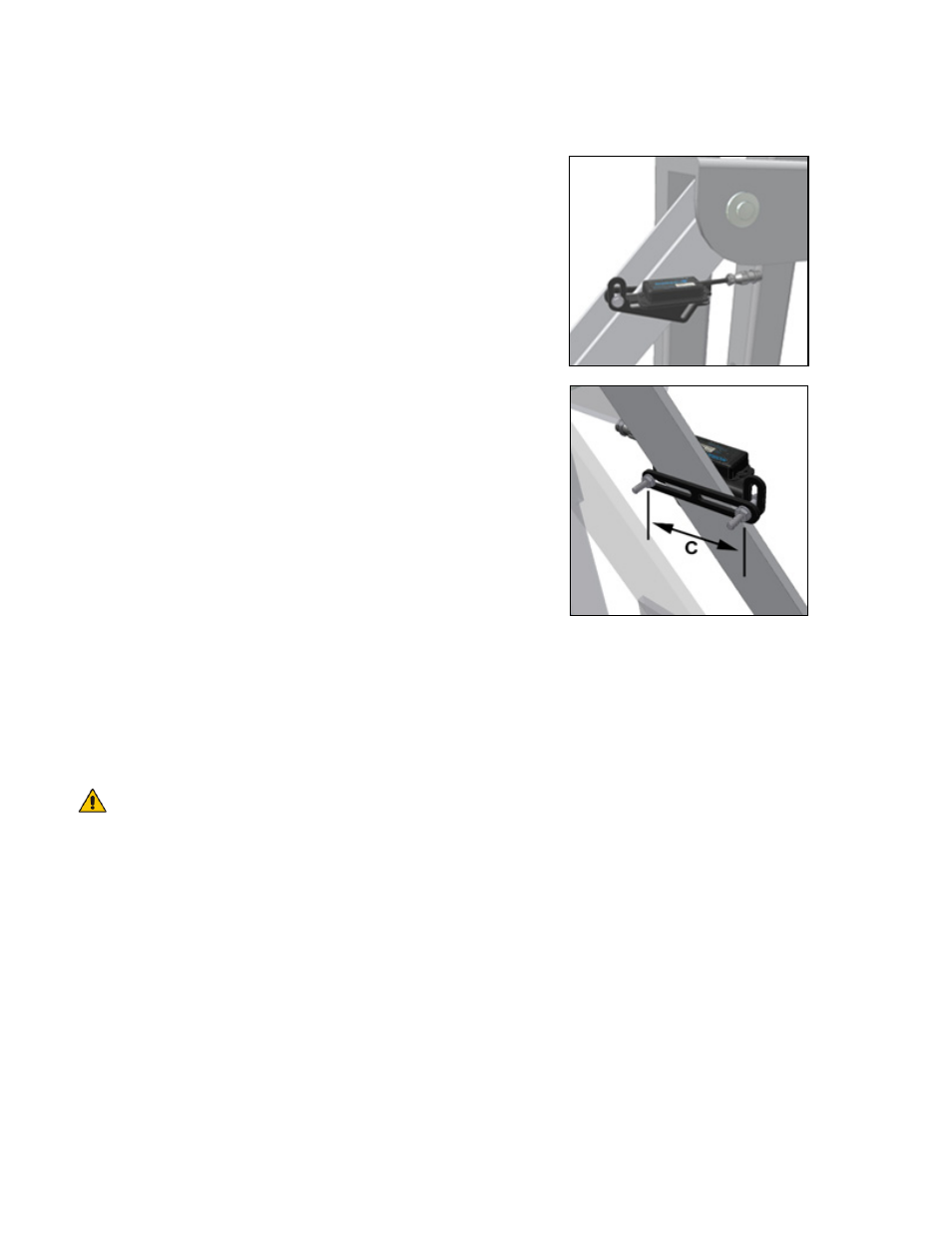

Figure 17: Boom Frame Roll Sensor
Mounted to a Trapeze Link
2. Cable-tie the sensor connector to the frame
with enough slack to allow the link to rotate.
Make sure the bracket does not
collide with any parts of the sprayer
when the boom rotates. Also ensure
there is enough slack to allow the roll
sensor to rotate.
