15
4.6 R
OLL
S
ENSOR
I
NSTALLATION
(T
RAPEZE
S
TYLE
B
OOMS
)

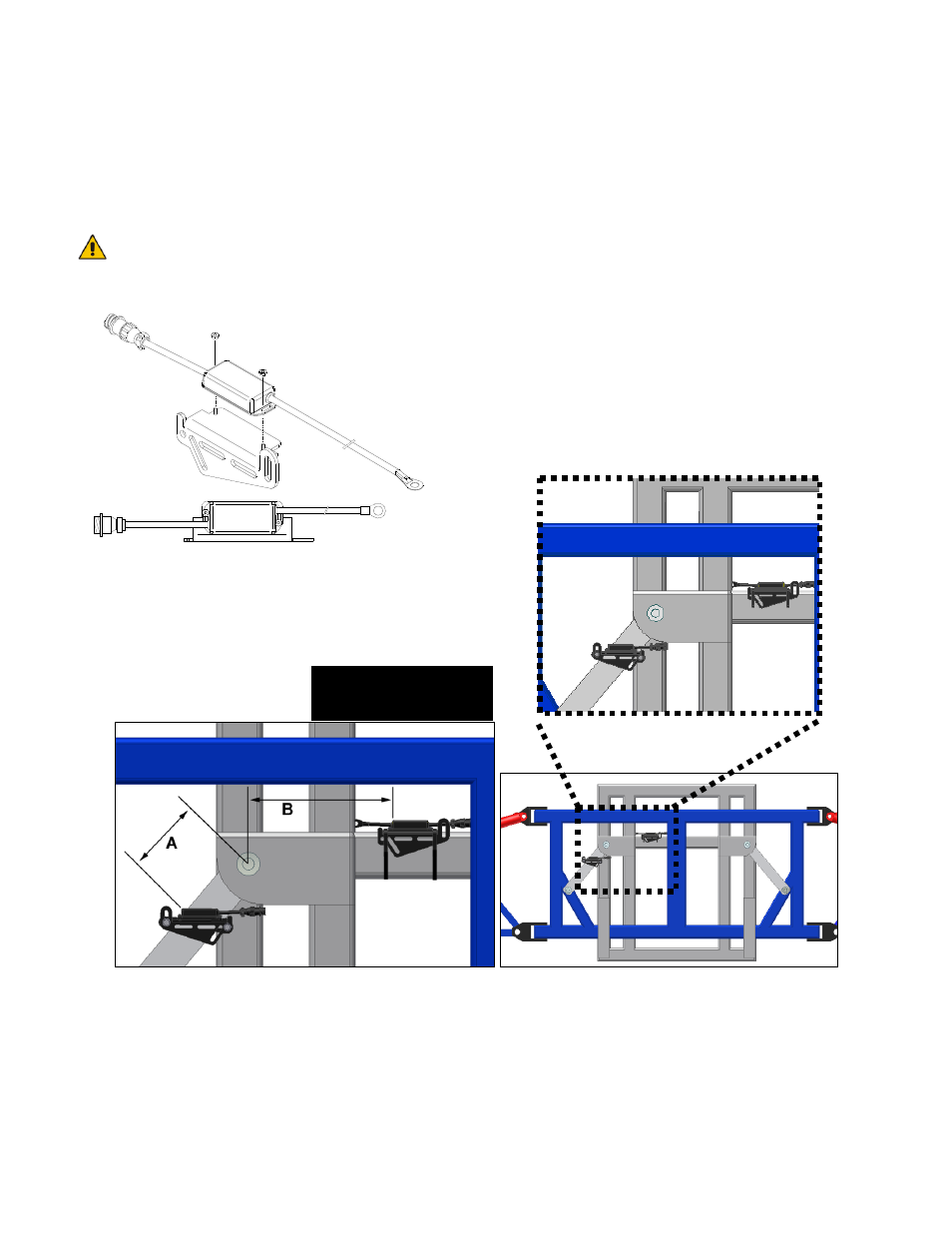

Mount the roll sensors to the included roll
sensor brackets using the machine screws and
nylon lock nuts. (Figure 15)
The roll sensors must be mounted
tightly to the brackets.
Figure 15: Mounting the Roll Sensor to
the Roll Sensor Mounting Bracket
When mounting the roll sensors, use the
following guidelines and refer to Figure 16.
a) The smaller the distance between A and B
in Figure 16, the better the performance
will be.
b) Ensure the roll sensors are sitting relatively
level when the sprayer chassis and boom are
level.
c) Both roll sensors must be mounted with the
circular AMP connector facing towards the
Right-Hand Wing (when looking from the
rear of the sprayer).
Figure 16: General Roll Sensor Mounting Location on a Trapeze Style Boom
Connectors towards
Right-hand Wing 
