Technical Data
AES3 AUDIO INPUT
Interface
1 x XLR female, transformer balanced, input impedance 110 Ω, 200 mV – 7.0 V
Format, Resolution AES3 – 1992/2003, AES11 – 1997/2003, IEC 60958, 16 – 24 bits
Lock Range 25.0kHz to 200.0kHz
AES3id AUDIO INPUT
Interface
1 x BNC, 200 mV-7 V, unbalanced, input impedance 75 Ω
Format, Resolution AES3id – 1995/2001, 16 – 24 bits
Lock Range 25.0kHz to 200.0kHz
S/P-DIF OPTICAL AUDIO INPUT (OP)
Interface
1 x Toslink TM , EIAJ RC-5720
Format, Resolution IEC 60958, 16 – 24 bits
Supported Sampling Rates 25.0kHz to 200.0kHz
S/P-DIF COAXIAL AUDIO INPUT (CO)
Interface
1 x Coaxial (Cinch/RCA female), unbalanced, 0.5 –1.0Vpp @ 75 Ω, output impedance 75 Ω
Format, Resolution IEC 60958, 16 – 24 bits
Supported Sampling Rates 25.0kHz to 200.0kHz
WORD CLOCK INPUT (WCLK)
Interface 1 x BNC, 200 mV-7 V, unbalanced, input impedance 75 Ω (can be switched off, see above)
Lock Range 25.0kHz to 200.0 kHz, 11.2896MHz + 12.288MHz (so-called Super Clocks)
Switching-off the Termination of the Word Clock Input
CAUTION! Disconnect the unit from the mains before opening!
Remount the aluminium cover thoroughly before you attempt to operate
the unit!
When MC-6 is shipped, the BNC-based Word Clock input connector is
terminated internally with 75 Ω. Therefore, one jumper is put on two pins
- Position 1 - of the 3-pin socket JP1.
When moving the jumper from position 1 to position 2, the input termi-
nation will be switched-off. Therefore, the MC-6 must be connected in a
chain, in which a device with terminated input follows. Otherwise you need
to use a BNC-T piece in combination with a 75 Ω BNC resistor for terminat-
ing the MC-6’s input.
JP2
Jumper:
1 2
Free Pin:
Jumper Position 1
= Termination
For additional information regarding this issue, please refer to page 11.
JP2
1 2
Jumper Position 2
= no Terminaltion

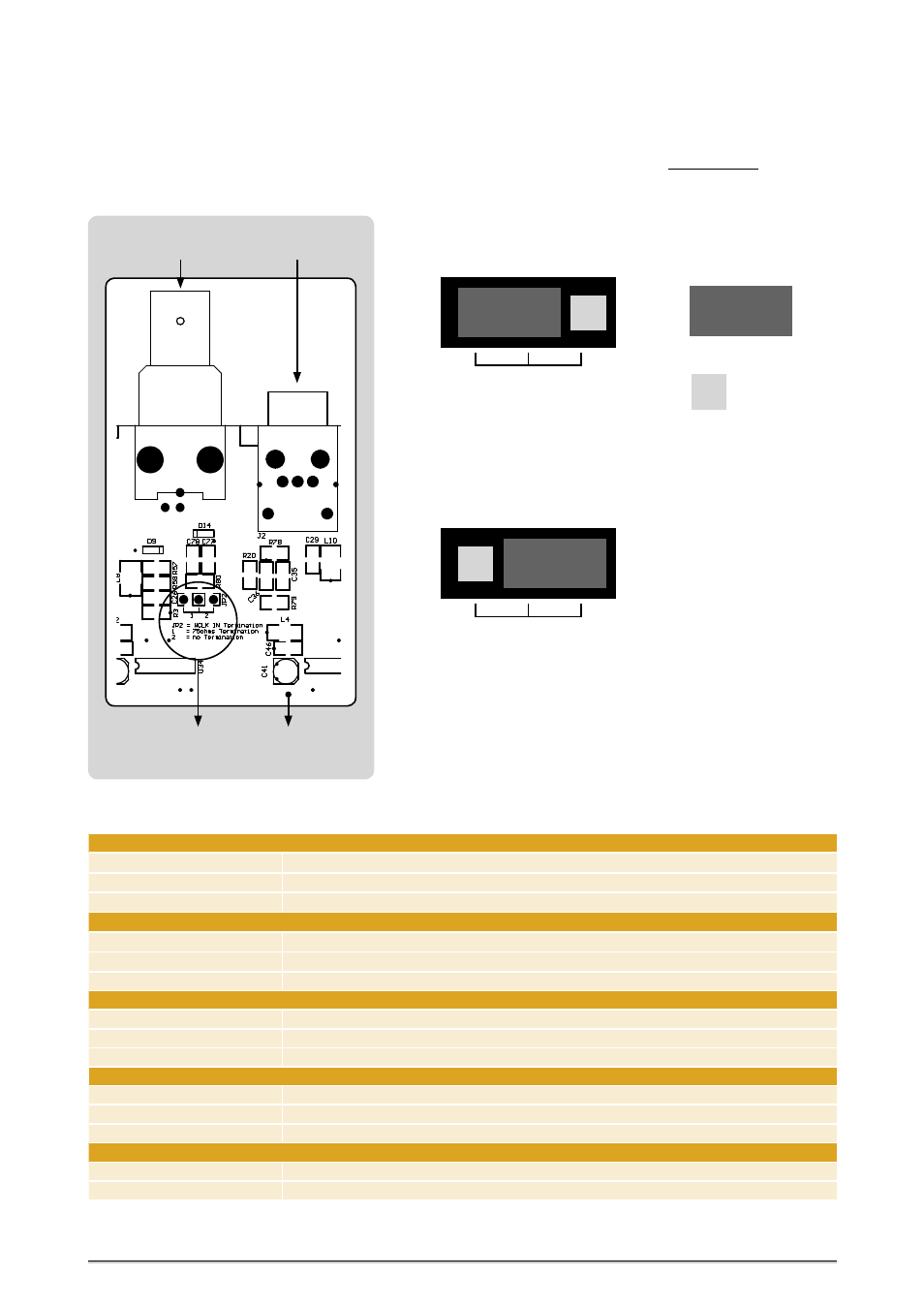

Word Clock Termination
Word Clock
Input
Termination
3-pin socket
JP2
S/P-DIF
Inputs
MC-6
Mainboard
PCB
