APPENDIX

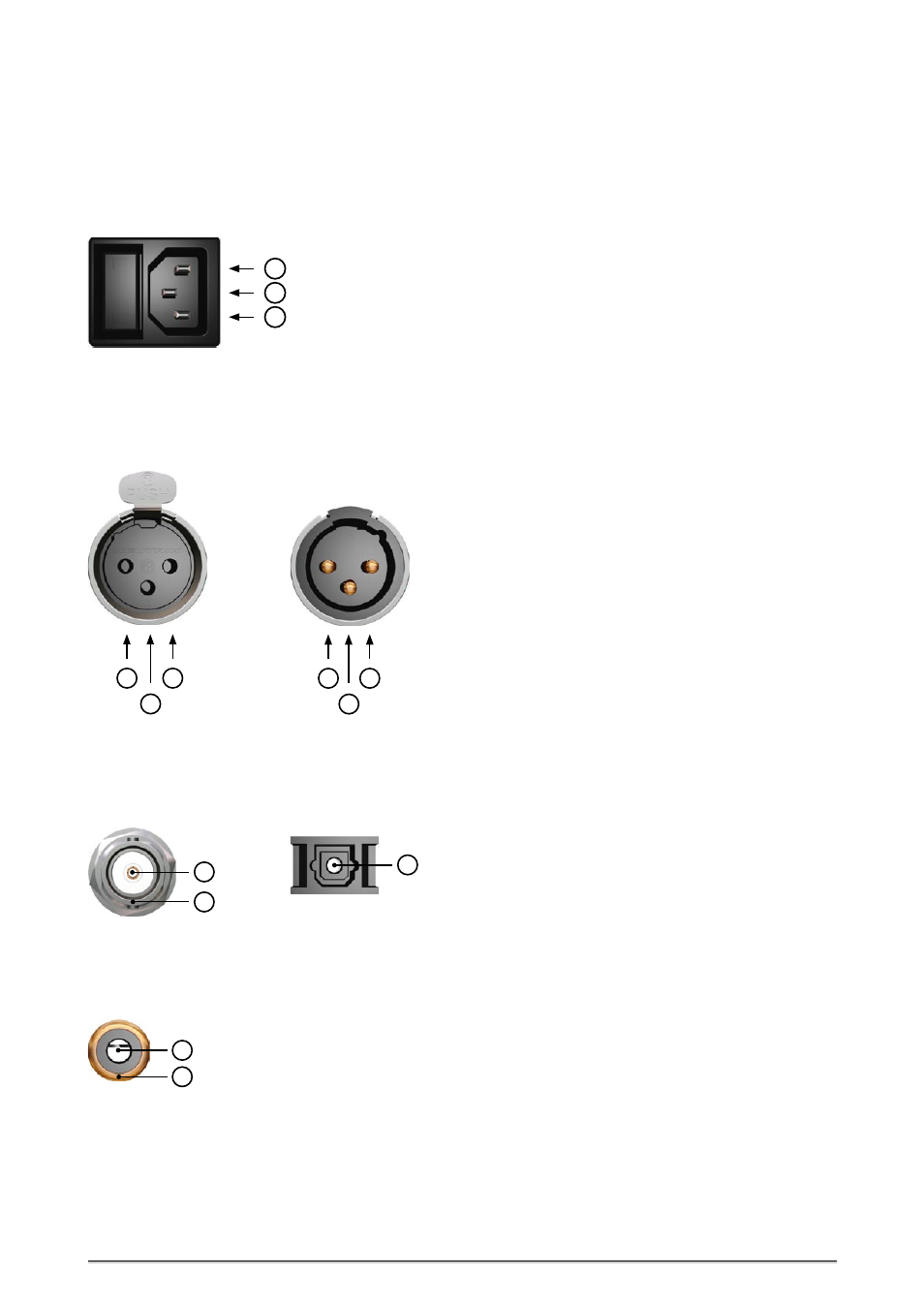

Pin Assignment of the Connectors
Mains
1
1 Neutral (blue; USA: white)
2 Protective earth (green/yellow; USA: green)
3 Live, phase (brown; USA: black)
2
3
2
3
1
1 Audio ground
2 a conductor (hot / +)
3 b conductor (cold / -)
AES/EBU, XLR, Input
S/PDIF, Cinch, Input / Output
1 Audio signal
2 Audio ground
1
2
S/PDIF, Optical, Input / Output
TOSLINK Standard
1
1 Optical signal
BNC In-/Output for Word
Clock, Super Clock, AES3id
1 Signal
2 Ground
1
2
1
3
2
1 Ground
2 a conductor (hot / +)
3 b conductor (cold / -)
AES/EBU XLR Output
