B E D I E N E L E M E N T E B E D I E N E L E M E N T E B E D I E N E L E M E N T E
> > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > > >
13
Steps of Operation
1 First press on »MENU« or »SELECT« key enables the last selected function
within the last selected function menu. The corresponding LED is
beginning to flash.
2 Every press on »SELECT« button will select a new function within a menu.
The LED of the selected function flashs accordingly. After the LED stops
flashing, the funcltion is activated.
3 When the needed function is selected, do not press the switches again!
After a period of approximately 4 seconds the LED of the selected
function stops flashing.
The »STATUS« and »CLOCK IN « areas are not accessible by using the
»MENU« and »SELECT« keys, because they only inform about different
conditions of incoming signals.
Function Menus + Functions
Menus Functions
Safety Instructions
For safety reasons, be sure to
read the SAFETY INSTRUCTIONS
and INSTALLATION chapters before first
powering-up!
We also recommend reading the CONTROL
ELEMENTS AND TERMINALS chapter for
information on how to connect the device!
!
User Settings Remain
All user-specific function settings
are available furthermore when
power is restored.
!
Shut-Down of Outputs
All digital audio outputs are shut-
down during function selection!
After a function is finally selected and the
corresponding LED lights constantly again,
the digital audio outputs are activated for
signal transfer.
!
GENERAL OPERATION

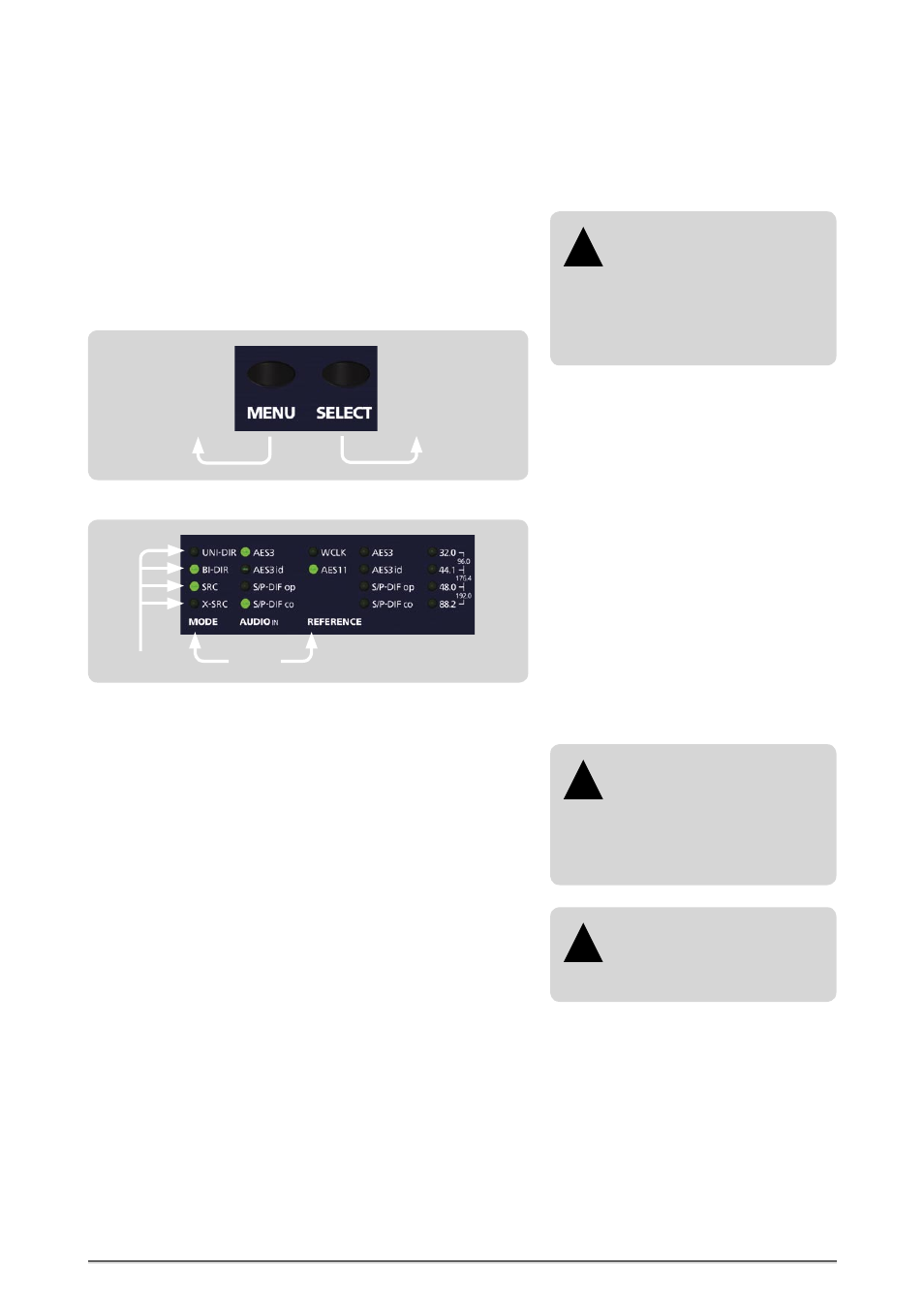

Selecting Function Menus and setting Functions
The device is fully operated using the two toggle switches at the front
panel.
1 Switching the »MENU« key toggles between different basic function
menus.
2 Switching the »SELECT« key activtes individual functions within one
function menu.
2. SELECT
selects individual
functions within
one function
menu.
1. MENU
selects individual
function menus.
MENU + SELECT operation
