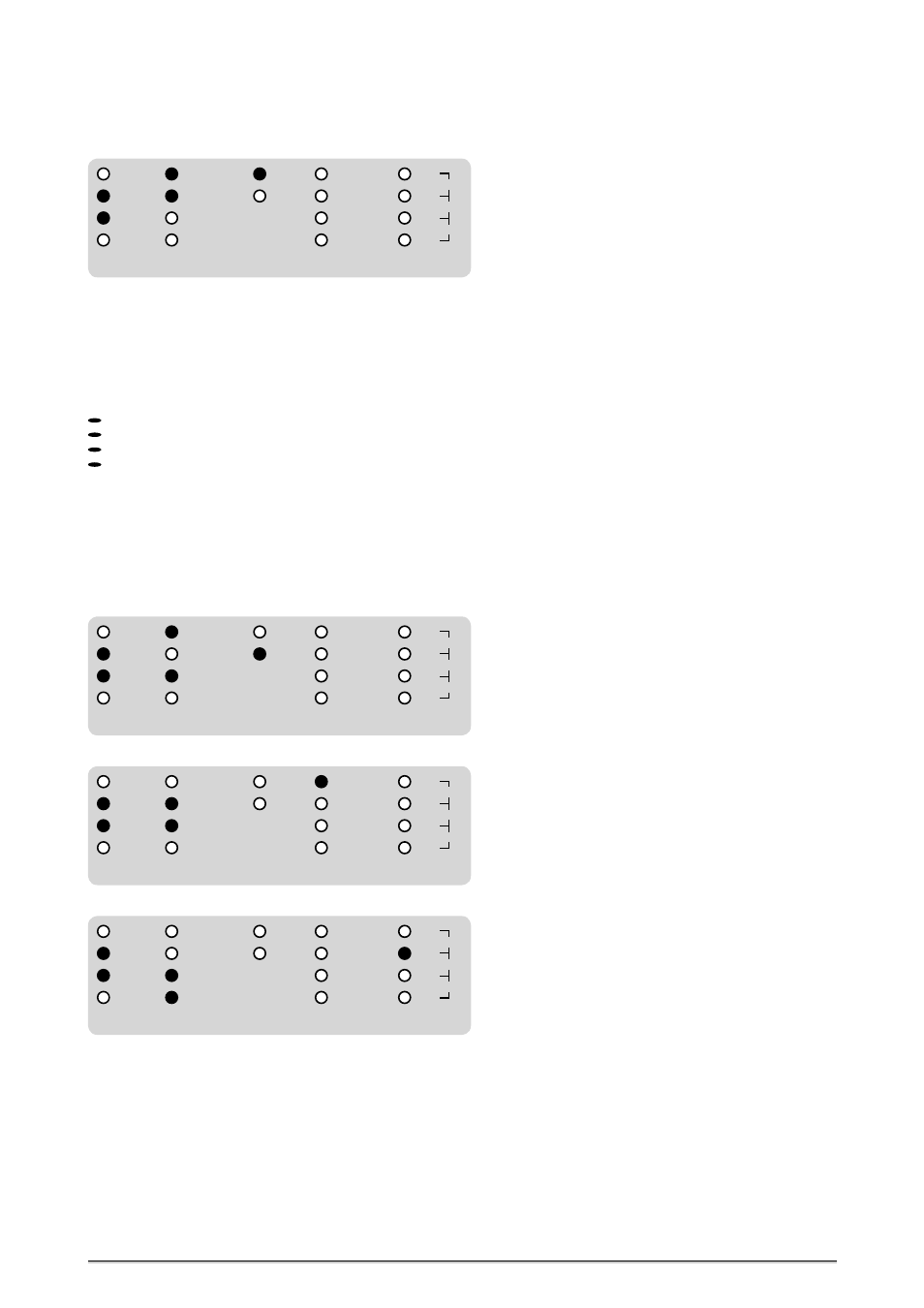

Bidirectional Format and Sampling Rate Conversion
X-SRC
BI-DIR
UNI-DIR AES3
S/P-DIF op SRC
REFERENCE
88.2
48.0
44.1
32.0
192.0
96.0
176.4
MODE
AES3id
S/P-DIF co
AUDIO IN
AES11
WCLK AES3
S/P-DIF op
AES3id
S/P-DIF co
This setting allows to receive an AES3 signal and an AES3id signal simul-
taneously. The bidirectional format conversion procedure is the same as
described before, but you have now to select in the »REFERENCE« menu
additionally a clock reference for the sampling rate conversion process,
whose clock rate is then displayed under »REF CLOCK
IN «. The example
above shows Word Clock (WCLK) selected as clock reference.
The following clock references are available for synchronization:
WCLK, 25.0kHz – 200.0kHz, SCLK 11.2896MHz + 12.288MHz
AES11, 25.0kHz – 200.0kHz (through separate input at the rear)
Inputs of AES3, AES3id, S/P-DIF op, S/P-DIF co, each 25.0kHz – 200.0kHz
32.0kHz –192.0kHz, internal clock oscillator
To activate a clock source enter the »REFERENCE« menu and press the »SE-
LECT« button repeatedly. When the external reference clock signal is locked
by the internal PLL circuit, the first blue LED »LOCK« in the »STATUS« menu
lights constantly. The clock rate of the selected clock source is then display-
ed in the first LED row, marked with »1«, of the »REF CLOCK
IN « menu.
Further Setting Examples
X-SRC
BI-DIR
UNI-DIR AES3
S/P-DIF op SRC
REFERENCE
88.2
48.0
44.1
32.0
192.0
96.0
176.4
MODE
AES3id
S/P-DIF co
AUDIO IN
AES11
WCLK AES3
S/P-DIF op
AES3id
S/P-DIF co
Bidirectional format and sampling rate conversion between AES3 and S/P-DIF optical,
referenced by an externally applied AES11 clock signal.
X-SRC
BI-DIR
UNI-DIR AES3
S/P-DIF op SRC
REFERENCE
88.2
48.0
44.1
32.0
192.0
96.0
176.4
MODE
AES3id
S/P-DIF co
AUDIO IN
AES11
WCLK AES3
S/P-DIF op
AES3id
S/P-DIF co
Bidirectional format and sampling rate conversion between AES3id and S/P-DIF optical,
referenced by an externally applied AES3 digital audio signal.
X-SRC
BI-DIR
UNI-DIR AES3
S/P-DIF op SRC
REFERENCE
88.2
48.0
44.1
32.0
192.0
96.0
176.4
MODE
AES3id
S/P-DIF co
AUDIO
IN
AES11
WCLK AES3
S/P-DIF op
AES3id
S/P-DIF co
Bidirectional format and sampling rate conversion between S/P-DIF optical and S/P-DIF
coaxial, referenced by the internal clock base 44.1kHz.
