P/N 08-0403 BREAKER/RIVETING CONVERSION KIT &
For P/N 08-0066 CHAIN PRESS TOOL
Thank you for purchasing the Motion Pro Chain Breaker and Riveting Conversion Kit, P/N 08-0403. Combined
with the 08-0066 Chain Press Tool, it will break chains up to size #630, press master links up to size #532 and
rivet hollow-nosed master links on chains up to #630. For heavy-duty applications or for solid-nosed riveting
please refer to Motion Pro part number 08-0135 Jumbo Chain Tool and part number 08-0142 Quad Stake
Riveting Tool.

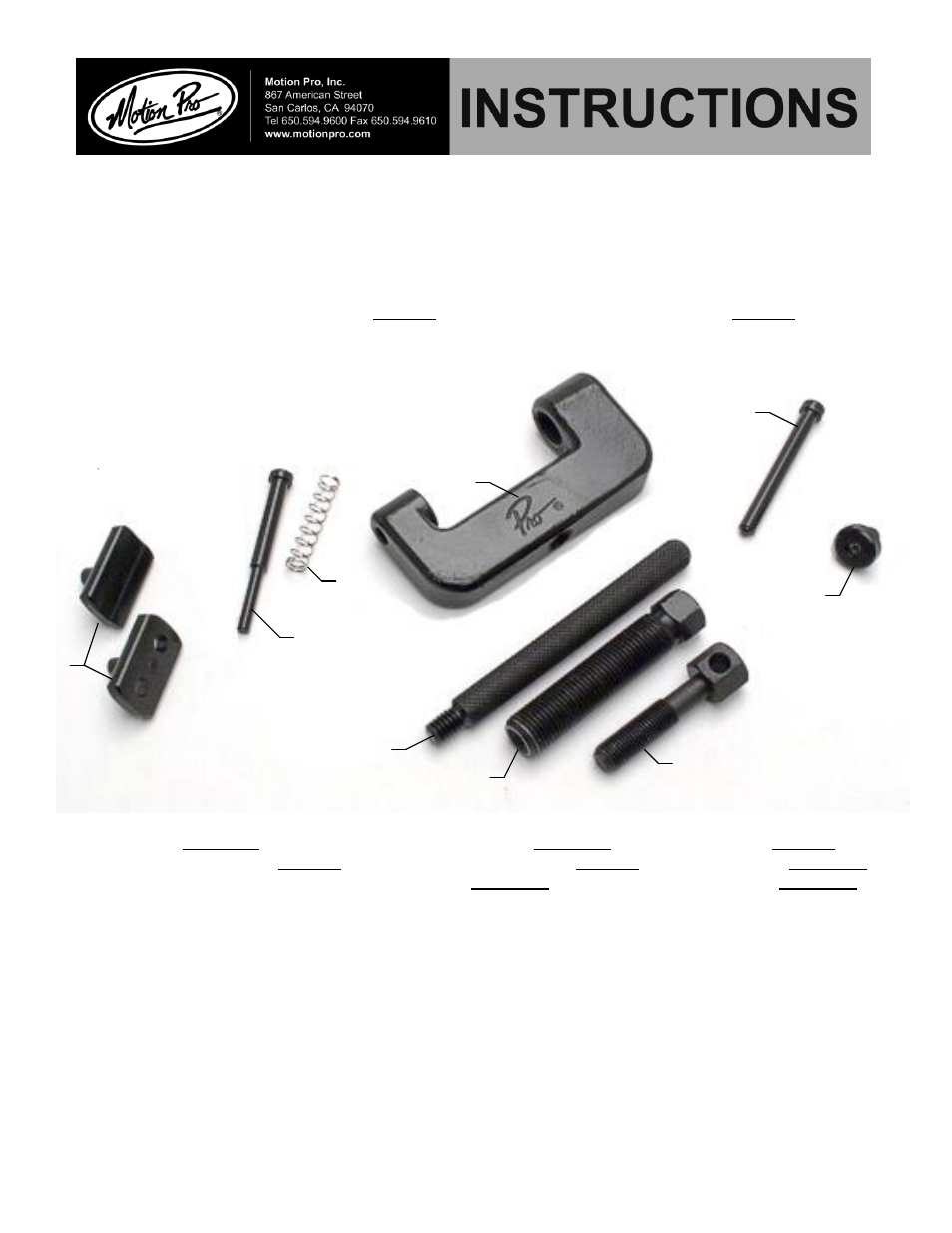

IMAGE A
A. Body, C08-058A D. Alignment Bolt, C08-058B G. Rivet Tip, 08-0062
B. Press Plates (set), 08-0067 E. 3.8mm Breaking Tip, 08-0061 H. Large Anvil, C08-058D
C. Handle F. Spring, C08-001D I. Push Bolt, C08-058C
• Read all instructions for each procedure before beginning. Improper use of the tool can
cause breakage.
• Make sure the tool is clean and apply grease to all threads before assembling and using. This will
help the tool operate more smoothly and allow you to feel tension when using the tool.
• When breaking drive chains larger than #520, it is recommended to grind off the rivet heads
first, if possible. This will significantly reduce the load on the tool and help prevent premature wear
or damage to the breaking tip.
• All tightening procedures are to be performed by hand only, using a 14mm wrench. Do not use
extensions or power tools of any kind or the tool may be damaged.
PAGE 1
A
I
C
F
E
G
H
B
D
I08-0403 11/2011
