MF Digital Ripstation v4.4.15.0 - Manual (Page 14)

Ripstation v4.4 Main User Guide 100-5-01-000
Ripstation v4.4 – User Manual Page 14 of 34
3.3.1 Button and Screen Operations
3.3.1.1 Group 1: Button Controls
Figure 3.2 below shows a closer version of the button controls in the main user
interface. They are labelled 1 –11 and are explained below.
1 2 3 4 5 6 7 8 9 10

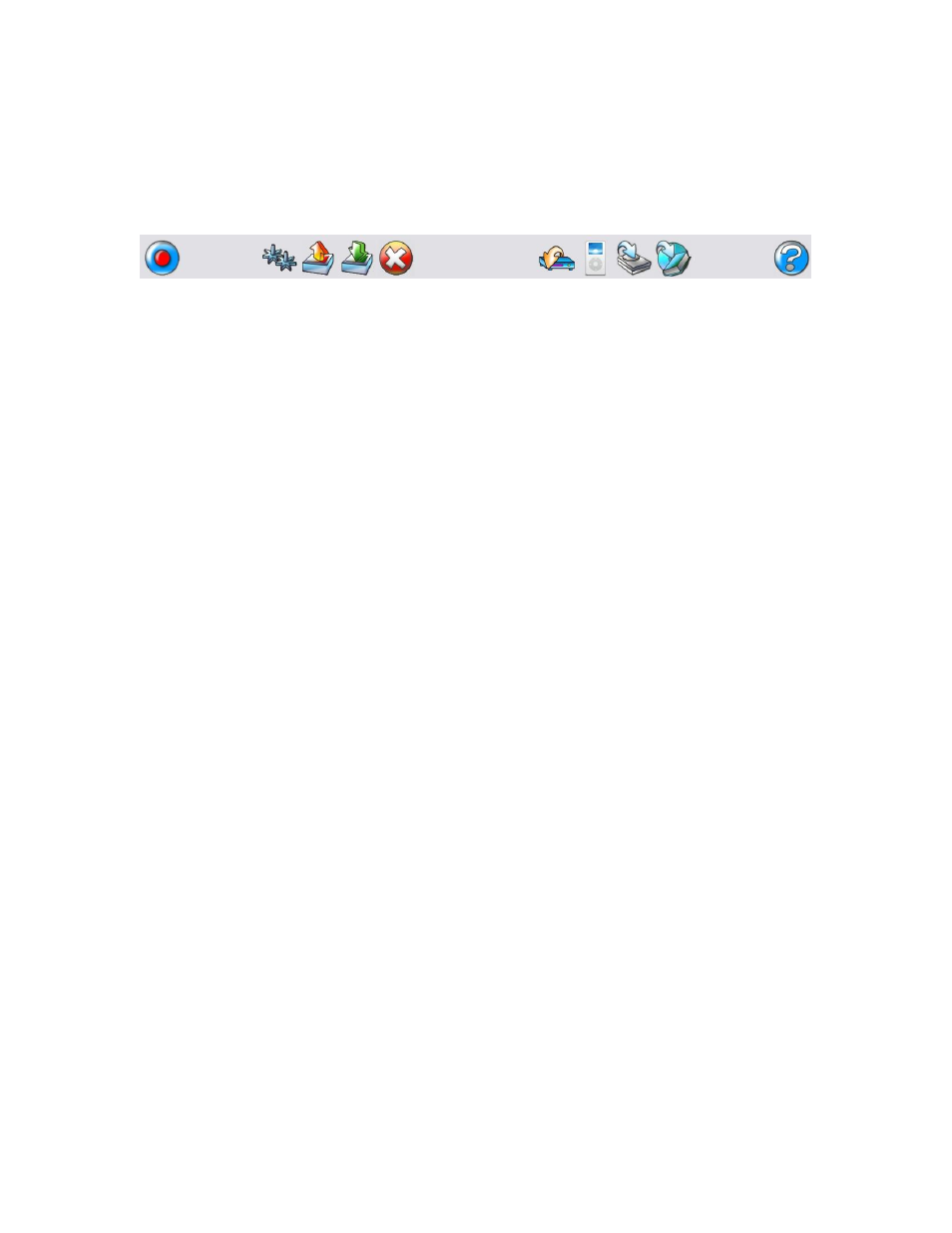

Figure 3.2 – Ripstation Button Controls
Button 1: New Batch / Cancel Batch
This button opens the Start a New Batch dialog. If a batch is currently running, this
button will change to the Cancel Batch button as shown in figure 4.1 and will cancel the
batch if pressed.
Button 2: Preferences
Opens the preferences dialog.
Button 3: Load
This opens a browser dialog to load previously saved batch settings (.rsf file). Settings
file contains Client Name, folder masks and configurations of all codecs, codec selection
Button 4: Save
Opens a browser dialog to save the current batch settings into a .rsf file.
Button 5: Delete Client Files
Deletes the last client folder that was ripped and will display a confirmation dialog
showing the name of the folder about to be deleted
NOTE: If no client folder loaded – deletes all files ripped from the top level folder
down.
Button 6: Server Loading Module
Opens the MF Digital 'Audioload' module for server loading– please refer to this
product's user manual
Button 7: Podload Module
Opens iTunes for add to library function and iPod loading
Button 8: Send to Disk
Opens the MF Digital 'Send to HD' module for loading client audio to removable storage
Button 9: AudioFile
Opens the optional MF Digital 'AudioFile' module HTML/PDF batch cataloguing
Button 10: Help
Opens the Ripstation v4.4 help dialog
