Ripstation v4.4 Quick Start Guide 100-5-01-000
Ripstation v4.4 – User Manual Page 10 of 34
4. When using the 7602/7604 device, you will need to configure the drive placement
and then choose the correct COM port. To do this from the Source device pull down
box select 7602/7604, then click the edit button beside it:

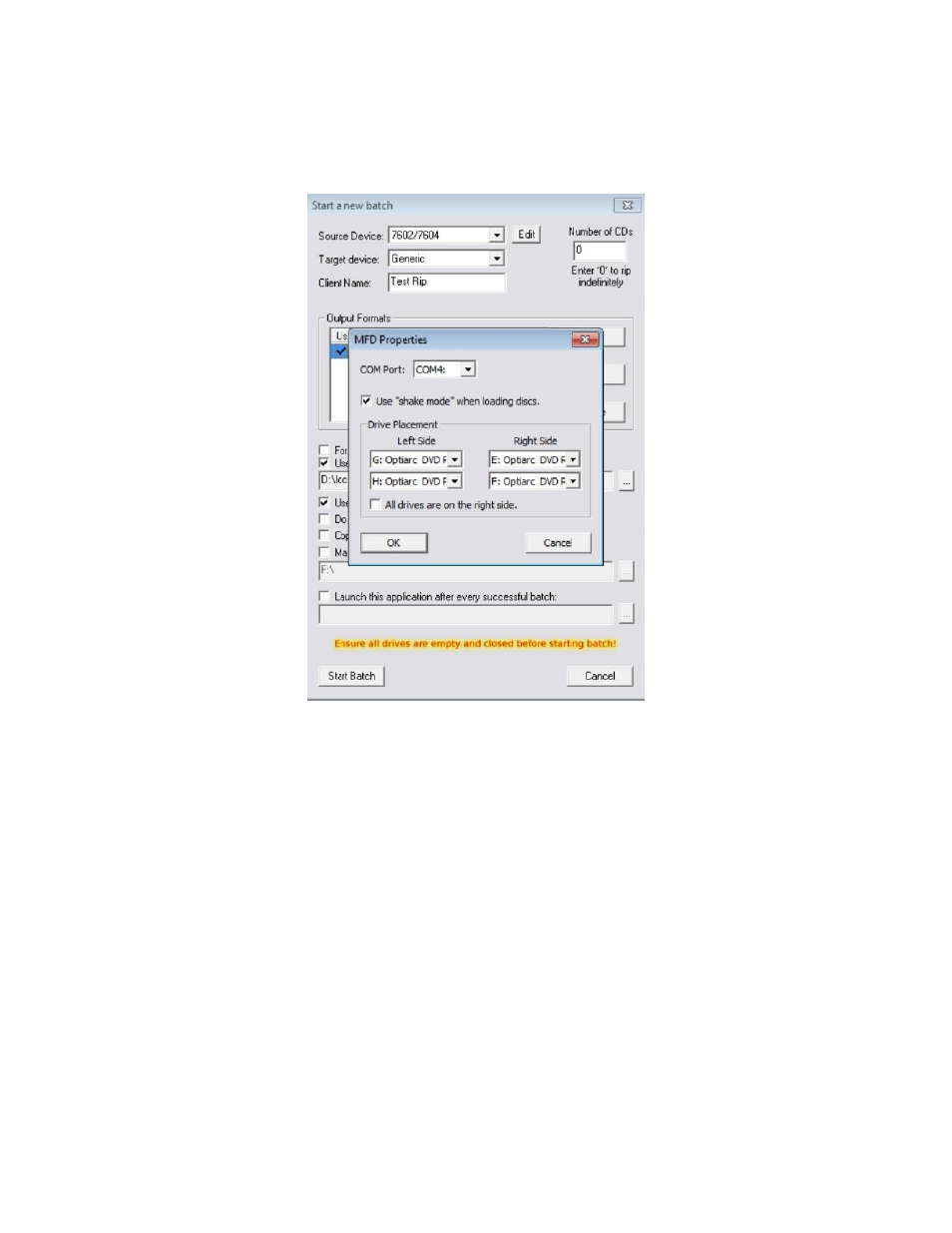

Figure 2.1 – 7602/7604 Properties Dialog
You then select which drives are left of the robotic arm, and which are right of it.
You can also enable shake mode
6. Enter your name, 'testrip' or 'myfirstrip' into the Client Name box. A folder of the
same name will be created. This is where the audio files will be saved.
7. In the output formats section, highlight the MP3 codec and tick the ‘Use’ box on the
left.
8. Stack some CDs onto any input spindle and click ‘Start Batch’ to commence the first
batch rip!
NOTE: Ripping will continue until all CDs are ripped. Click the ‘Open Client Folder’
button to view the digitally encoded audio files.
