Analog Essentials Getting Started Guide
7
For LX9 and Nexys-3
2. Downloading the bitstream (.bit) file to the board.

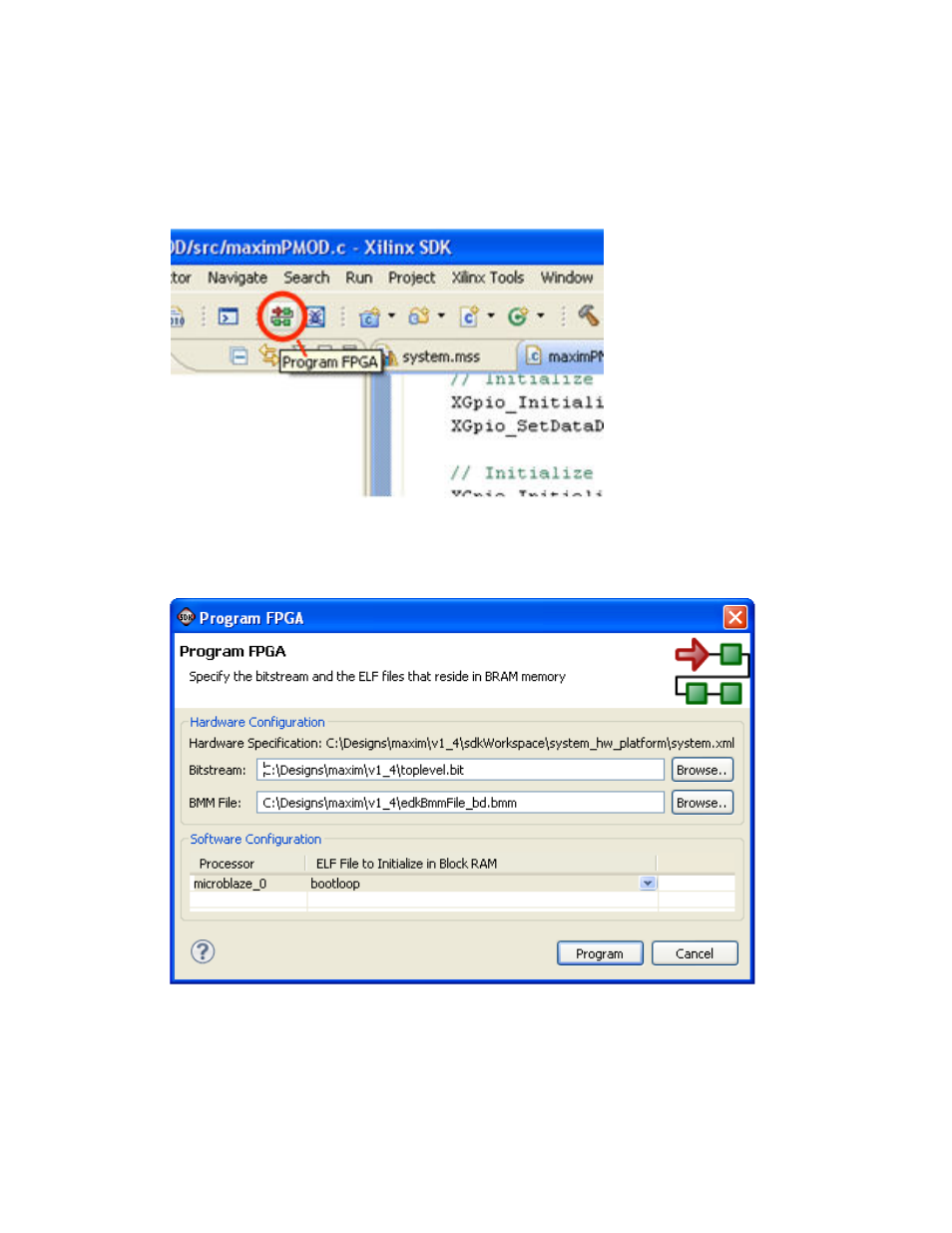

a. Click on the Program FPGA icon (which looks like a green chain of devices):
b. The Program FPGA dialog box will appear. From here, an FPGA bitstream is selected as well as an FPGA
bmm file and a (.elf) file to load into the Microblaze memory as shown below. Be sure to select the
toplevel.bit file, the edkBmmFile_bd.bmm, and the bootloop file as shown, then select Program.
