Analog Essentials Getting Started Guide
5
For LX9 and Nexys-3
Detailed Steps: Downloading the Example/Demonstration Application
1. Opening the SDK

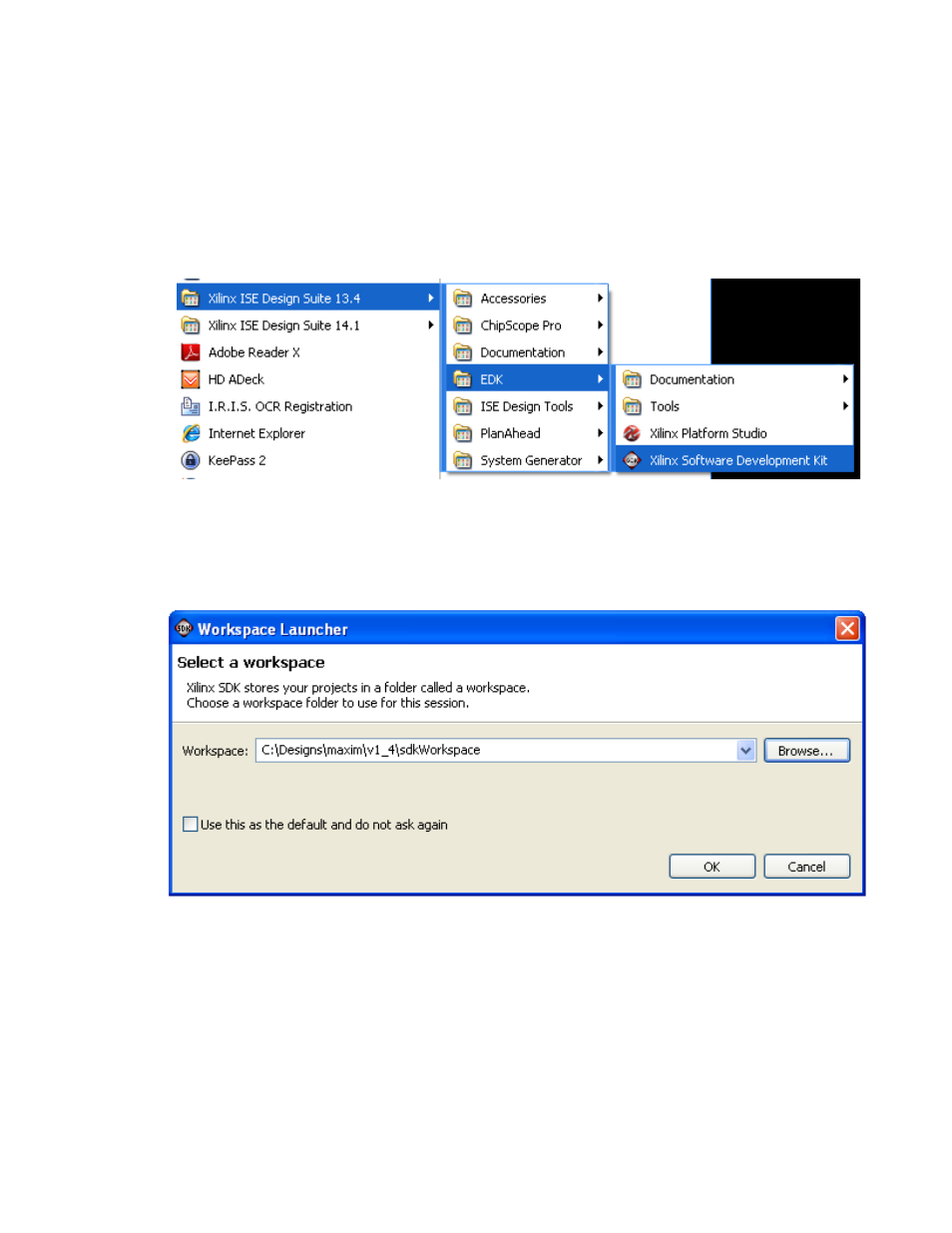

a. From the Windows Start Menu, Open the Xilinx SDK as shown below
.
b. SDK will prompt for a workspace directory, the location where the software project is located. This
directory is generally a subfolder within a Xilinx ISE/EDK project and will include board support files, as
well as (.c) and (.h) files. Be certain to choose the correct Workspace directory. For this project, it will be
C:\Designs\maxim\v1_4\sdkWorkspace (as shown below).
c. Click OK to the prompt shown above and SDK will open. The Xilinx SDK is based on an Eclipse-based IDE,
so it will be a familiar flow for many software developers.
