Analog Essentials Getting Started Guide
19
For LX9 and Nexys-3
2. Open the EDK/XMP project (Microblaze Core/Peripherals)

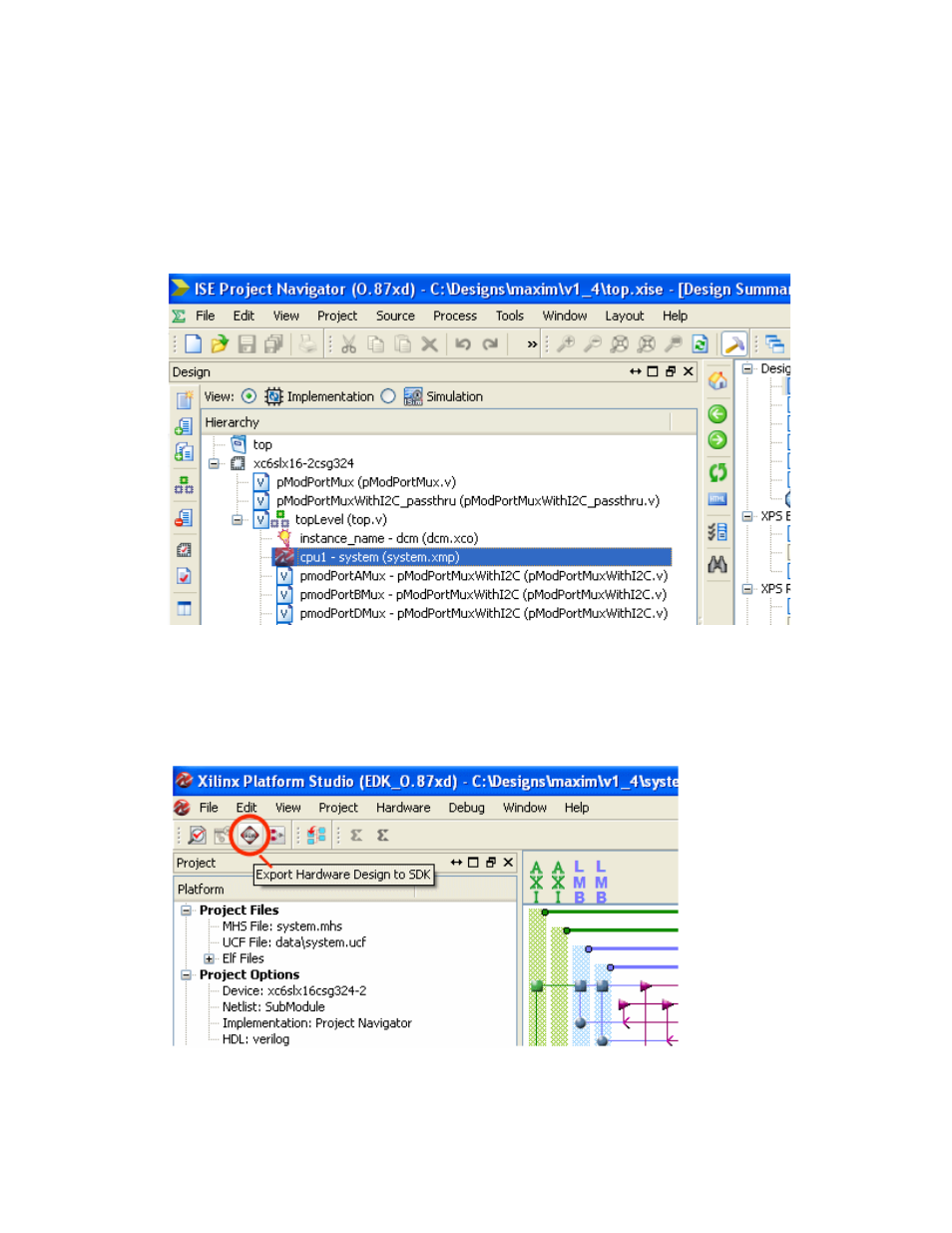

a. Highlight and double-click on “cpu1 – system(system.xmp)” as shown below. Changes to the Microblaze
core and the internal peripherals can be configured here. Examples of this are adding additional I 2 C
ports or changing the baud rate on the UARTs.
b. After making any changes to the Microblaze within EDK, run DRC and Generate netlist, then rebuild the
ISE project to incorporate those changes into the base bitstream (toplevel.bit).
c. Re-export the design to SDK by clicking on the Export to SDK icon in the upper left menu area.
