MAXREFDES24EVSYS User Manual
Rev 0 4
1.3 PC System Requirements
The MAXREFDES24EVSYS kit requires the use of a PC with the following:
• Minimum 1GHz processor and 1GB RAM
• Minimum 1024 x 768 video display resolution
• Two available USB ports
• Microsoft Windows 8, Windows 7, Windows Vista®, or Windows XP®

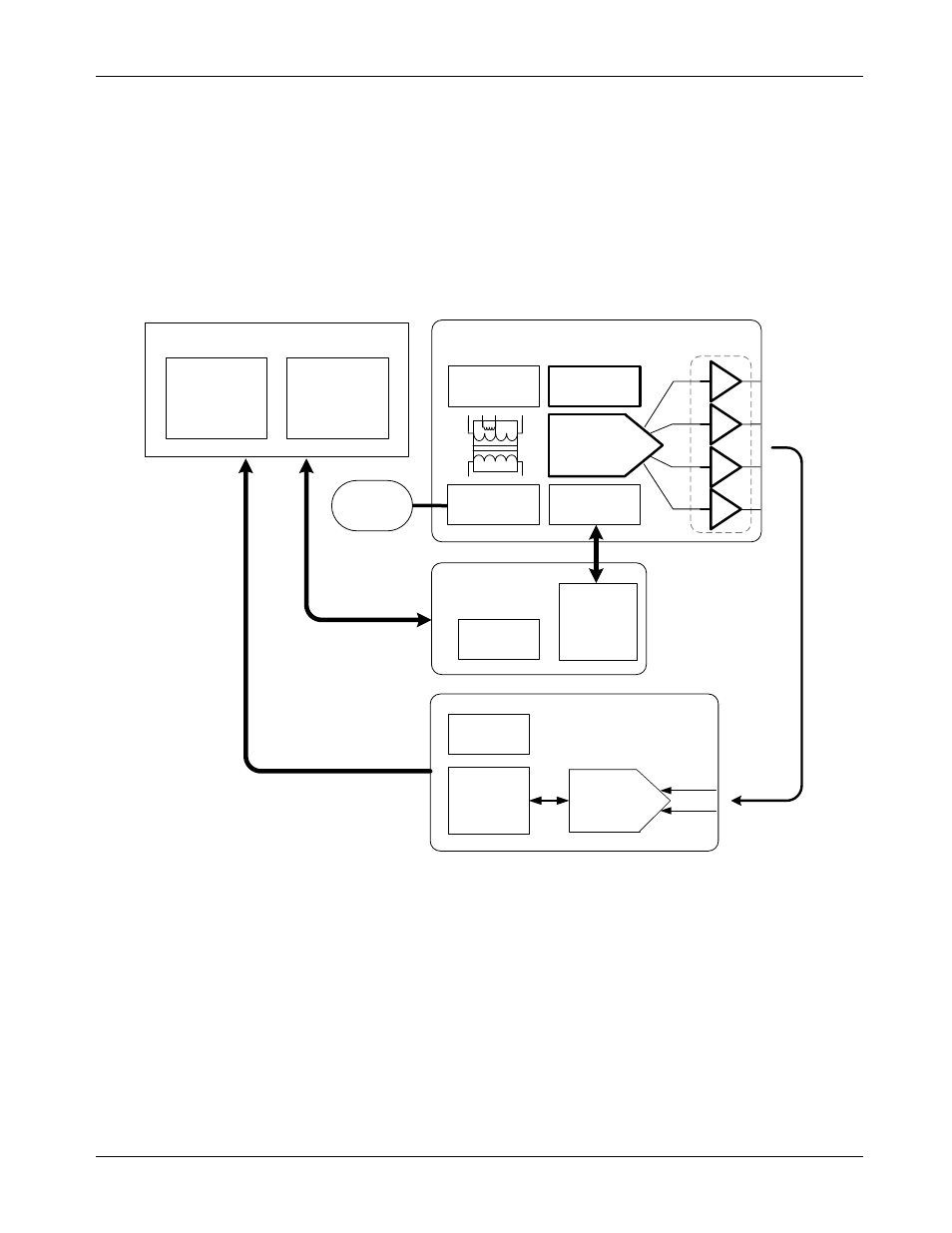

1.4 Functional Diagram
MAX11645
2-CHANNEL
12-BIT ADC
MAXQ622
CONTROLLER
MAX8511
LDO
FT2232HL
USB
CONTROLLER
MAX1556
DC-DC
Windows PC
ADCLITE2
ANALOG SIGNAL
CAPTURE
GUI
REFDES24
4-CHANNEL
ANALOG
OUTPUT
GUI
MAXADCLITE2
USB2PMB1
20–30VDC
(>150mA)
MAX5134
4-CHANNEL
16-BIT DAC
MAX15500
SIGNAL CONDITIONERS
MAX14850 DIGITAL
ISOLATOR
MAX6126 VREF
MAX17498
FLYBACK CONTROL
MAX1659
LDO
MAXREFDES24
0–10V
0–5V
±10V*
0–20mA
±20mA*
SPI
USB
USB
CONTROL AND
DIAGNOSTICS
MEASUREMENT
*BIPOLAR MODES NOT COMPATIBLE WITH MAXADCLITE2
HARDWARE.
1.5 Quick Start Instructions
1) Copy USB flash drive contents to PC (if only two USB ports available).
2) Connect USB2PMB1 to MAXREFDES24 as shown.
3) Plug 24VDC adapter into AC source and MAXREFDES24.
4) Connect USB cables to USB2PMB1 and MAXADCLITE2.
5) Use test clips to connect output of MAXREFDES24 to input of MAXADCLITE2.
6) Launch GUIs.
