4.2 GUI for MAXADCLITE2
With the MAXADCLITE2 board connected, run (double-click) the MAXADCLite2.exe file located in
the \MAXADCLITE2\ directory. The application runs in a continuous sampling mode at a sampling rate of
1ksps. The only user control is selecting the input channel (default AIN0). The ADCLite2 is basic and simple
way to quickly look at the MAXREFDES24 output waveforms. For more information on the MAX11645 and
other evaluation kits, go to
www.maximintegrated.com/MAX11645 .
4.2.1 Scope Options

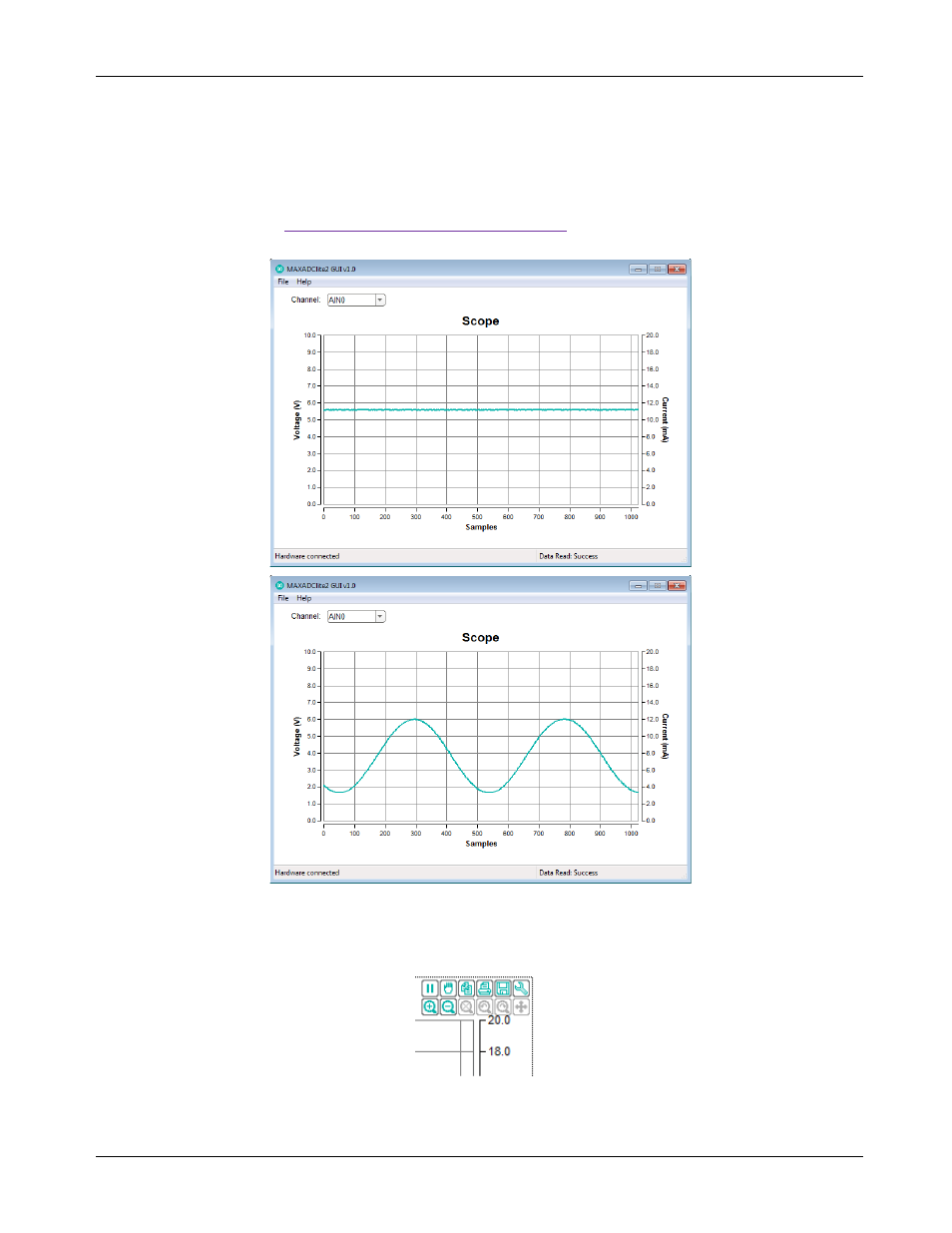

Holding the mouse cursor over the top right corner of the Scope or the Histogram plot displays the plot
settings options available to the user, which include play/pause, zoom in/out, pan, print, save, and waveform
settings.
