73S12xxF USB-CCID Host GUI Users Guide UG_12xxF_037
8 Rev. 1.1

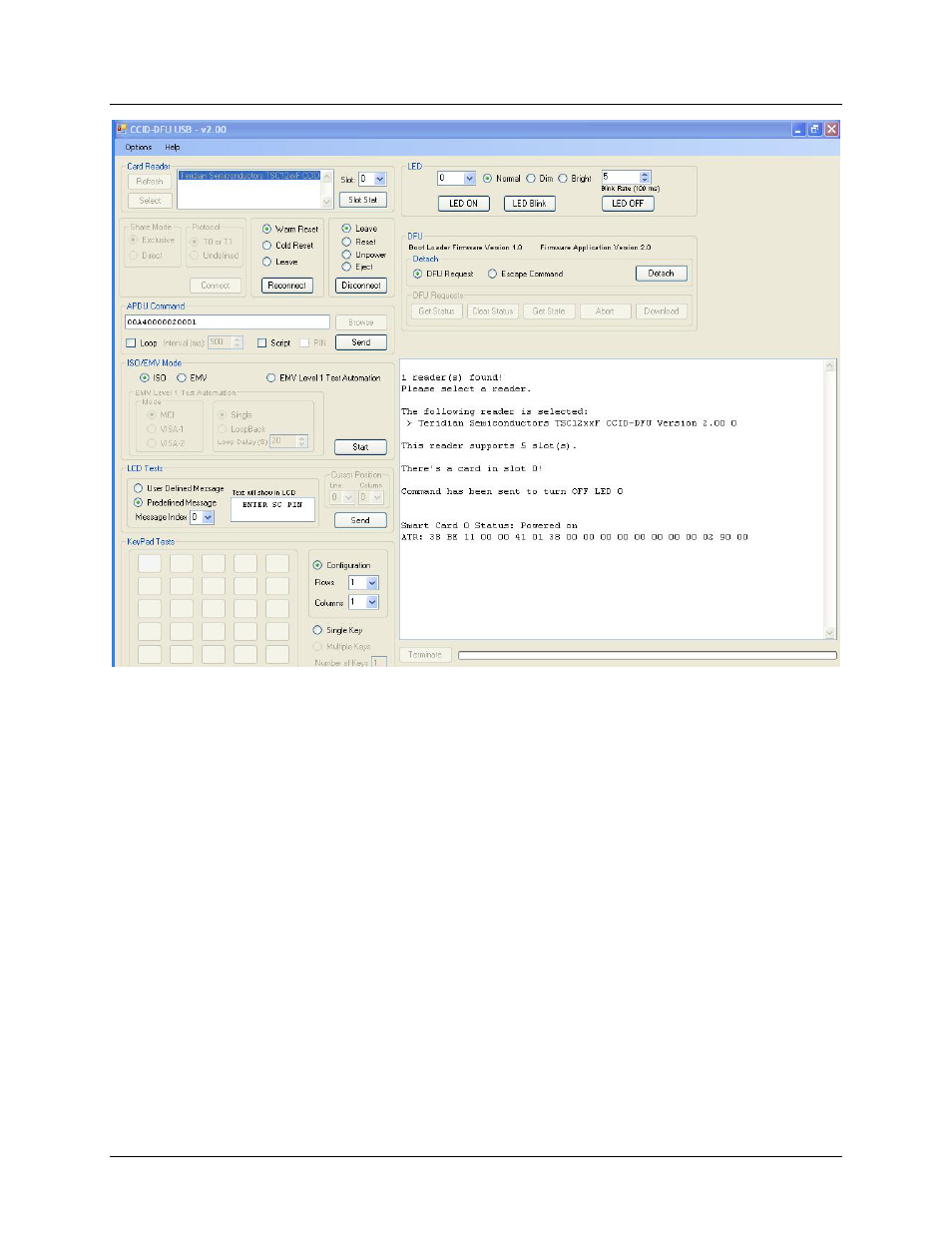

Figure 4: USB CCID Host Application Window after Connecting
2.1.2.2 Reconnect Configuration Frame
The Reconnect Configuration frame has three buttons: Warm Reset, Cold Reset and Leave. These are
parameter selection flags used with the ScardReconnect() PC/SC command. Refer to the Microsoft
Developer Network for a full explanation of these parameters. In most cases, these selections can be left
at the default setting.
2.1.2.3 Disconnect Configuration Frame
The Disconnect Configuration frame contains four buttons: Leave, Reset, Unpower and Reject. These
are parameter selection flags used with the ScardDisconnect() PC/SC command. Refer to the Microsoft
Developer Network for a full explanation of these parameters. In most cases, these selections can be left
at the default setting.
