1 General information
The tool corresponds to the requirements according to EN 847-1.Follow the instruction
manual before using the tool!

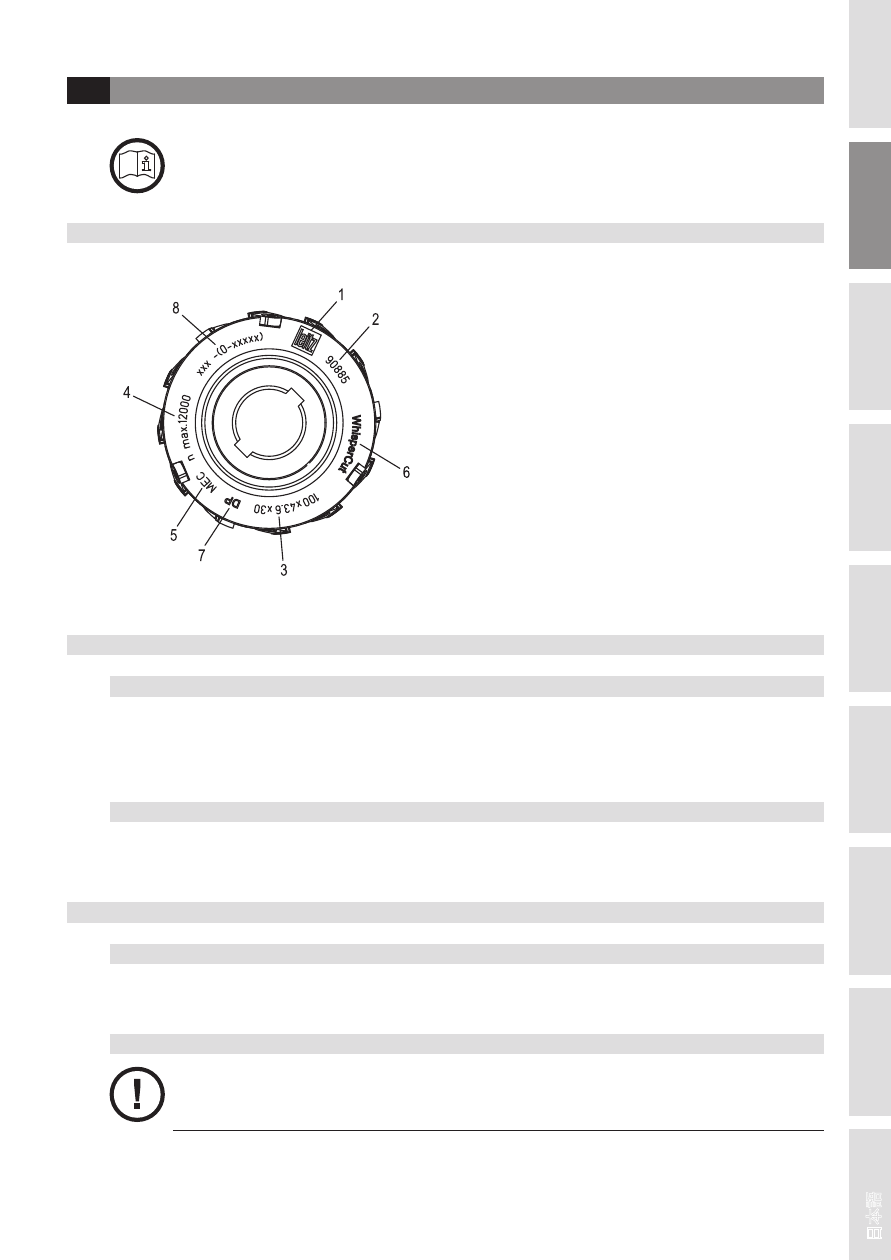

1.1 Marking
1. Manufacturer
2. ID-No.
3. Max. dimensions (D
max
. x SB
max.
x BO)
4. Maximum operating RPM’s (n max.)
5. Type of feed
6. Tool description
7. Cutting material
8. Other manufacturer markings
For the application of several tools on a long
planerhead or on a cutter arbour, the smallest
value “n max.” is valid as RPM.
1.2 Cutting materials and ordering details
1.2.1 Cutting Materials
1.2.2
SP = Alloyed tool steel HL = High alloyed tool steel
HS = High speed steel ST = Cast cobalt-based alloys, e.g. stellite
HW = Carbide, uncoated HC = Carbide, coated
DP = Polycrystalline diamond DM = Monocrystalline diamond
Ordering details
Product name
ID-No.
Dimensions
Number of cutting edges
Type of feed
RPM
1.3 Intended use
1.3.1 RPM n / n max.
The RPM range marked “n“ on the tool has to be kept, resp. the specified max. RPM “n
max.“ is not allowed to be exceeded!
1.3.2 Usage category and working method
Please pay attention to the specifications of the machine manufacturer concerning the
applicability of the tool.
The specified tool is only allowed to be used for the type of feed marked on the tool.
