1 General information
The tool corresponds to the requirements according to EN 847-1. Follow the instruction
manual before using the tool!

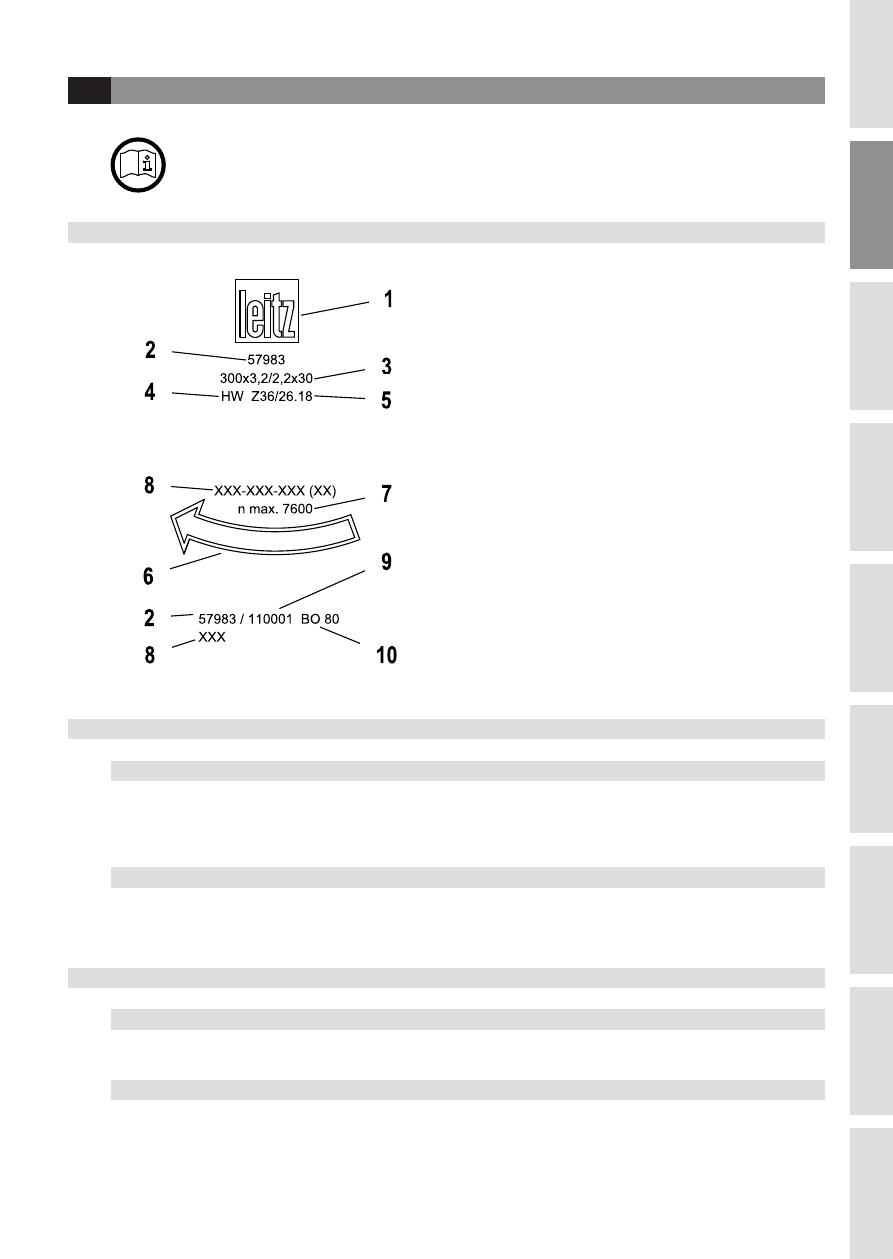

1.1 Marking
1. Manufacturer
2. ID-No.
3. Dimensions (D x SB / TDI x BO)
4. Cutting material
5. Number of teeth / tooth pitch
6. Direction of rotation
7. Maximum operating RPM’s (n max.)
8. Other manufacturer markings
9. Variant
10. Bore
For the application of several tools on a long
planerhead or on a cutter arbor, the smallest
value “n max.” is valid as RPM.
1.2 Cutting materials and ordering details
1.2.1 Cutting Materials
1.2.2
HW = Carbide, uncoated HC = Carbide, coated
DP = Polycrystalline diamond DM = Monocrystalline diamond
ST = Cast cobalt-based alloys, e.g. stellite
Ordering details
Article number
ID-No.
Dimensions
Number of teeth
Tooth shape
1.3 Intended use
1.3.1 RPM n / n max.
Do not exceed the maximum RPM “n max” stated on the tool!
1.3.2 Usage category and working method
Please pay attention to the specifications of the machine manufacturer concerning the
applicability of the tool.
