5.2.4 Output type.
Main output : * Output by P.I.D control * On during Heating (Heater LED is ON)

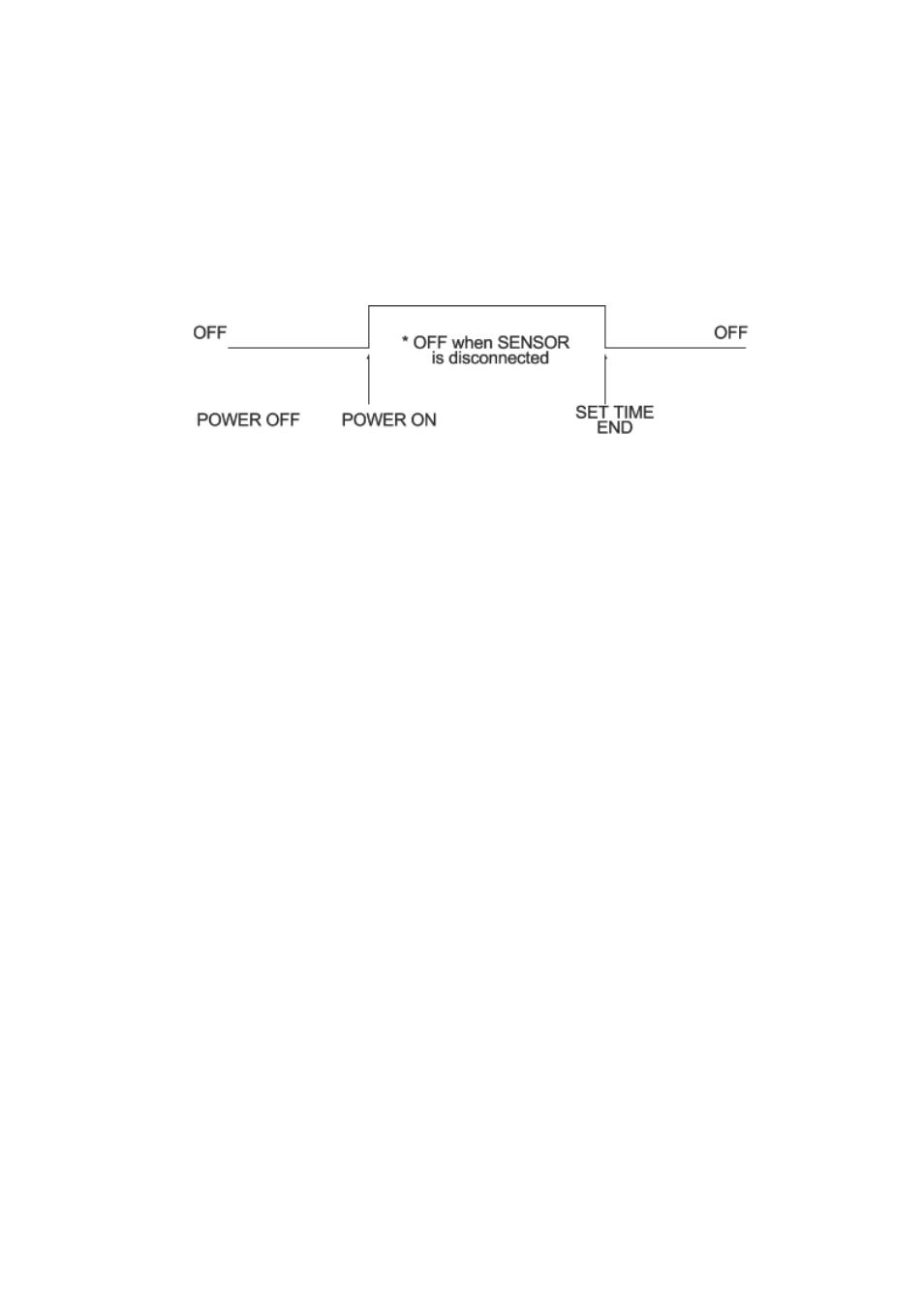

● Start Relay
When used as START RELAY
(when FACTORY CONFIGURATION MODE => SR_A è NON is selected)
5.2.5 How to set automatic tuning for temperature.
● When temperature difference occurs during operation, press AT key for 4 seconds,
and automatic tuning process will begin, and AT lamp (Auto tuning lamp) will start to blink
until automatic tuning process is completed.
● When automatic tuning is in process, NEVER change set-values nor OPEN/CLOSE the
door until automatic tuning process is completed.
● Press AT key for 4 seconds during Auto Tuning Process , and Auto Tuning Process will
be stopped instantly.
5.3 How to set temperature
● Check rated voltage of the equipment as well as check the specification.
Be sure to use AVR (Automatic Voltage Regulator) in the place with unstable voltage.
● Connect the power plug to the power outlet.
● Turn ON the Main Power Switch located on the right side of the main body.
● Turn Power ON by pressing by POWER On/Off Key located on the temperature
controller.
● Press MODE key at full length for 1 second.
Then tEmP is shown on display window of PV side.
Press ◀ key and ▲ key to set required temperature.
● After setting the temperature, press MODE key once.
Then timE is shown on display window of PV side.
Press ◀ key and ▲ key to set required time for timer function.
● When setting on all units is finished, press MODE key at full length for 2 seconds, and
all setup values will be reset as set values and return to normal mode.
