5. Name and functions of controller.
5.1 Name of the controller.

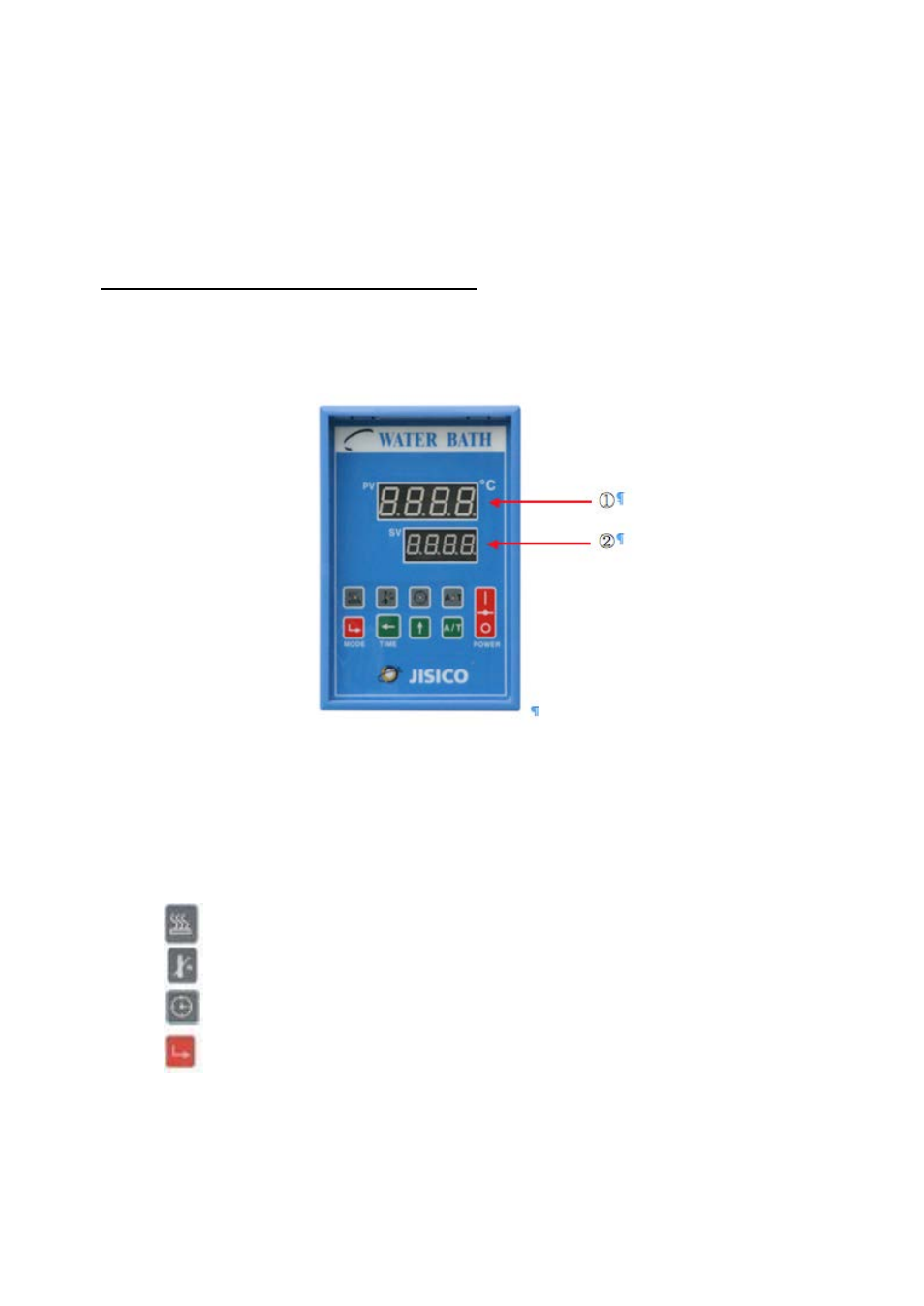

[ Fig.4 : P.I.D. temperature controller ]
①
②
: PV display window : Indicating current temperature
: SV display window : Indicating temperature setup.
: Heating Status Display : Lamp is turned on when heater is ON.
: Overheat Status Display : Lamp blinks when it is overheated.
: TIMER Function Status Display : Lamp is turned ON when timer function is in use.
: MODE Select Key : Used for setting up temperature, time correction and other related
parameters.
