3.3 The Main Screen
3.3.1 Screen Icons

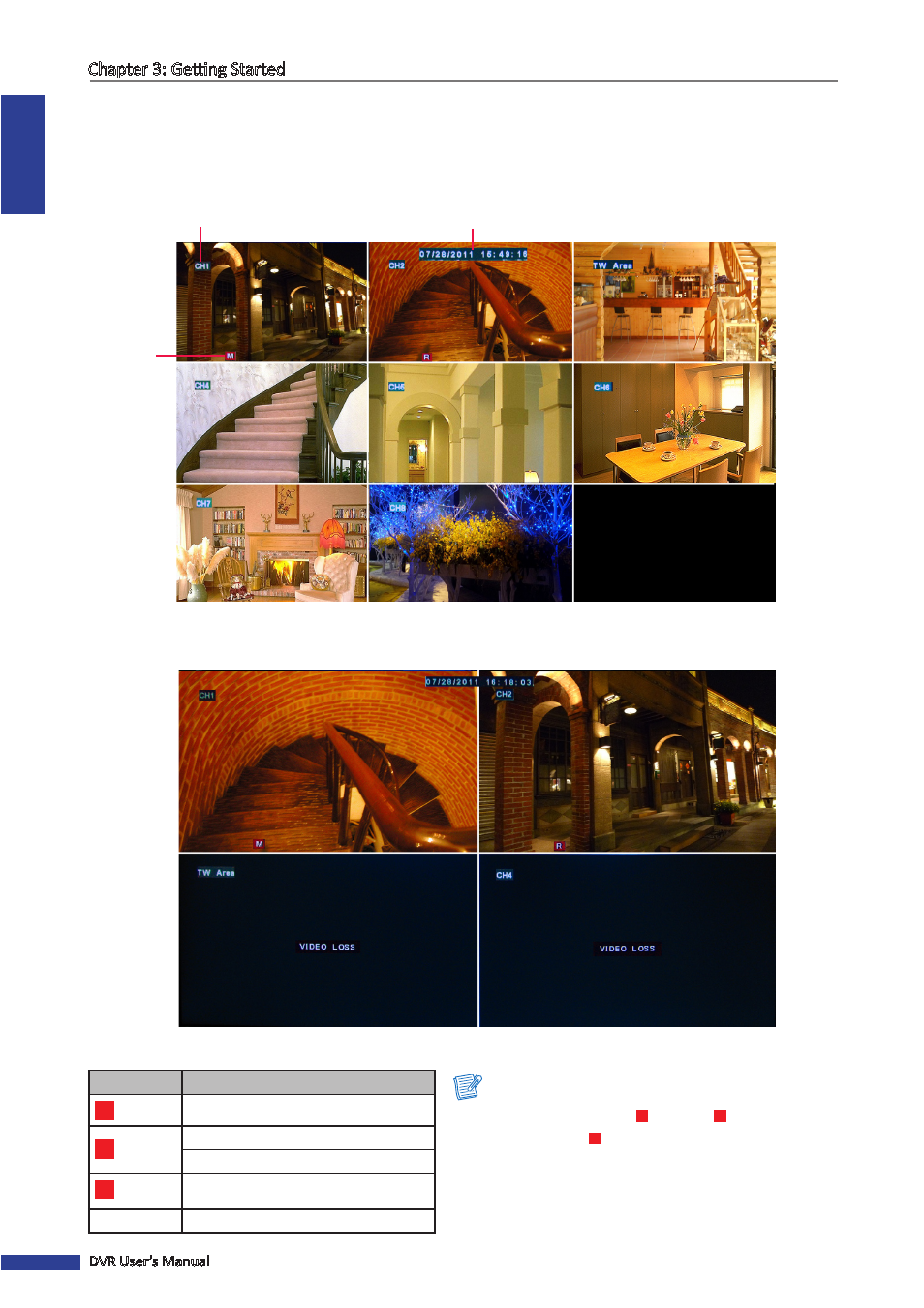

There are four types of recording indicator on the main screen of each channel.
4-window display
8-window display
Current date & time
Recording
indicator
Icon
Description
M
Motion detector is activated.
H
Hard disk drive memory is full.
Cannot detect hard disk drive.
R
Video recording is in progress.
VIDEO LOSS Video loss.
Note:
• During recording mode, [
R
] icon or [
M
] icon appears
on the screen. If [
M
] icon is displayed on the screen, it
indicates that motion detection is enabled.
• If the “VIDEO LOSS” appears on the screen, check the
camera(s) connection.
