Chapter 2: Installation
DVR User’s Manual
13
7
Repeat steps 3 to 6 to install another HDD.
8
Attach the cover and the screws back in place.

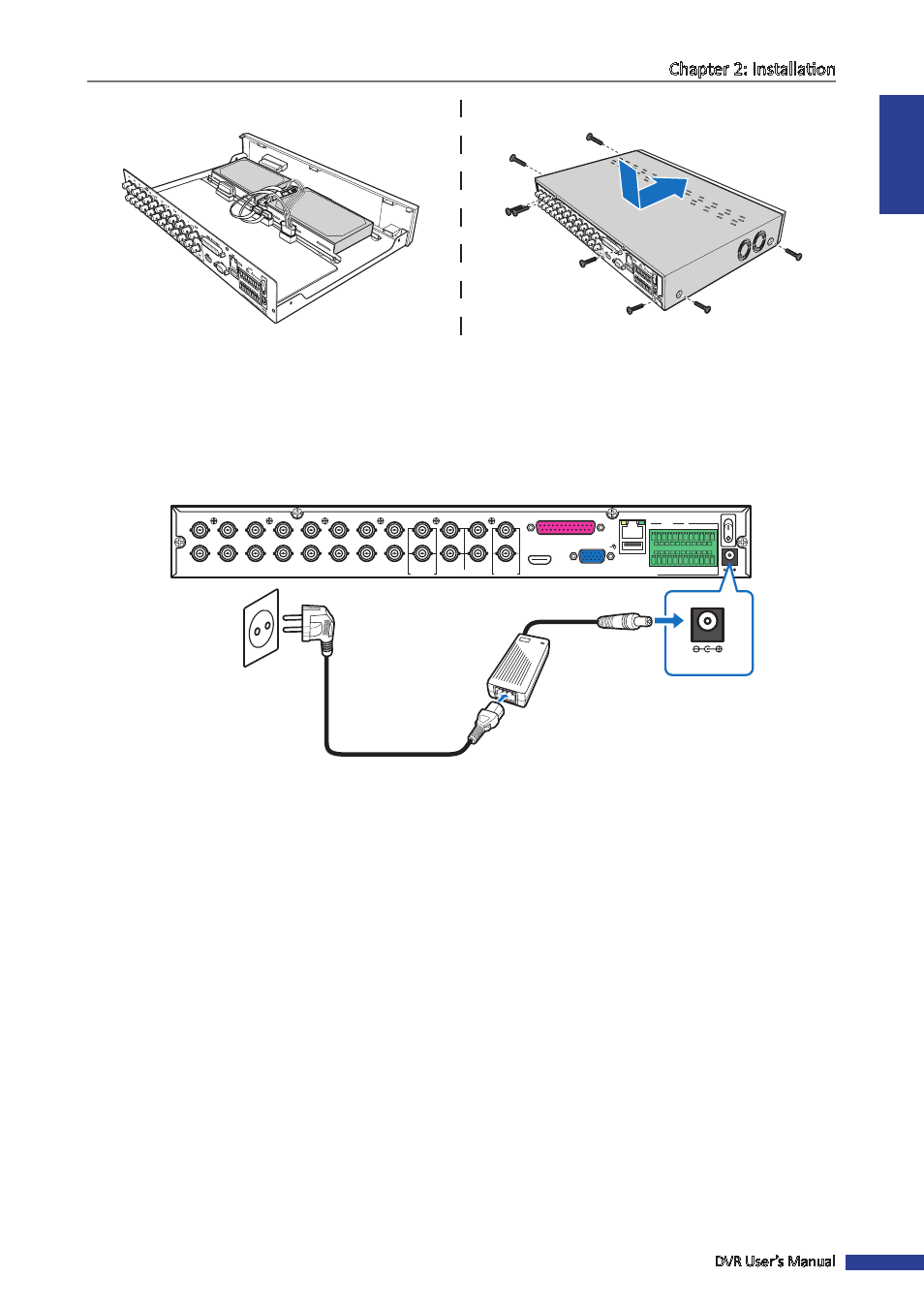

2.2 Connecting the Power
Use only the supplied power adapter and power cord that came with the DVR.
VGA
AUDIO IN (CH5-CH16)
HDMI
DC 12V
LAN
MAIN
SPOT
AUDIO OUT
VIDEO OUT
AUDIO IN
2
4
1
3
MAIN
SPOT
CH8
CH16
CH7
CH15
CH6
CH14
CH5
CH13
CH4
CH12
CH3
CH11
CH2
CH10
CH1
CH9
G
1
2
3
4
5
6
7
8
9
10
11
+
-
NO COM
G
16
15
14
13
12
RS-485
OUT
IN
ALARM
DC 12V
Power adapter
Power cord
Wall outlet
1
Properly connect one end of the power adapter into the power cord.
2
Plug the other end of the power adapter to the power connector on the back of the DVR.
3
Plug the other end of the power cord into the wall outlet. The DVR automatically powers on.
