LC-502P/LC-508P
5.1 Connecting Wires - Removing Terminal Blocks
Follow the instructions in Figure 5 when connecting wires to the controller or when removing
terminal blocks from the controller.

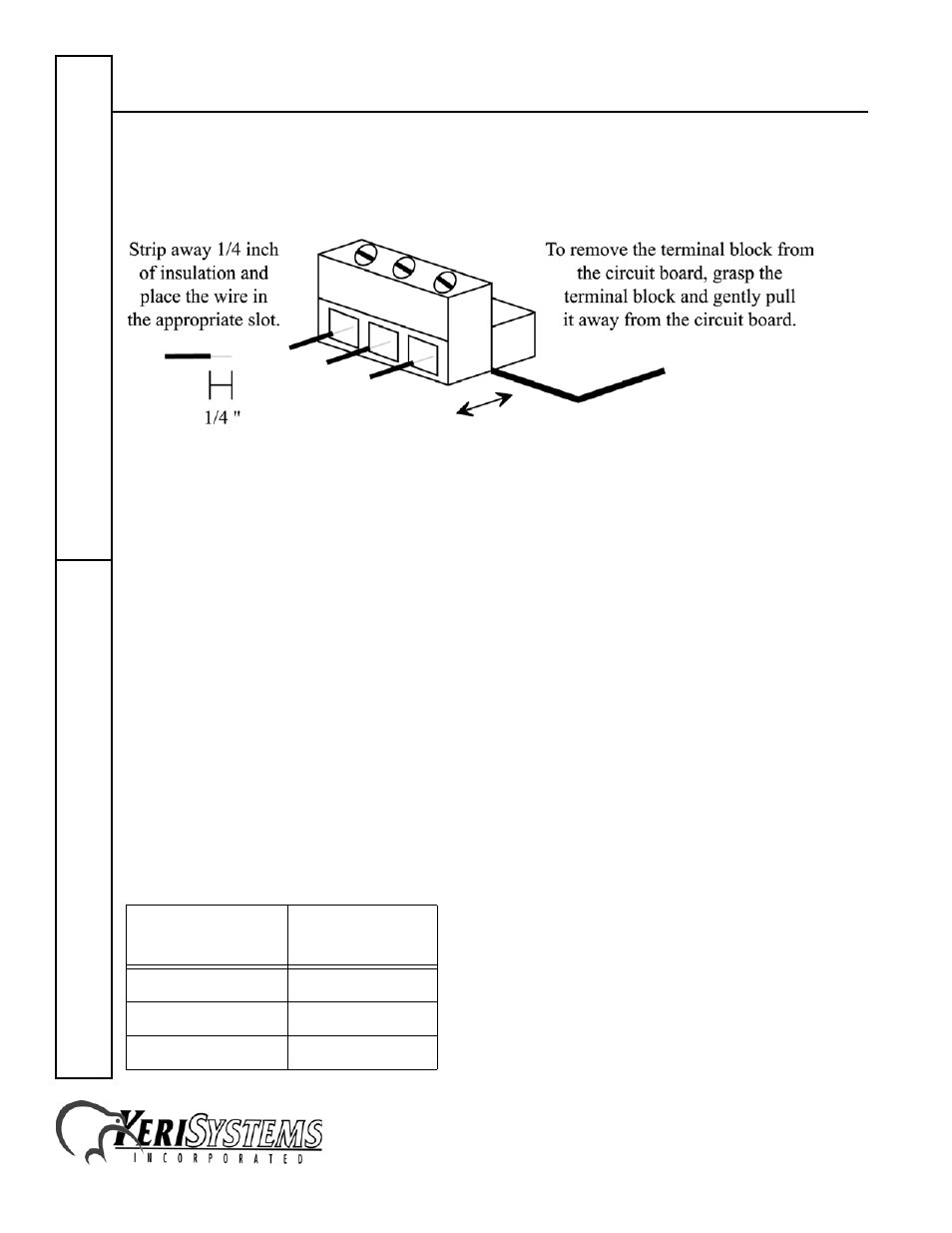

Figure 5: Connecting Wires and Removing Terminal Blocks
5.2 LC-502P Wiring Connections
The following connections are made to install the LC-502P Elevator Control panel (see Figure 3 on
page 8).
• Floor Control Relay
• RS-485 Controller Network
• Reader Daisy-Chain
• Earth Ground and Power
5.2.1 Floor Control Relay
The Floor Control Relay is connected to the floor controls at the elevator panel. If a controller has
an SB-500 Satellite Board attached to control two floors, connect the lower floor to the A-Floor
Control Relay and connect the higher floor to the B-Floor Control Relay. Make the floor control
relay connections per the information in Table 2 and Figure 6 on page 11.
Table 2: Floor Control Relay
Connection
LC-500P TB-3 Pin
SB-500 TB-7 Pin
Description
1 Normally-Open
2 Common
3 Normally-Closed
