Keri Systems KE-8 - Manual (Page 2)

KE-8 Controller Enclosure
Installation Guide
Page 2 of 5 P/N: 01515-001 Rev. C
2.0 Mounting the Enclosure
The enclosure has three key-hole slots and three corresponding screw holes for mounting the enclosure securely to a solid
wall surface. Please ensure the mounting surface can handle the weight of the enclosure; a fully loaded enclosure

(4 controllers with peripheral boards and wiring) can weigh 25 pounds (11 kgs) or more. Refer to Figure 1 for the
mounting hole pattern.

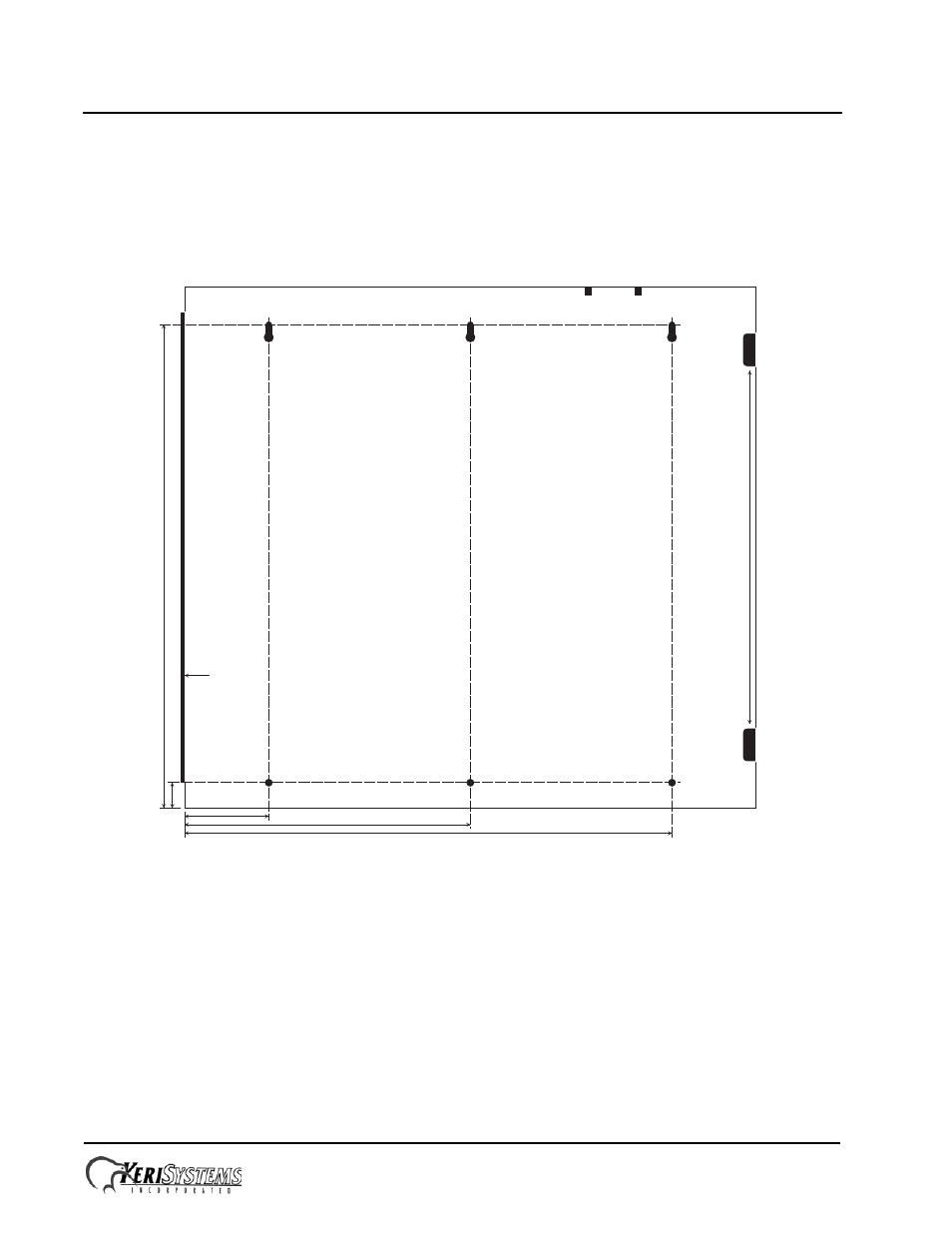

Figure 1 - Mounting Holes in Enclosure Body
0.75 in
14.375 in
2.50 in
8.50 in
14.50 in
Enclosure
Lock Tabs
Lid
Hinge
Tamper Annunciation Board Mounting PIMs
Enclosure Body - TOP
