MS-7000: SuperStar Reader

2305 Bering Drive

01826-001 Rev. G

San Jose, CA 95131 USA
(800) 260-5265 (408) 435-8400 FAX (408) 577-1792
Web: www.kerisys.com E-mail: [email protected]

Page 5 of 8

MS-7000

Quick S

tart Guide

3.3

IntelliProx Connections

The reader connects to TB1, pins 1 through 6.

Connecting to the IntelliProx – TB1

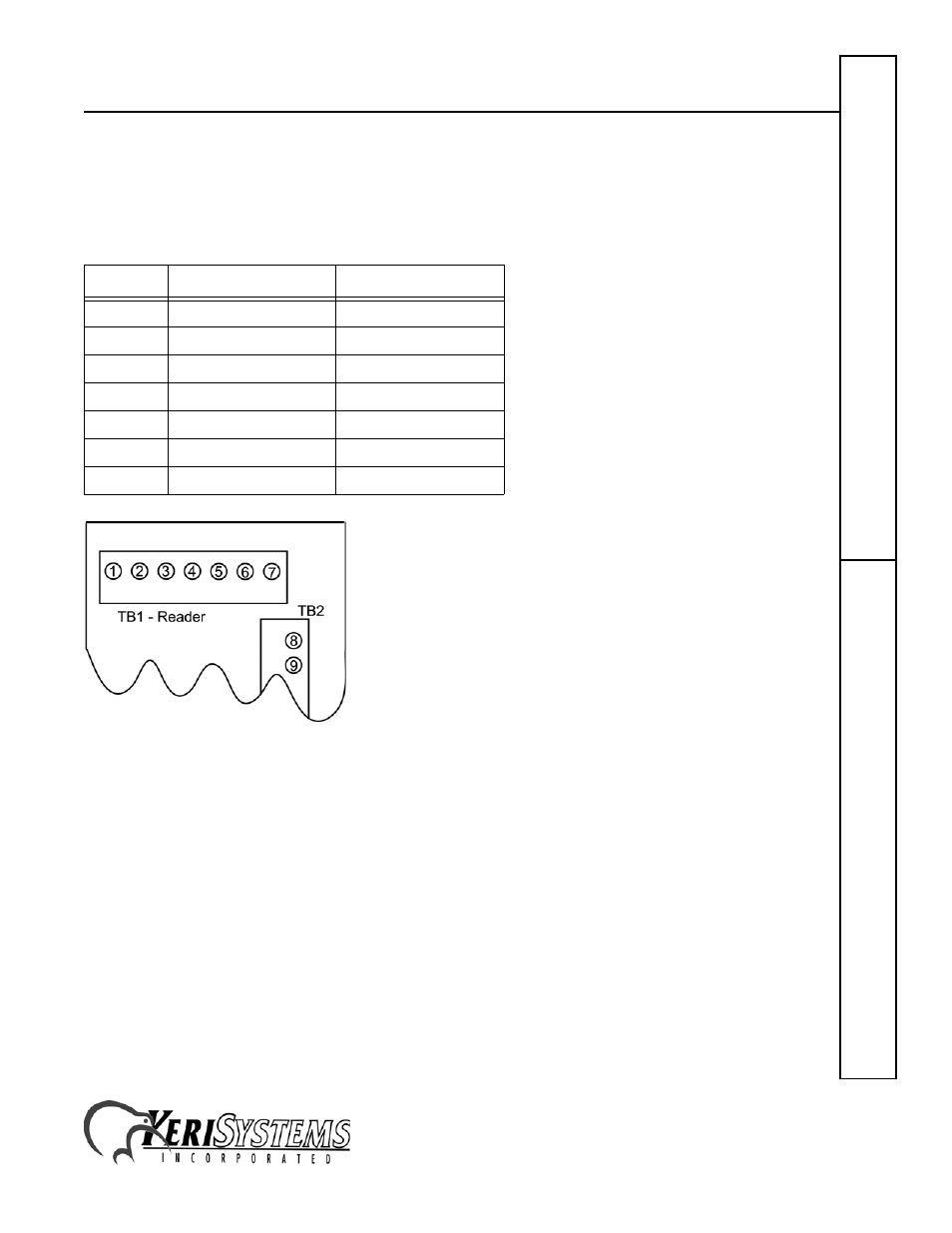

Figure 4: IntelliProx Connections

Pin #

Function

Wire Color

1

Reader Antenna

Blue

2

Beeper

Green

3

Greeen LED

Brown

4

Red LED

White

5

Reader Power

Red

6

Reader Ground

Black

6

Shield

Silver
