5. Basic Photography
-29-
12 Review the image.
The fundus images and study information are displayed in the control software. Check the images.
To take images of the other eye, repeat steps 7 and the following.
13 End the study.
End the study with the control software.

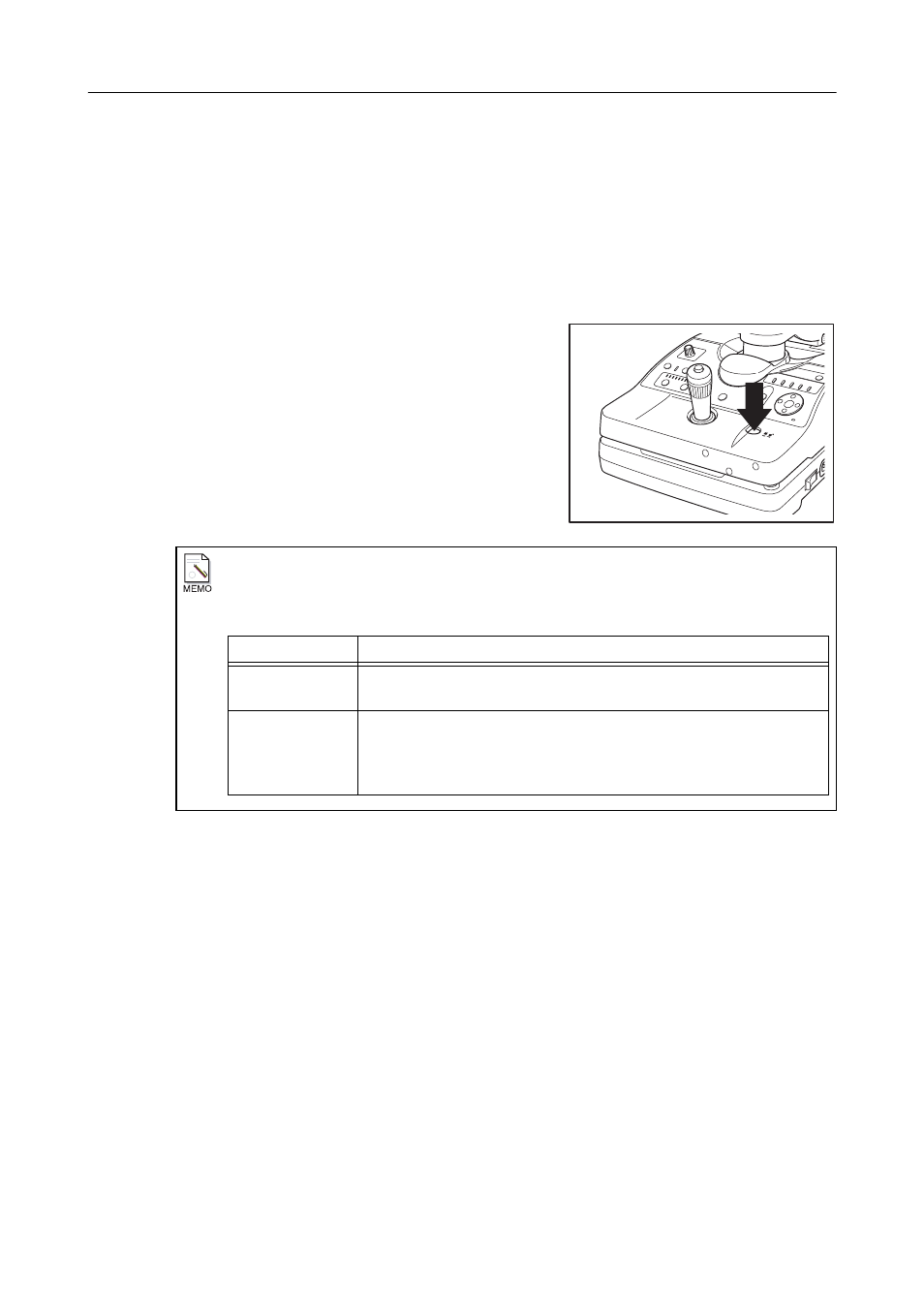

14 Lock the stage unit.
Press the stage unit lock button to lock the stage unit.
15 Turn off the power of the retinal camera.
Concerning locking the stage unit
When the stage unit lock button is pressed, the stage unit can be locked or unlocked in the
following two places.
Lock position Description
Locked at center
Center position of stage unit (The unit is locked here upon completion of
the examination.)
Lock at front right
Position where the stage unit has been drawn to the front right.
(This protects the patient’s eyes from unintended operations either while
an examination is being undertaken or after an examination has been
completed.)
