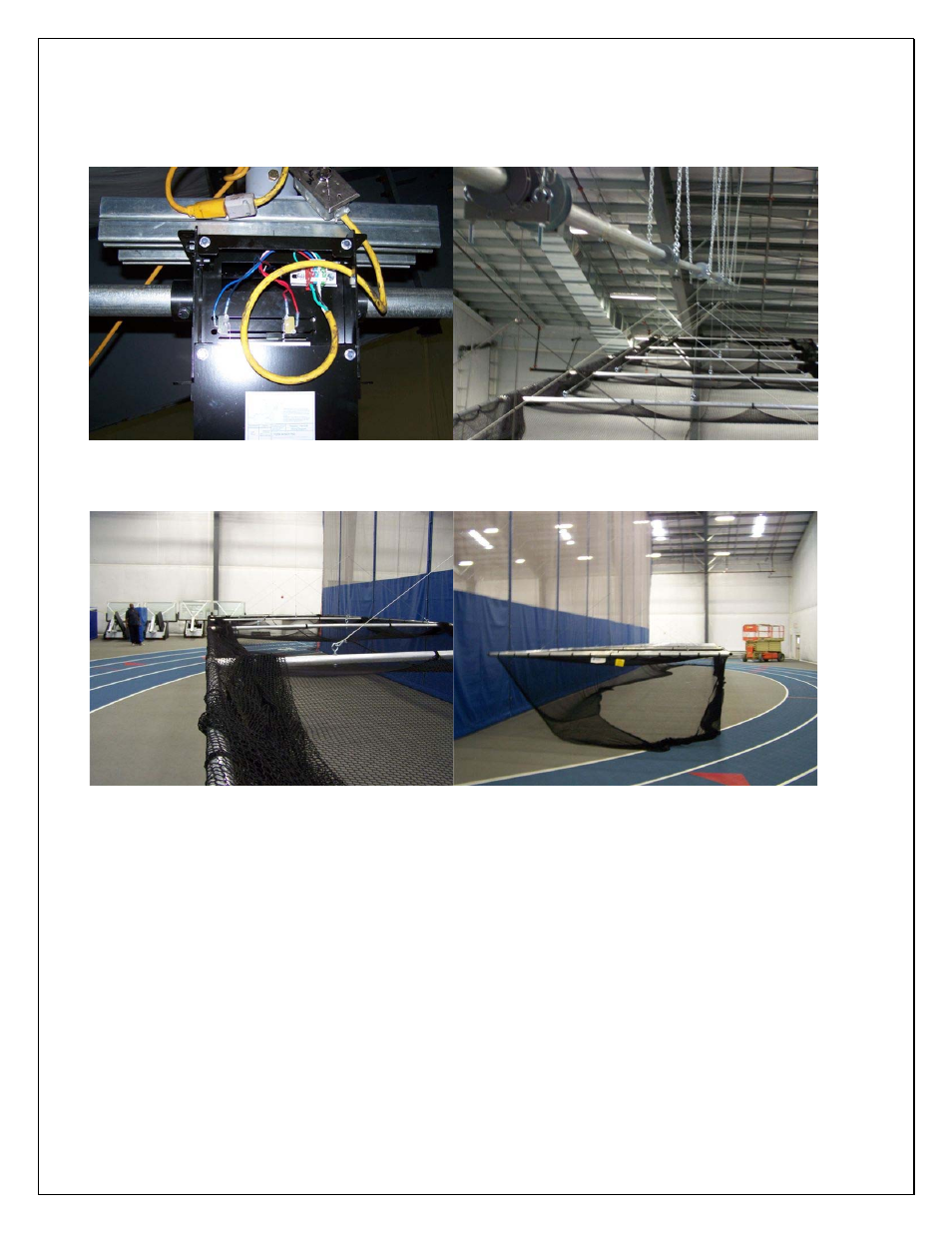

SET THE UPPER LIMIT SWITCH OF THE WINCH.
1. It is recommended that the upper limit be set with a margin of safety. The highest cable
clamp on the hoist cable should come to rest between 8 and 12” below the drive pipe.
LOWER THE FRAME AND ESTABLISH AN ADJUSTED LOWER LIMIT APROX
3’ AFF
UNROLL THE NET FROM THE TOP OF THE FRAME TO HANG FREELY
RAISE THE FRAME TO 10’ AFF
1. THIS SHOULD LEAVE APROX 1’ OF NET ON THE GROUND AND IS DESIREABLE
IF SO EQUIPPED. INSTALL A TARGET TO THE BATTERS END OF THE NET.
1. REMOVE TARGET PRIOR TO HOISTING
