TRIM ANY EXCESS THREAD ROD THAT MAY EXIST.

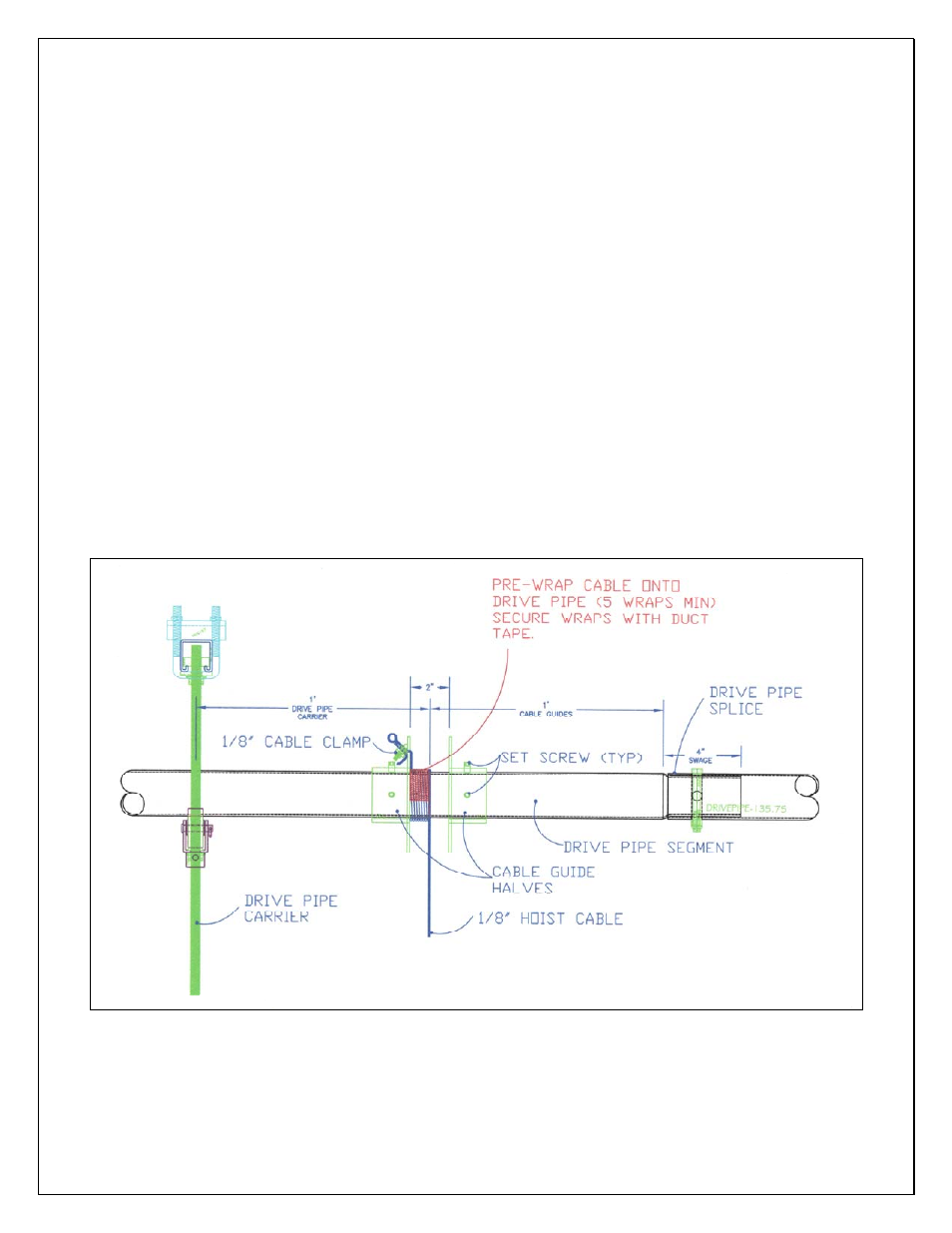

POSITION AND SECURE THE CABLE GUIDE PAIRS AND HOIST CABLES.
1. Each cable guide pair should be located between a drive pipe carrier and a drive pipe splice.
 IT IS CRITICAL THAT THE GUIDES BE DIRECTLY ABOVE THE HOIST CABLE
LOCATIONS. THE FIRST GUIDE IS 2’ FROM THE FRAME EDGE AND
SUBSEQUENT GUIDES ARE 11’ C/C.
2. The cable guide pairs should be positioned to allow 2” of space between the discs.
3. The 2” space should be centered and is positioned 1’ away from the nearest DPC-A.
4. Secure the Cable guides to the Drive pipe by tightening the 5/16 Set screws against the
drive pipe.
5. Pre-wrap a hoist cable with a min of 5 wraps around the drive pipe and pass the top end of
the cable through the hole in one side of the cable guide pair. Outside the 2” opening the
cable should be secured to itself with the use of a cable clamp making a loop in the cable.
6. The cable clamp should be brought tight against the disc and all slack removed from the
cable wraps on the drive pipe.
7. Align all the wraps together against the disc creating neat rows of cable.
8. Secure these rows to the drive pipe by placing duct tape over the rows to prevent them from
moving.
9. Allow the remaining length of cable to drop to the floor for installation to the frame at a
later time.
