Page 14
© 2010 Jaypro Sports Equipment BBC-700B-M 02-08-2012
14 of 24

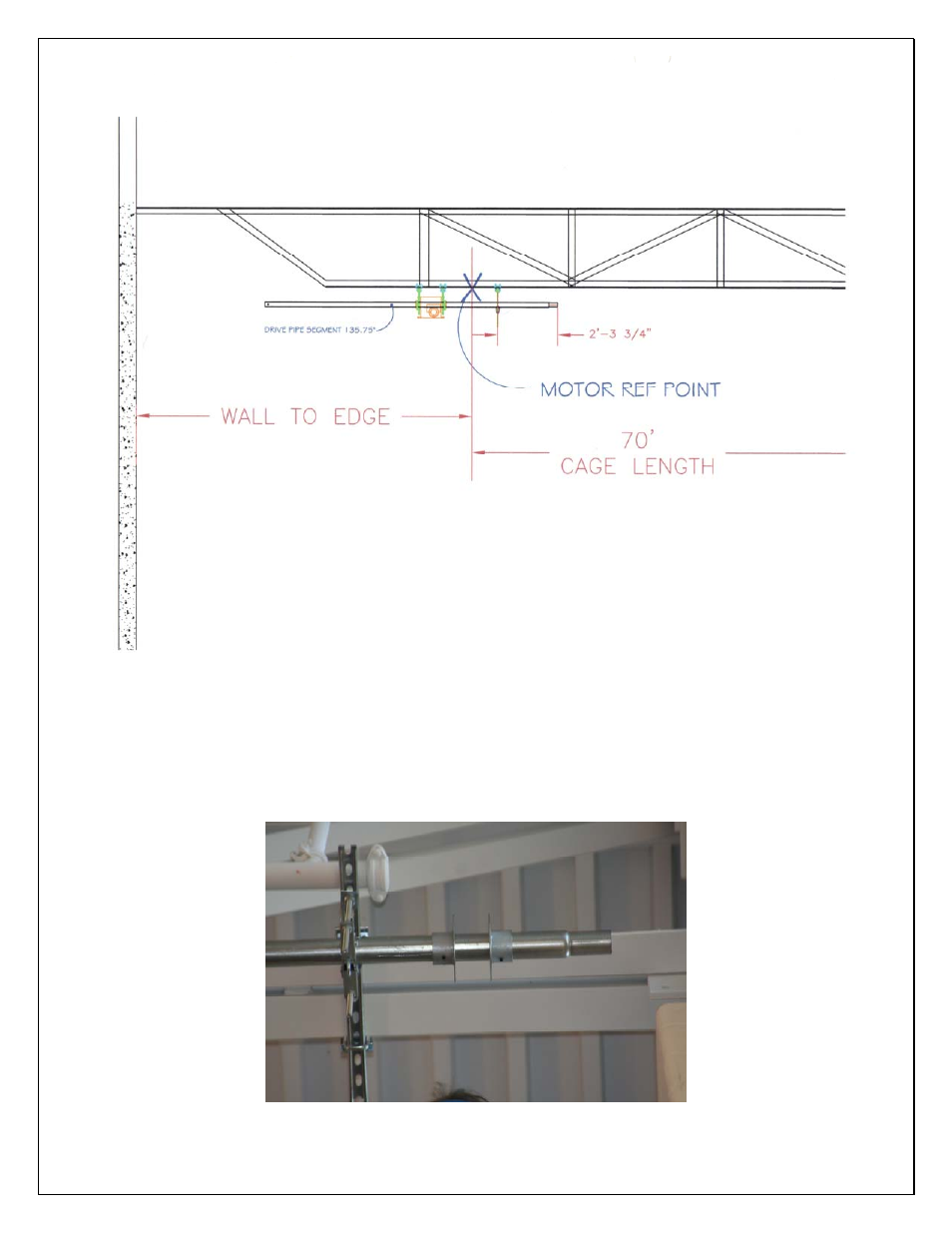

FIGURE 6- DRIVE PIPE SEGMENT
INSTALL A PAIR OF CABLE GUIDES ONTO THE DRIVE PIPE.
1. Slip a pair of cable guides on to the drive pipe.
2. Position the cable guides with the large discs next to each other.
3. DO NOT tighten these to the drive pipe at this point.
