Cub Cadet Ex32002 - Manual (Page 90)

Ex Series Ex3200
REF
NO. PART NUMBER DESCRIPTION QTY
1 CY-1A8160-29000 NEUTRAL, HST ASSY 1
2 CY-194990-22140 NUT W/WASHER 8 2
3 CY-1A8160-29150 BRACKET, NEUTRAL CMP 1
4 CY-1A8160-29270 BOLT, STOPPER 2
5 CY-1A8160-29280 TURNBUCKLE, NEUTRAL 1
6 CY-1A8160-29300 ARM, RETURN ASSY 1
7 CY-24550-015120 BUSH 15X12 2
8 CY-1A8160-29440 BRACKET, ROLLER ASSY 1
9 CY-22272-000070 CIRCLIP E- 7 1
10 CY-24104-060000 BEARING 6000UUC3 1
11 CY-24550-015120 BUSH 15X12 2
12 CY-198280-29490 SPRING, 1
13 CY-1A8160-29800 PLATE,ADJUST CMP 1
14 CY-22137-140000 WASHER 14,POLISHED 2
15 CY-22272-000120 CIRCLIP E-12 2
16 CY-26106-100302 BOLT M10X 30 PLATED 2
90

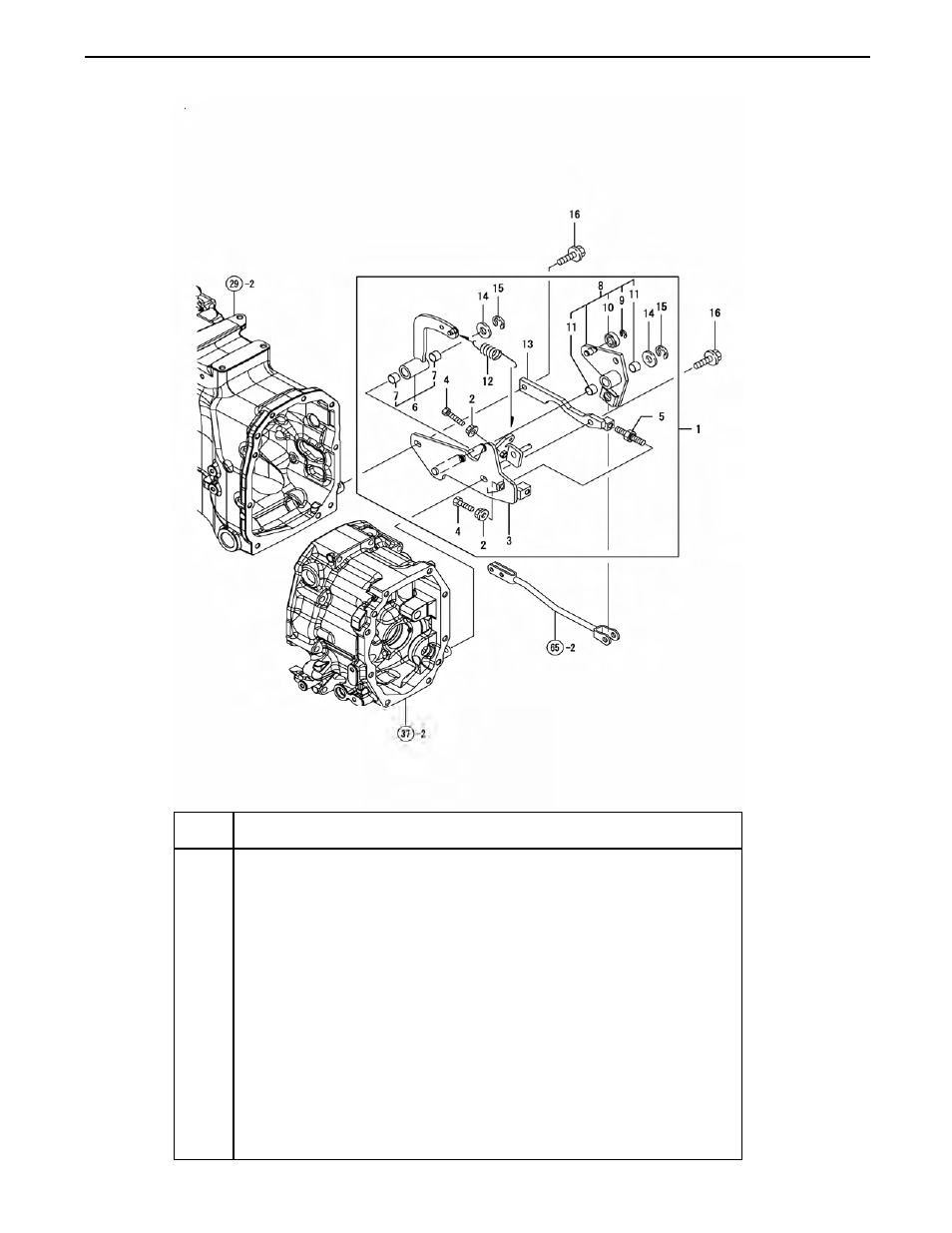

FIG. 53. HST LINK
Copyright 2007 Cub Cadet Yanmar LLC
