Ex Series

Ex3200

REF

NO.

PART NUMBER

DESCRIPTION

QTY

1

CY-798220-01111

LEVER KIT, ACCELERATOR

1

2

CY-194740-00160

WASHER 10, CONICAL

4

3

CY-198220-01110

LEVER, CONTROL

1

4

CY-198165-01130

PLATE, FRICTION

1

5

CY-198220-01140

BRACKET, LEVER

1

6

CY-194150-01270

SPACER 20

1

7

CY-198220-01350

LEVER, ACCELERATOR

1

8

CY-194145-61570

WASHER 10

1

9

CY-22157-100000

WASHER 10

1

10

CY-26756-100002

LOCK NUT M10 PLATED

1

11

CY-26986-100002

LOCK NUT 10

1

12

CY-198253-01190

KNOB, THROTTLE LEVER

1

13

CY-1A8160-01320

ROD, ACCELERATOR

1

14

CY-22137-080000

WASHER 8, POLISHED

1

15

CY-22417-250300

COTTER PIN 2.5X30

1

16

CY-26106-080162

BOLT M 8X 16 PLATED

2

17

CY-26716-080002

NUT M 8

2

34

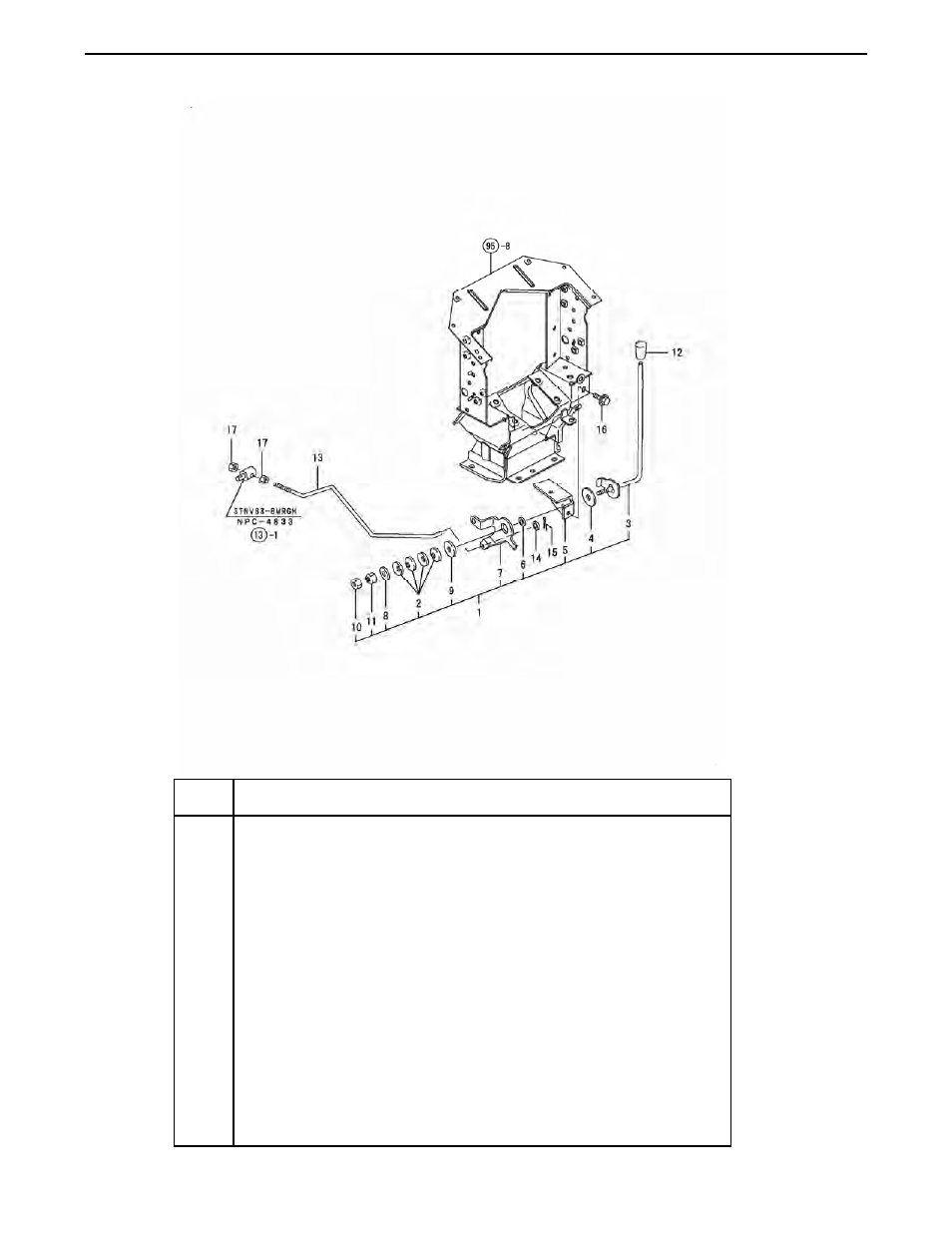

FIG. 3. ACCELERATOR LEVER
