Ex Series

Ex3200

REF

NO.

PART NUMBER

DESCRIPTION

QTY

1

CY-1A8160-56100

PANEL, INSTRUMENT

1

2

CY-198220-53170

SCREW

8

3

CY-1A8160-56110

METER ASSY

1

4

CY-1A7335-56120

PANEL

1

5

CY-198220-56130

PACKING

1

6

CY-198220-56140

GLASS

1

7

CY-198220-56150

RETAINER

1

8

CY-198220-56160

PACKING

1

9

CY-1A8160-56200

CASE ASSY

1

10

CY-1A8160-56210

HARNESS, WIRING

1

11

CY-198220-56220

LAMP

3

12

CY-124617-91920

BULB

3

13

CY-198220-56230

SCREW

6

14

CY-26022-030062

SCREW M 3X 6

2

15

CY-194555-56890

GROMMET 15

2

16

CY-194275-56900

CABLE, HOUR-METER

1

17

CY-194145-61651

NUT, M5

4

18

CY-194940-61790

SCREW 5X16

4

19

CY-26589-060162

SCREW M6, BINDING

2

134

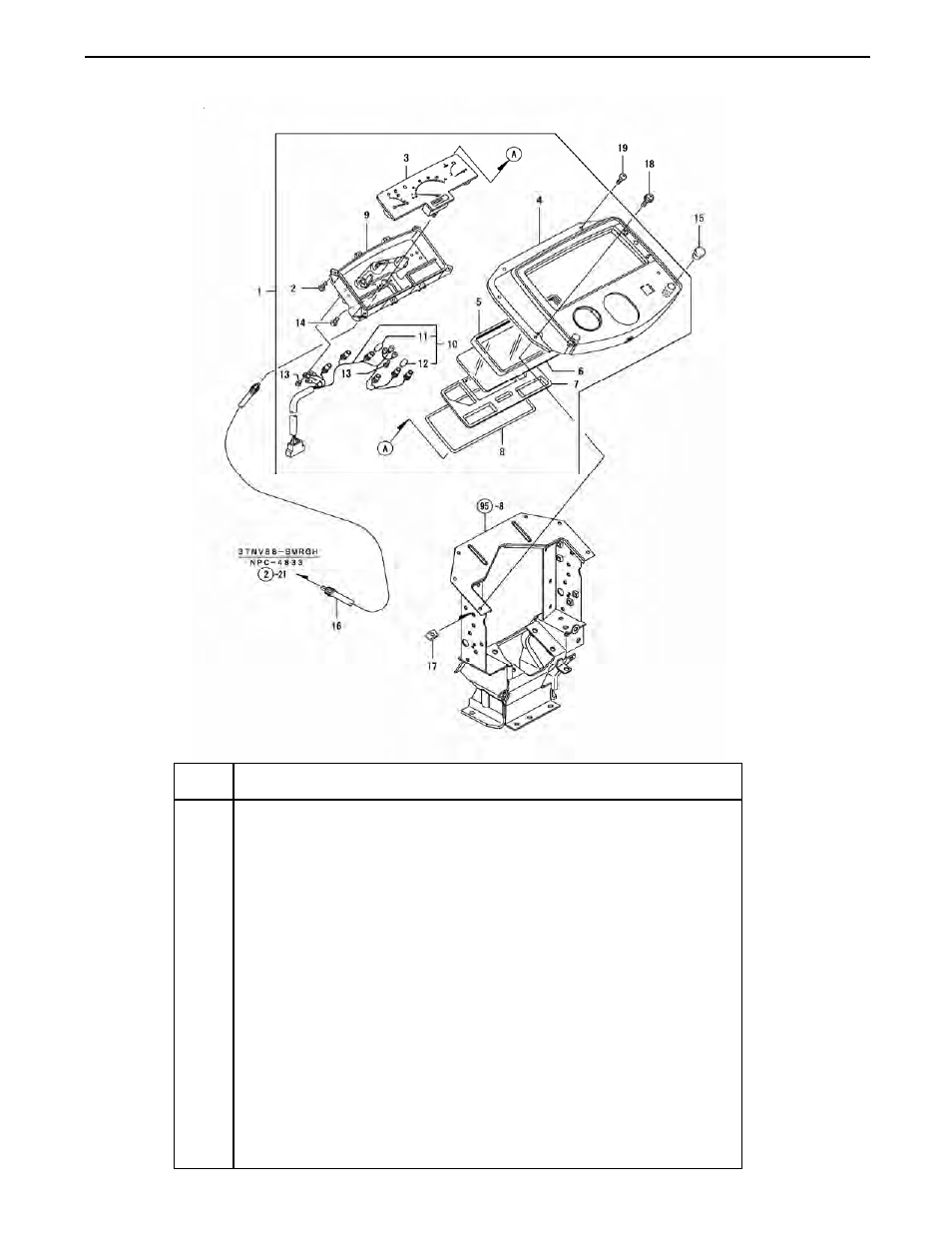

FIG. 88. INSTRUMENT PANEL

Copyright 2007 Cub Cadet Yanmar LLC
