SAVE THESE INSTRUCTIONS
Page 12
English
SETUP
INSTRUCTIONS

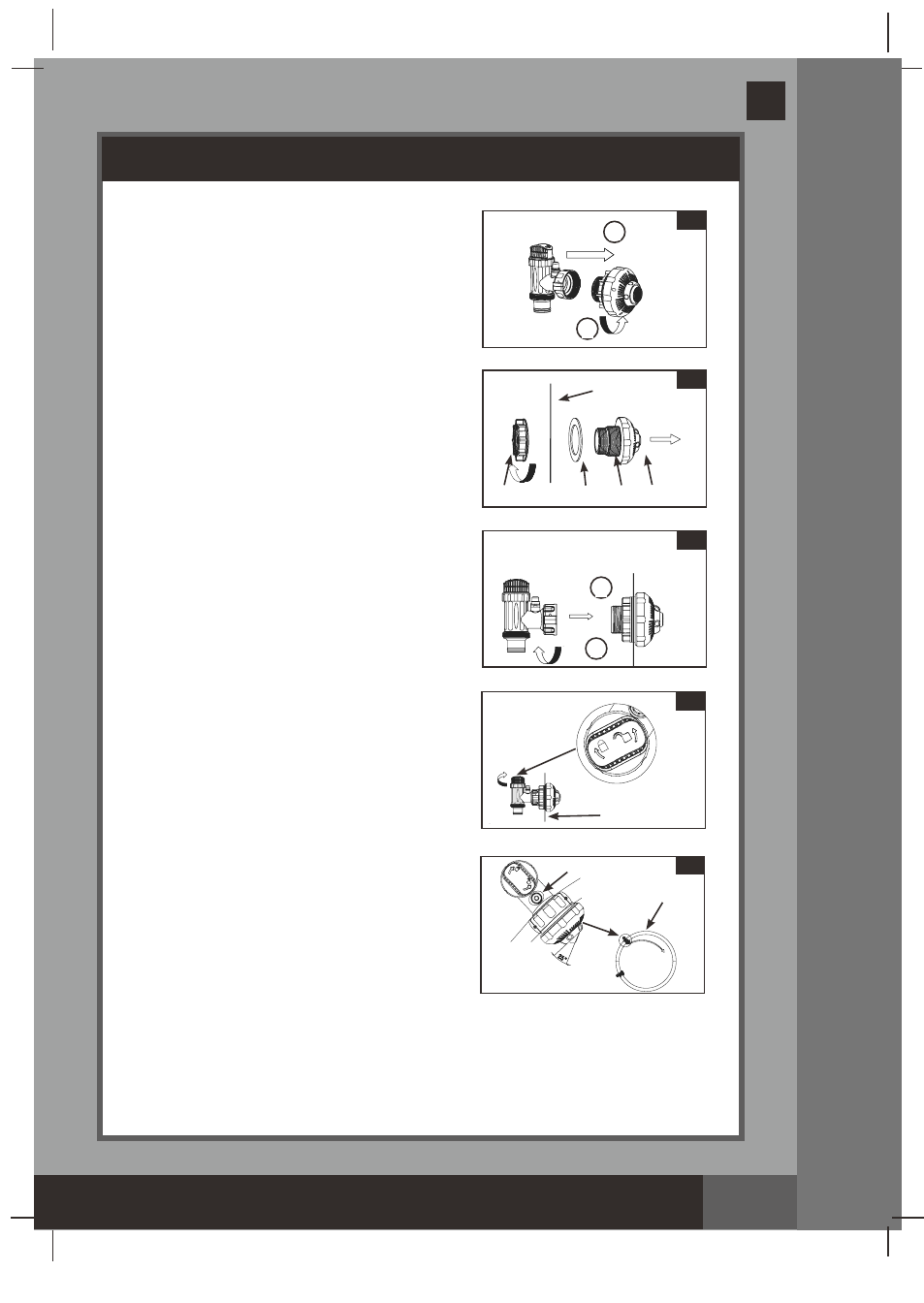

NOZZLE & PLUNGER VALVE SETUP
1. Grasp the nozzle and plunger valve
mechanism.
2. In a counter-clockwise motion unscrew
plunger valve union from the threaded
strainer connector
(24) (see drawing 5).
Be careful not to lose the step rubber
washer
(21). Place the plunger valve on
the ground in a safe place.
3. In a counter-clockwise motion unscrew the
strainer nut
(22) from the threaded
connector
(24). Leave the flat washer (23)
on the connector
(24).
4. Install the nozzle and plunger valve at the
upper position of the pool inlet.
From the
inside of the pool liner insert the
connector
(24) into one of the pre-cut holes
with the washer remaining on the
connector to be placed against the inside
of the liner wall.
5. Before assembly, lubricate the threads with
a petroleum jelly. Then, with the flat side of
the strainer nut
(22) facing the outside wall
of the liner in a clockwise motion screw the
strainer nut
(22) back onto the threaded
connector
(24) (see drawing 6).
6. Finger tighten the adjustable pool inlet
nozzle
(25) and the strainer nut (22) onto
the threaded connector
(24).
7. Grasp the plunger valve assembly. Make
sure the step washer
(21) is in place.
8. In a clockwise motion turn the plunger
valve handle to close position. Ensure the
plunger valve is securely closed. This will
prevent water from flowing out during filling
of the pool
(see drawing 8).
9. NOTE: Never cover the vacuum release
valve
(35) unless it is damaged or leaking.
Replace the vacuum release valve
immediately.
10. Adjust the direction of the nozzle head
pointing away from the pool outlet for a
better circulation result
(see drawing 9).
11. The pool liner is now ready to be filled with
water. Consult the above-ground-pool
owner’s manual for filling instructions.
5
2
1
7
1
2
6
23
24 25
INSIDE
LINER WALL
22
9
WATER
FLOW
POOL
8
INSIDE
LINER WALL
35
