SETUP
INSTRUCTIONS

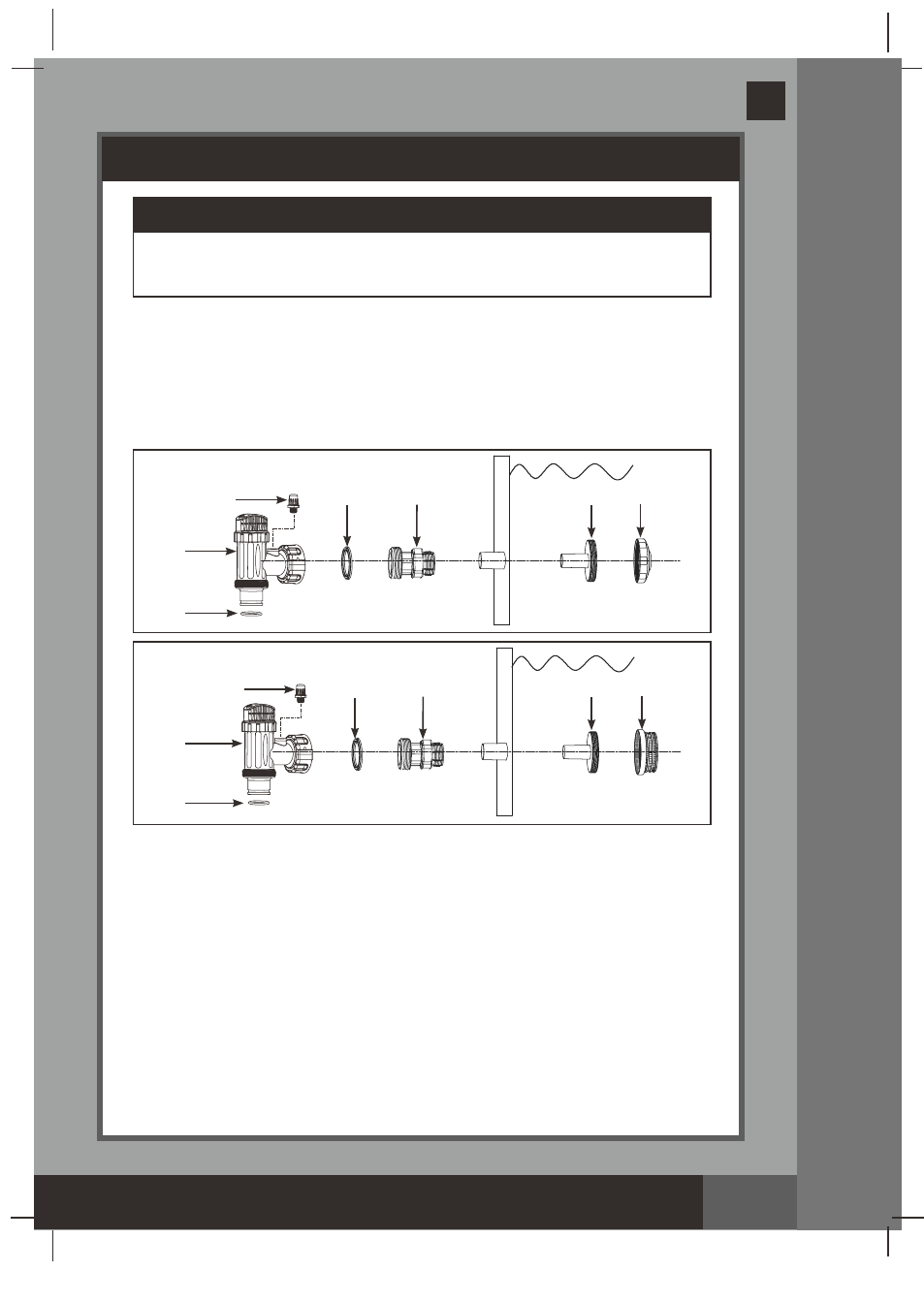

STRAINER & PLUNGER VALVE SETUP
Strainer & Plunger Valve Setup (small AGP)
The strainer grid prevents large objects from jamming and/or damaging the
filter pump. The plunger valve assembly prevents water from flowing into the
filter pump while the filter cartridge is being placed or cleaned. If your pool
has an inflatable top ring, install the strainer, nozzle and plunger valve before
inflating the pool liner top ring. The parts numbers here onward, refer to the
parts depicted in the Parts List section of this manual. To install, do the
following:
1. Grasp the strainer and plunger valve mechanism.
2. In a counter-clockwise motion unscrew plunger valve union from the threaded
strainer connector (24). Be careful not to lose the step rubber washer (21).
3. Grasp the plunger valve assembly. Make sure the step washer (21) is in place.
Connect adaptor B (26) to plunger valve union.
4. Repeat steps 1 through 3 for nozzle and plunger valve mechanism.
5. Remove wall plug and then insert the strainer (27 & 29) into the lower position
of protruding hose connection, and the nozzle (27 & 28) into the upper position
of protruding hose connection. Adaptor B (26) fits over the strainer
connection (27) inserted into the connection.
6. Turn both plunger valve handles fully clockwise until they stop. This closes the
valve, prevents the water from flowing out of the pool.
7. The pool liner is now ready to fill with water. Consult the above-ground-pool
owner's manual for filling instructions.
IMPORTANT
The Saltwater System/Filter Pump must be installed as the last piece of
pool equipment in the water return line to the pool. This location extends
the life of the titanium plates.
19
20
21 26 27 28
19
20
21 26 27 29
35
35
