SAVE THESE INSTRUCTIONS

Page 11

English

SETUP

INSTRUCTIONS

The strainer grid prevents large objects from jamming and/or damaging the

filter pump. If your pool has an inflatable top ring, install the strainer, nozzle

and plunger valve before inflating the pool liner top ring. The part numbers

here onward refer to the parts depicted in the Parts List section of this

manual. To install, do the following:

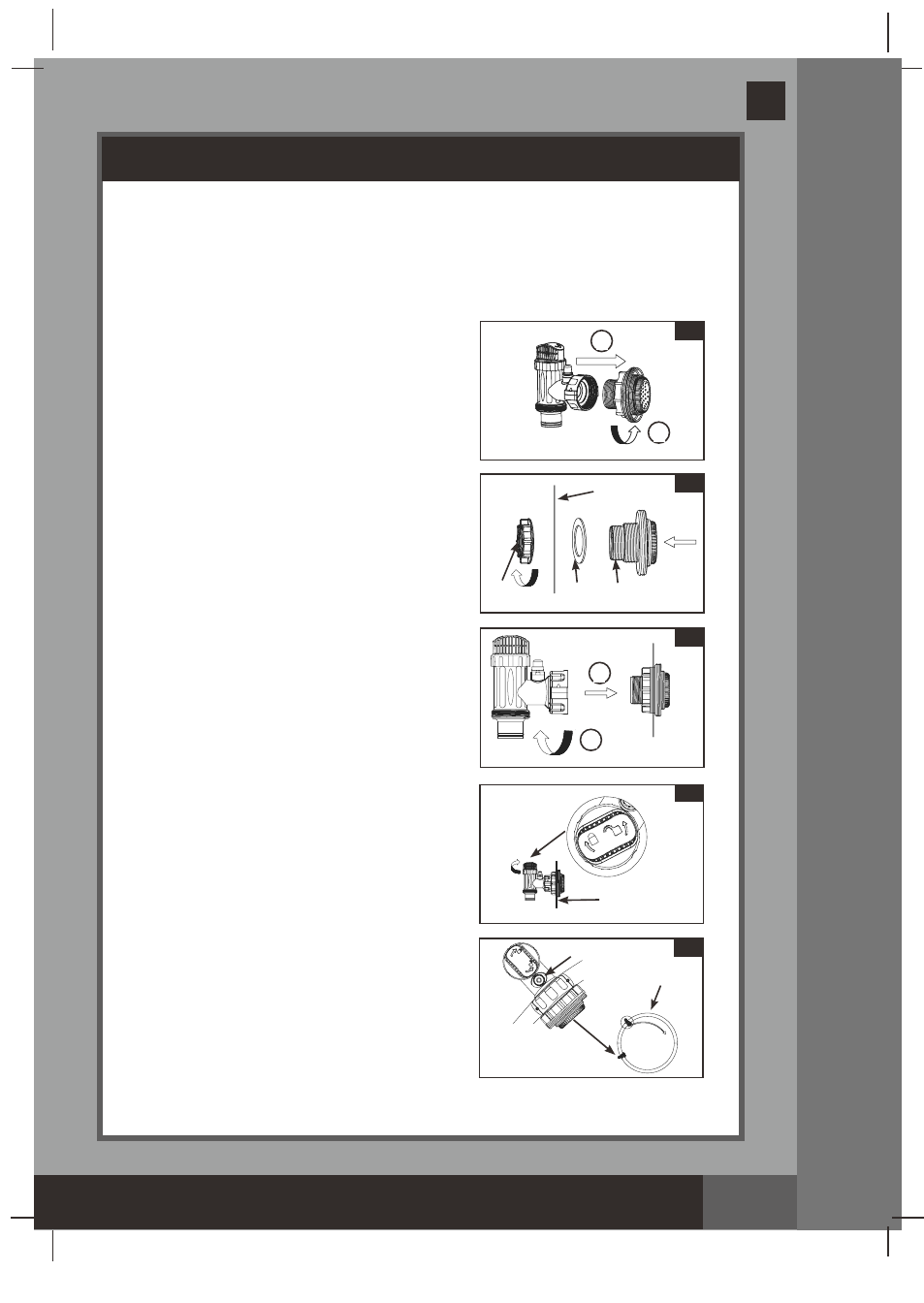

STRAINER & PLUNGER VALVE SETUP (continued)

1. In a counter-clockwise motion unscrew

plunger valve union from the threaded

strainer connector

(24) (see drawing 1).

Be careful not to lose the step rubber

washer

(21). Place the plunger valve on

the ground in a safe place.

2. In a counter-clockwise motion unscrew the

strainer nut

(22) from the threaded

connector

(24). Leave the flat washer (23)

on the connector

(24).

3. Install the strainer and plunger valve at the

lower position of pool outlet (marked "+").

From the inside of the pool liner insert the

connector

(24) into one of the pre-cut holes

with the washer remaining on the

connector to be placed against the inside

of the liner wall.

4. Before assembly, lubricate the threads with

a petroleum jelly. Then, with the flat side of

the strainer nut

(22) facing the outside wall

of the liner in a clockwise motion screw the

strainer nut

(22) back onto the threaded

connector

(24) (see drawing 2).

5. Finger tighten the strainer nut (22) onto the

threaded connector

(24).

6. Grasp the plunger valve assembly. Make

sure the step washer

(21) is in place.

7. In a clockwise motion screw the plunger

valve union

back onto the threaded

connector

(24) (see drawing 3).

8. In a clockwise motion turn the plunger

valve handle to close position. Ensure the

plunger valve is securely closed. This will

prevent water from flowing out during filling

of the pool

(see drawing 4.1).

9. NOTE: Never cover the vacuum release

valve

(35) unless it is damaged or leaking.

Replace the vacuum release valve

immediately.

INSIDE

LINER WALL

4.2

WATER

FLOW

POOL

4.1

INSIDE

LINER WALL
