INSTALLATION
Thank you for selecting the Philips CDC 925 Compact
Disc Changer.
A Compact Disc Changer of the state-of-the-art Philips 900
series, the CDC 925 combines supreme playback quality
vi/ith a high degree of user-friendliness by offering the
following possibilities;
- changing CDs during play;
- quick access to a particular CD by means of QUICK PLAY;
- storing 30 tracks from different CDs in any desired order
in the changer memory;
- storing the required recording time and playing time in the
EDIT mode;
- full integration in ESI remote-controllable HiFi systems of
the Philips 900 series.
ACCESSORIES
With this changer are supplied;
- a connection cable (ANALOG OUT);
- a remote control;
- batteries for the remote control.
POWER SUPPLY SETTING
Check that the type plate on the rear of your changer
indicates the correct supply voltage.
If your mains supply voltage is different, consult your dealer
or our Service Organisation.
Certain versions of this changer are equipped with a voltage
selector (5), which enables you to set the changer to the
correct mains voltage yourself. When changing the voltage
setting, it is also necessary to change the mains fuse (4) to one
of the correct rating; T200 mA (slow-blow fuse) for 110/127 V;
T100 mA (slow-blow fuse) for 220 V - 230 V/ 230 V - 240 V.
FITTING A MAINS PLUG (U.K. only)
This apparatus is fitted with an approved moulded 13 Amp plug.
To change a fuse in this type of plug proceed as follows;
• Remove fuse cover and fuse.
• Fix new fuse which should be a BS1362 5A, A.S.T.A. or
BSI approved type.
• Refit the fuse cover.
If the fitted plug is not suitable for your socket outlets, it should
be cut off and an appropriate plug fitted in its place.
If the mains plug contains a fuse, this should have a value of 5A.
If a plug without a fuse is used, the fuse at the distribution board
should not be greater than 5A.
NOTE: The severed plug must be destroyed to avoid a possible
shock hazard should it be inserted into a ISA socket elsewhere,
HOW TO CONNECT A PLUG
isThe wires in the mains lead are coloured in accordance with
the following code; BLUE - 'NEUTRAL' ('N') BROWN - 'LIVE' CL')
• The BLUE wire must be connected to the terminal which is
marked with the letter 'N' or coloured BLACK.
• The BROWN wire must be connected to the terminal which
is marked with the letter 'L' or coloured RED.
• Do not connect either wires to the earth terminal in the plug
which is marked by the letter 'E' or by the safety earth
symbol or coloured green or green-and-yellow.
Before replacing the plug cover, make certain that the cord
grip is clamped over the sheath of the lead - not simply over
the two wires.

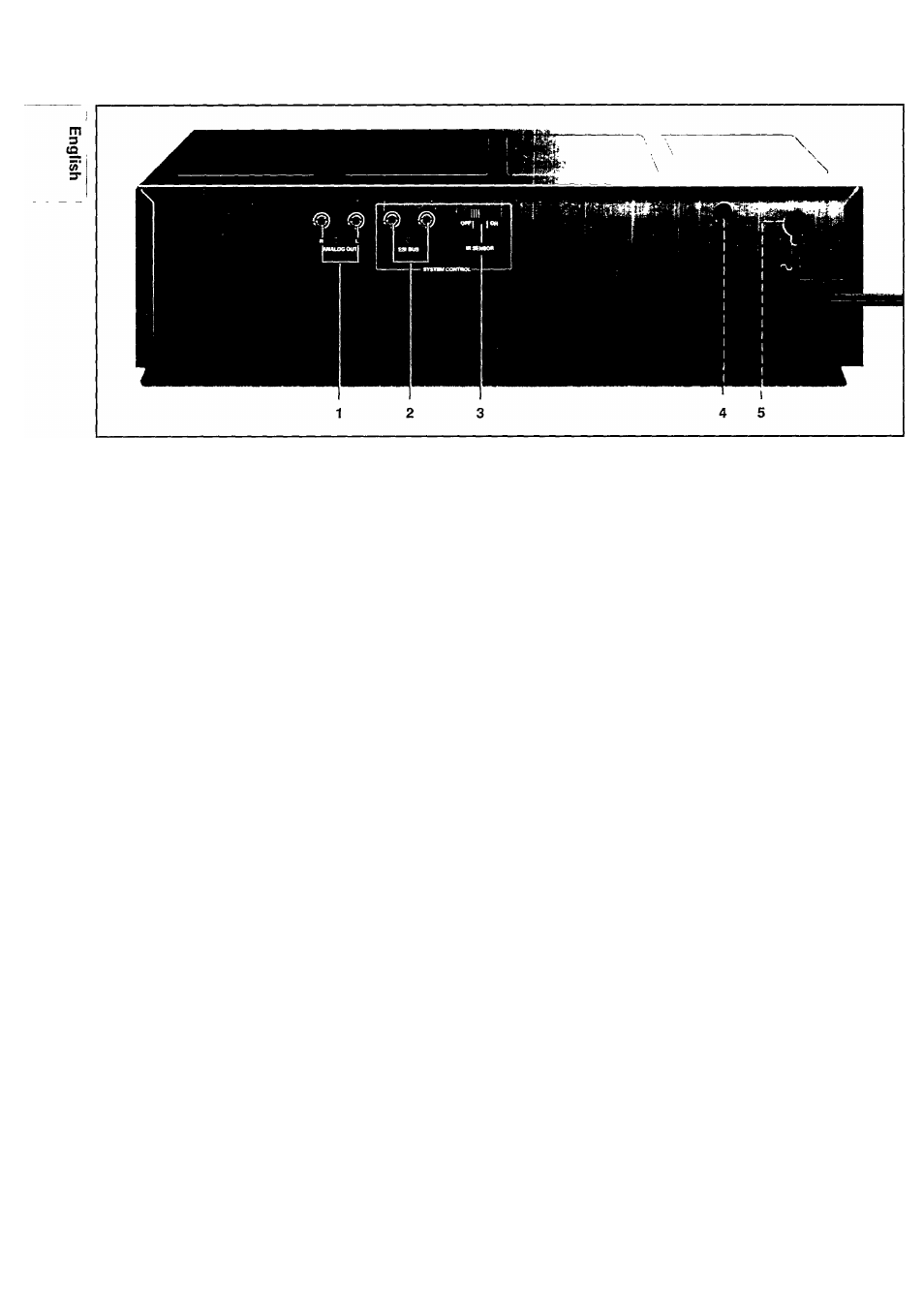

CONNECTIONS
1 ANALOG OUT
For the connecting cable to the amplifier.
• Insert a red plug into the 'R' socket and the other plug into
the 'L' socket.
• Insert the two other plugs into the corresponding sockets of
the CD or AUX input of your amplifier.
You can also use the TUNER or TAPE IN connection, but
never the PHONO input!
2 ESI BUS (Enhanced System Intelligence)
For connecting up the equipment when you are incorpo­
rating the changer in a HiFi system with ESI BUS
connection (e.g. the PHILIPS 900 series) or its own remote
control system.
3 IR SENSOR OFF ON
Switching the l(nfra) R(ed) SENSOR on and off.
IMPORTANT!
When the changer is incorporated in a HiFi system with ESI
BUS connection, this switch should always be in the OFF
position.
When the changer is not incorporated in a HiFi system with
ESI BUS connection, the switch should be in the ON position.
When switching the IR SENSOR on and off, the CD changer
should always be switched off.
