Installation
Speaker connections

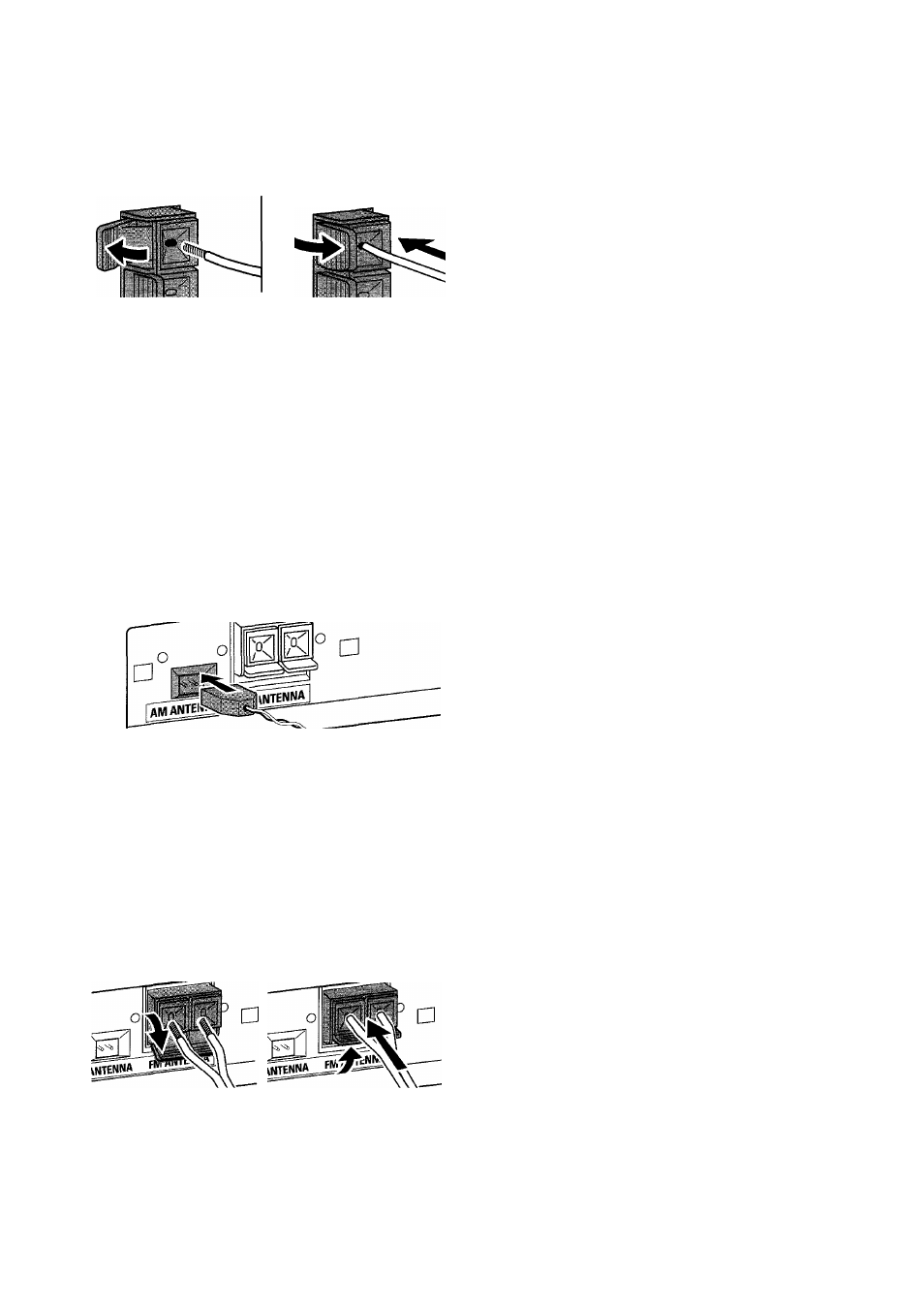

The speaker connections are click-fit connectors, Use them
as shown below.
1
2
1
2
3
Connect the colored (or marked) wire to the red terminal
and the black (or unmarked) wire to the black terminal.
Connect;
- Left speaker to L (red and black)
- Right speaker to R (red and black)
Antenna connections
AM antenna
The supplied loop antenna is for indoor use only.
Fit the plug of the loop antenna to AM ANTENNA as
shown below.
Position the antenna as far as possible from theTV, aVCR
and other radiation sources.
Turn the antenna for optimum reception.
2
3
4
FM antenna
The supplied wire antenna can only be used to receive
nearby stations. For better reception we recommend using
a cable antenna system or an outdoor antenna.
Open the FM ANTENNA click-fits by pushing the lever
down as shown below.
Insert each wire of the antenna into one hole.
Close the click-fits using the lever
Move the antenna in different positions for optimum
reception.
2
3
Power
The type plate is located on the rear of the unit.
Check whether the power voltage as shown on the type
plate corresponds to your local power voltage. If it does
not, consult your dealer or service organization.
Make sure all connections have been made before
switching on the power supply.
Connect the supplied power cable to AC MAINS ~ and to
the power outlet.This switches on the power supply.
When the unit is switched to standby, it is still consuming
some power To disconnect the unit from the power
completely, remove the power cable from the power
outlet.
To avoid overheating of the unit, a safety circuit has
been built in. Therefore, your unit may disconnect
under extreme conditions. If this happens, switch the
unit off and let it cool down before reusing it.
Plug and Play
This function allows you to store all available radio stations
automatically
qi /ТП Til i C T T o i I
............ J.IM J I ni_u
First setup
1 When you switch on the power ПиТЩ
PRE55 РЕПУ will be scrolled.
2 Press ►!! to start storing.
-► IiMyFRLL is displayed, followed by TUtJER and RUFu.
4 PROG starts flashing.
-► All FM stations, followed by all other stations of other
wavebands with sufRcient signal strength, will be stored.
Note: If no stereo signal is detected, РМЕРК ЯМТРМ|МП will
be displayed. Check the antenna connection or turn the
antenna for optimum reception.
3 When all available radio stations are stored or the memory
for 40 presets is full, storing will stop and the last stored
radio station will play.
0 To exit automatic storing, press ■.
Note: If you exit automatic storing before completion, the
function will restart when you switch on the power supply again.
Restarting Piug and Piay
1 Press ►II for minimum 5 seconds in standby or
demonstration mode.
->RuFu IMBFREL ■■ РРРУ5 РЕПУ will be scrolled.
2 Press ►!! to restart storing.
-» IMS FREE is displayed, followed by FUMRP and RilTO.
-» PROG starts flashing.
-» All previously stored stations will be replaced.
