Interlogix ESL 500 Series - Manual (Page 2)

4300 Series
Wireless Smoke Alarm .
Installation Instructions
1. Connect 405-06 trip wires to trigger circuit. Observe
polarity. [Gray to positive (+) and White to negative (-)].
2. Connect the 405-06 DPDT relay contacts as required.
The first set of contacts are:
common red
closed white-red
open white-blue
3. The second set of contacts are:
common black
closed white-black
open blue
4. When fail safe operation is required, wire the relay in the
powered or energized condition.
5. Do not exceed rating of relay.
6. Testing: 405-06
Test unit in accordance with NFPA 72 Chapter 7 Test
Methods and Frequencies, interface equipment.
To test the 405-06, energize the relay coil and confirm the
contacts tranfer.
Specifications for 405-05 & 405-06
Operating voltage..........................................................8.5-33VDC
Maximum operating current............................34.0 mA at 12 VDC
35.0 mA at 24 VDC
Relay contacts ............................ 2 A at 30 VDC, 1 A at 120 VAC
Operating temperature .................32° F to 120° F (0° C to 49° C)
Operating humidity range .................0 to 85% Non-condensing
Dimensions ..................................1.8 in. (4.6 cm) x 1.7 in. (4.3 cm)
Wire connections ............... 18 AWG stranded, tinned, 18” long
405-06
DPDT Relay Module
For use as a Universal Switch Device
Sentrol-Caddx reser ves the right
to change specifications
without notice.
©2000 Sentrol-Caddx
12345 SW Leveton Dr., Tualatin, OR 97062
Tel.: 503.692.4052 Fax: 503.691.7566
http://www.sentrol.com
U.S. & Canada: 800.547.2556
Technical Service: 800.648.7424
FaxBack: 1.800.483.2495
SENTROL-CADDX
E S L
a p r o d u c t o f s e n t r o l
12859 Rev B 07/00

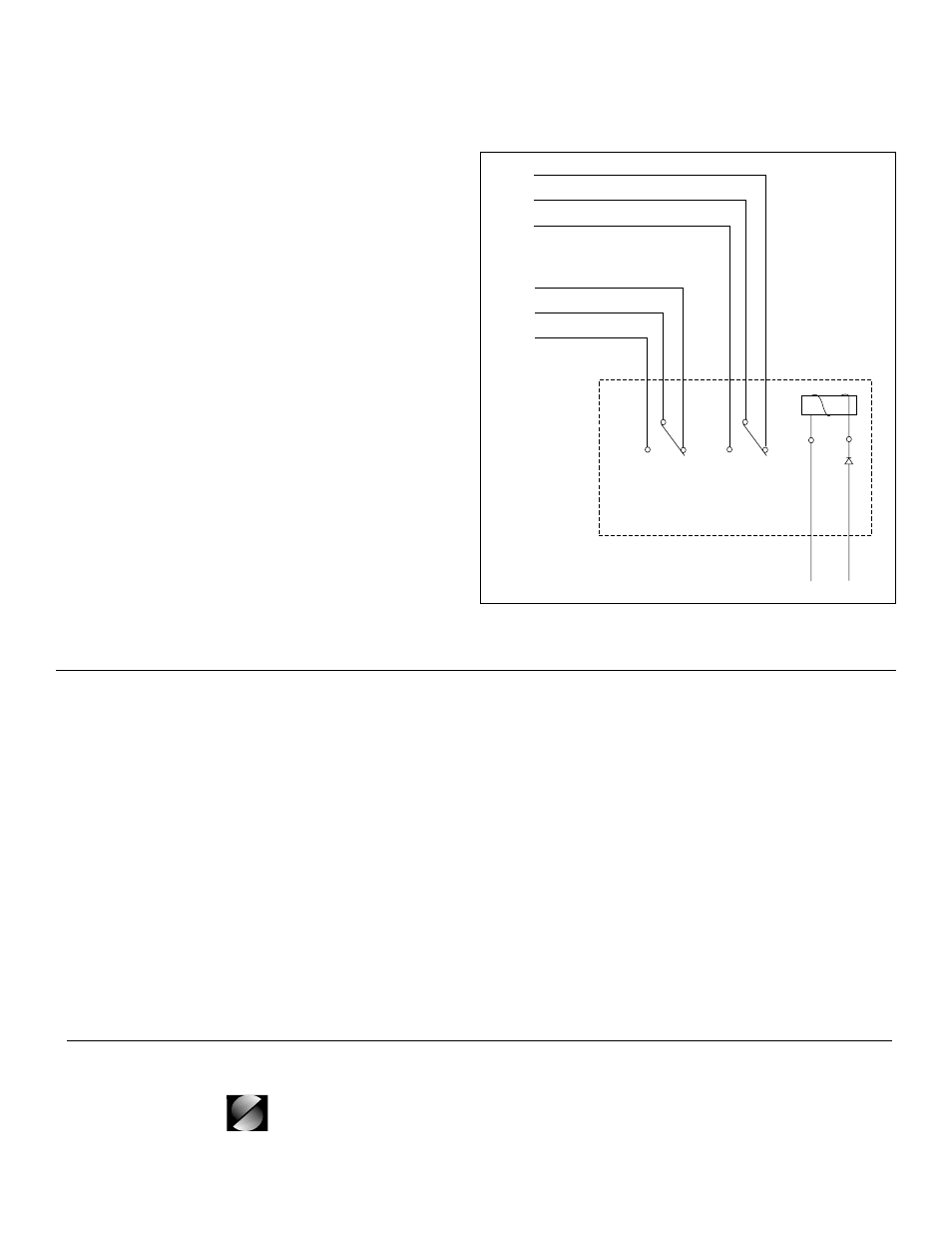

- W
hite
+
Gray
NC
NC
COM
NO
COM
NO
White-Red
Red
White-Blue
White-Black
Black
Blue
ESL 405-06
DPDT Relay
