STEP 3 - TESTING
NOTE: Be sure to test the sensor at least annually to ensure
proper operation. To verify sensor operation, lightly scrape the metal shaft of a
screwdriver (8" or larger) back and forth against the metal edge of
the enclosure (see Figure 3). The LED should light. Do not use the
side with sensor to test as it will be most sensitive. If the sensor
range is not sufficient, add another sensor (see Figure 4).

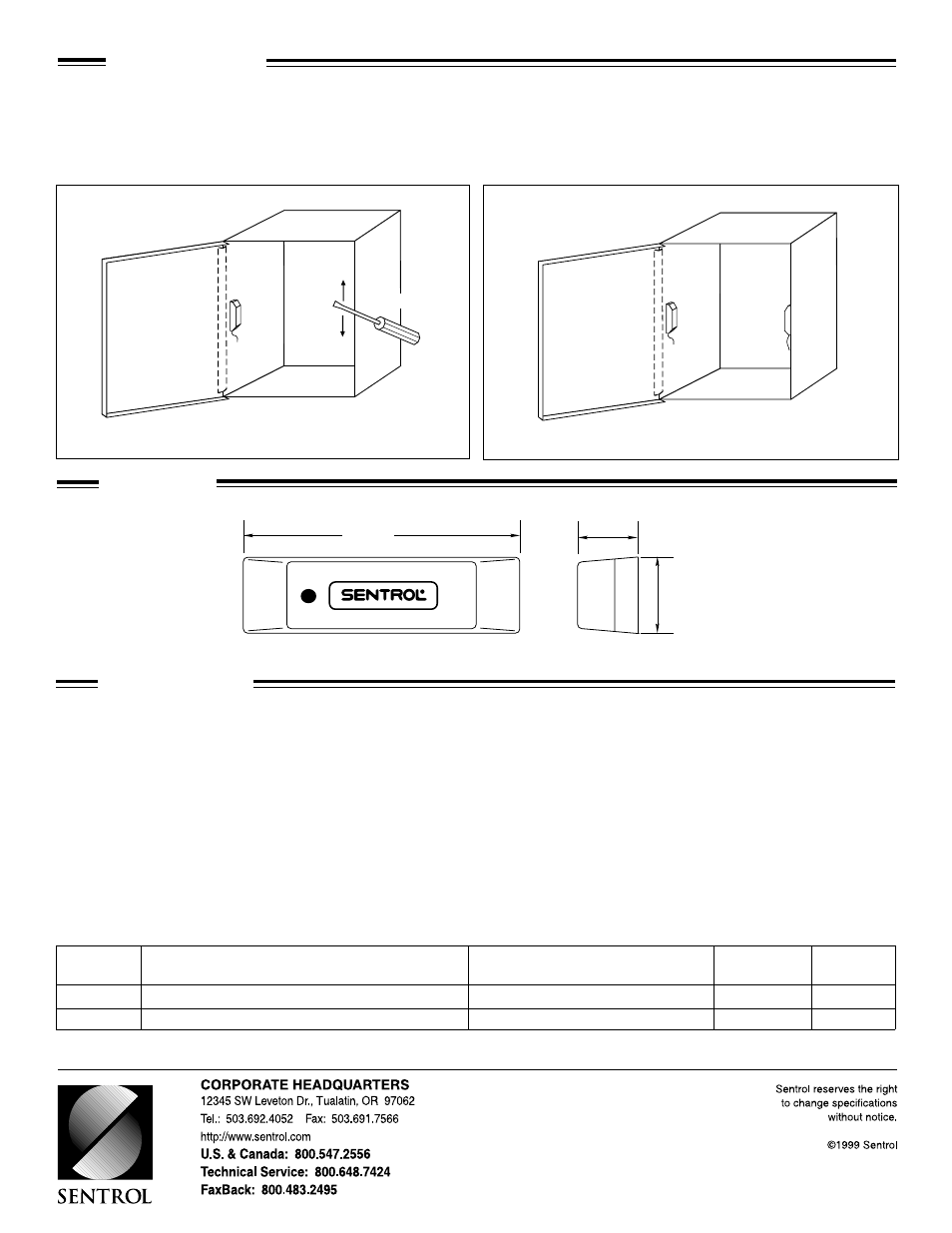

Figure 3. Vibration test Figure 4. Two sensor placement
Sensor
Screwdriver
Sensor
Sensor
DIMENSIONS
R
3.46"
8.8 cm
0.84"
2.1 cm
1.10"
2.8 cm
SPECIFICATIONS
ALL MODELS
Resistance: Normal ............................................................................................................................... <15 ohms (closed)
Alarm .......................................................................................................................... >1.0 megaohms (open)
Time Open on Alarm ........................................................................................................................................... 2-6 seconds
Operational Voltage (5422) ...................................................................................................................................... 9-24 VDC
Current Draw (5422) ..................................................................................................................................... 15 mA maximum
Number of Leads ...................................................................................................................................... 2 (5402) or 4 (5422)
Maximium Loop Rating ................................................................................................................................... 24 VDC, 50 mA
Wire Lead Size .................................................................................................................................................... 16-22 gauge
Mounting .................................................................................................................................................................. Tape pad
Dimensions ................................................................................................................................... 3.46" L x 1.1" W x 0.84" H
(8.8 cm x 2.8 cm x 2.1 cm)
ORDERING INFORMATION
G-3763-0499
1030900 Rev A
Model Description Loop Color Listing
Number Configuration
5402-W Lithium battery, 2-wire Closed loop, NC Grey UL/ULC
5422-W External power, 4-wire Closed loop, NC Grey UL/ULC
