IFS MC250-4T/XXX Series User Manual 5
LED Indicators
LED Color Function
P1 Green Lit: indicates that power 1 has power.
P2 Green Lit: indicates that power 2 has power.
FAULT Green Lit: indicates that either power 1 or power 2 has no power.
100 Green Fiber
Optical Lit: indicates that the Fiber port is successfully
connected to the network at 100Mbps.
10/100 Green Copper Lit: indicates that the Switch is successfully
connected to the network at 100Mbps.
Off: indicates that the Switch is
successfully connected to the network at
10Mbps.
Fiber
Optical LNK/ACT Green
Copper
Lit: indicates that the link through that port is
successfully established.
Blink: indicates that the Switch is actively
sending or receiving data over that port.

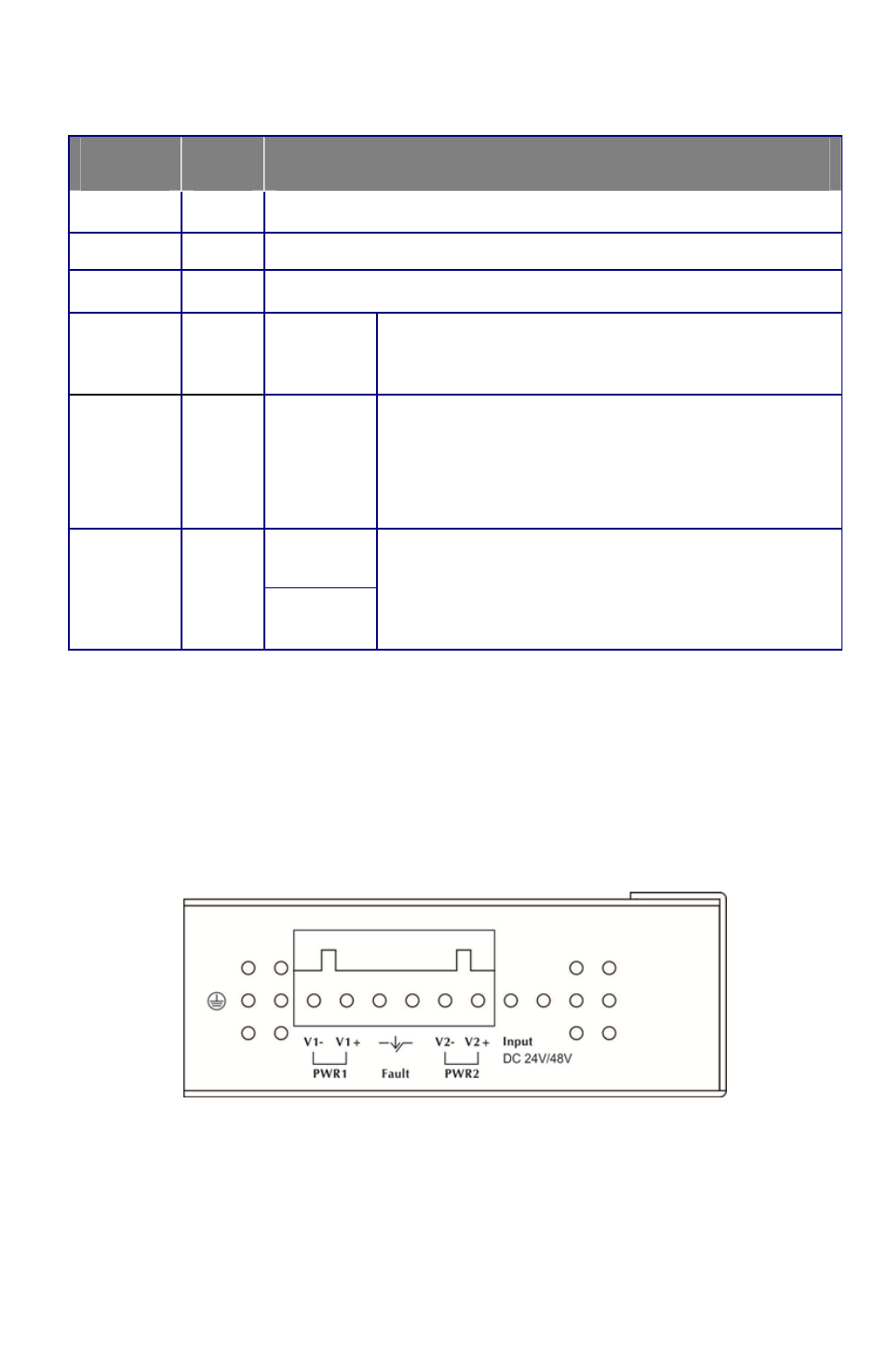

Converter Top Panel
The top panel of the Industrial Media Converter consists of
one terminal block connector with two DC power inputs.
Wiring the Power Inputs
The 6-contact terminal block connector on the top panel of the
MC250-4T is used for two DC redundant powers inputs.
Please follow the steps below to insert the power wires.
