Interlogix MC250-4T Series User Manual
Page 22
18 IFS MC250-4T/XXX Series User Manual

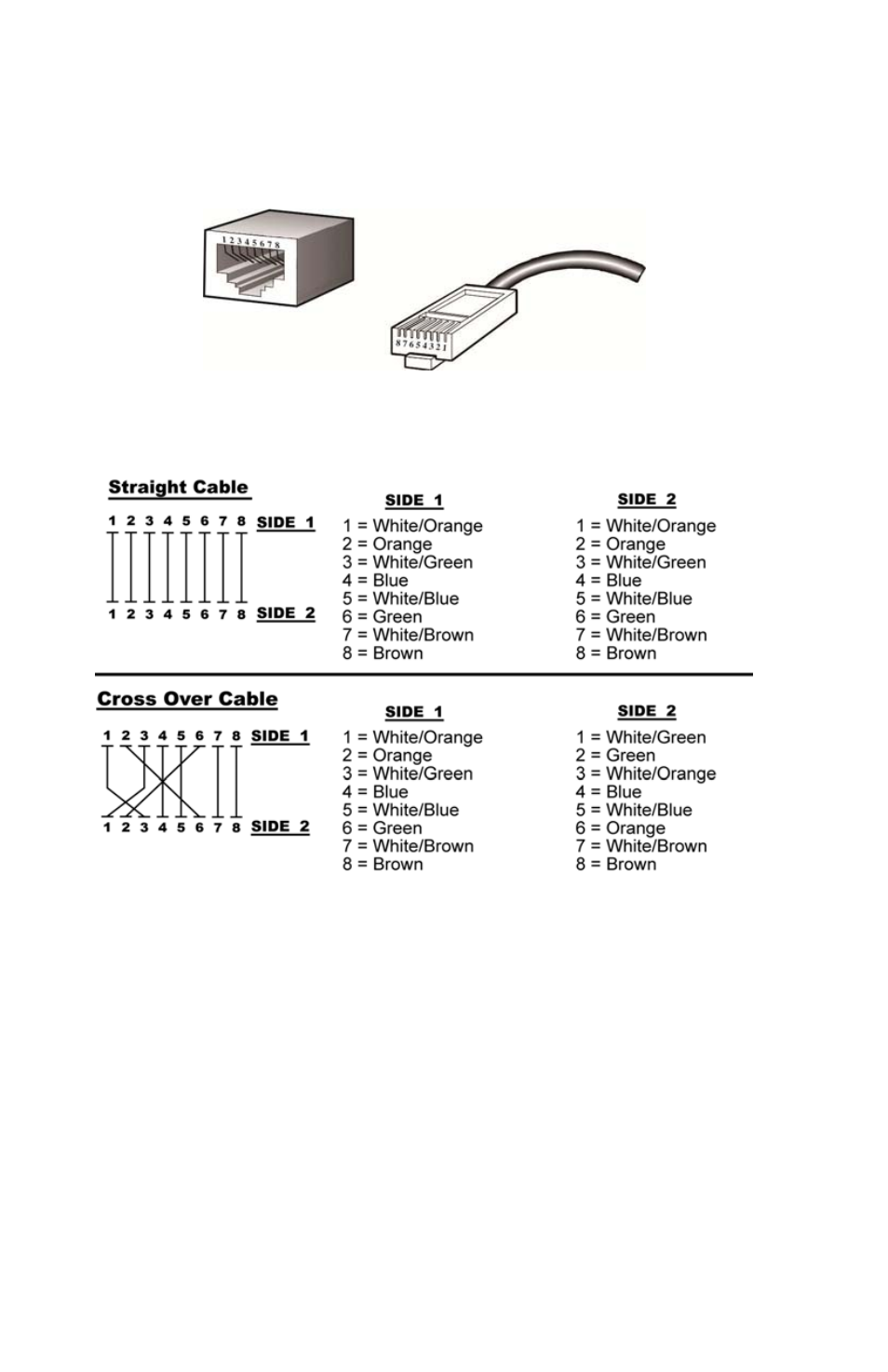

RJ45 Cable Drawing
The following figure shows the pin allocation and color of a
straight cable, and connection of a crossover cable.
Please make sure your connected cables are with same pin
assignment and color as above picture before deploying the
cables into your network.
